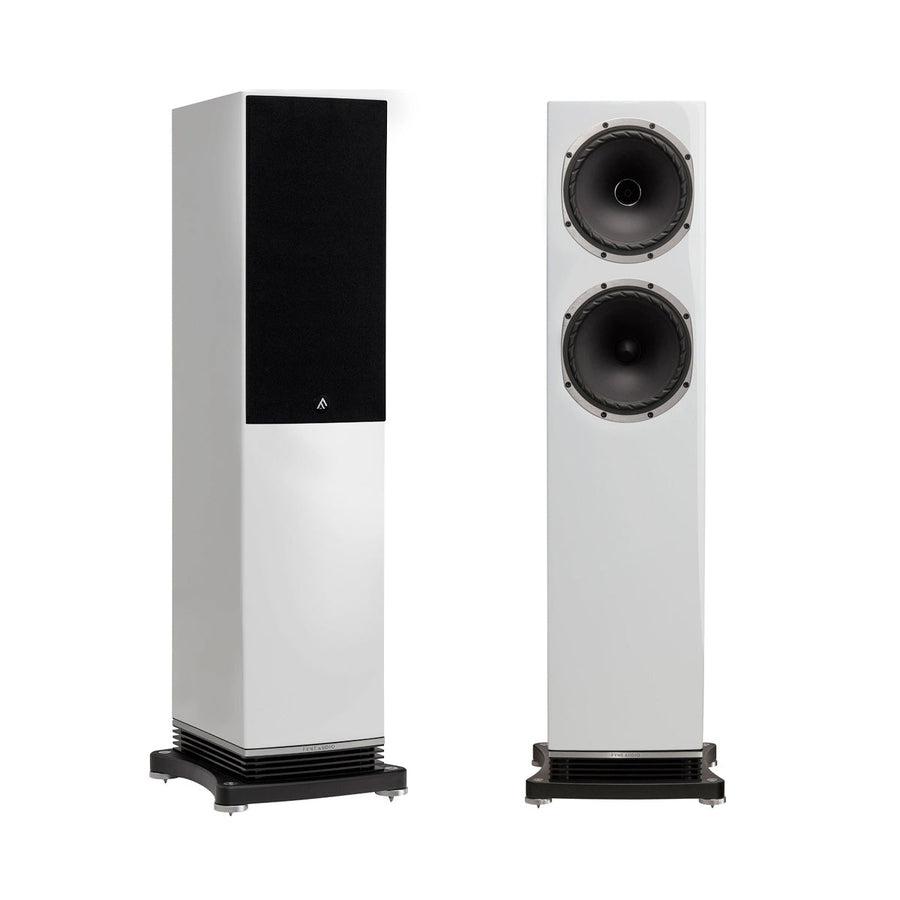

F502 FLOORSTANDING SPEAKERS
The F500 series is crafted around an IsoFlare™ point source drive unit; technology which our Technical Director, Dr. Paul Mills, is renowned for. Our technical team, responsible for the audio performance and mechanical build of this type of driver, have many decades of experience between them. Combining Fyne Audio’s IsoFlare™ driver into a rigid cabinet, with a cleverly designed porting system, ensures optimal in-room performance.
The F502 floorstanding loudspeaker delivers the series’ signature clarity and articulation along with visceral bass. The system will suit larger listening environments but is capable of revealing a huge dynamic range even when played at low volumes in smaller rooms. Isotropic energy radiation, with point source constant directivity, is provided by a 200mm (8″) proprietary IsoFlareTM driver for outstanding stereo imaging, even off axis. A matched 200mm (8″) bass driver is also fitted to the 64-litre cabinet ensuring a breath-taking musical or home theatre experience.
Ideal for medium to large-sized rooms, the F502 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room. The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.
Basstrax Port System
The bookshelf and floorstanding models employ an internal, downwards-firing port system. Below the port, a Tractrix profile diffuser (patent applied for) converts plain wave port energy to a spherical 360-degree wave front, integrating energy uniformly into the room. This clever design ensures that the loudspeaker is less critical of room positioning.
Low-loss, laminated core inductors and audiophile-grade polypropylene capacitors are used exclusively throughout the F500 series crossovers. The result is an exceptionally clean signal path and very low crossover losses, ensuring the very best in detail resolution and musical communication.
Home Theatre & Music
The F500 range is as impressive with movies as it is with music. FYNE AUDIO’s point source driver technology is ideal for articulating the finest of movie detail with pin-point accuracy. High efficiency and high-power handling means the F500 series delivers an incredibly dynamic and lifelike performance whether you are listening to DTS Master Audio or Dolby True HD.
|System Type||2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser. Twin cavity coupled reflex|
|Recommended amplifier power (Watt RMS)||40- 180|
|Continuous power handling (Watt RMS)||90|
|Sensitivity (2.83 Volt @ 1m)||91dB|
|Nominal impedance||8 Ohm|
|Frequency response (-6dB typical in room)||30Hz- 34kHz|
|Drive unit complement||1 x 200mm IsoFlareTM, multi-fibre bass/ mid, with 25mm titanium, dome compression tweeter. 1 x 200mm multi-fibre bass|
|Crossover frequency||250Hz & 1.7kHz|
|Crossover type||2nd order low pass, 1st order high pass|
|Dimensions - HxWxD||1114 x 250 x 380mm (43.9 x 9.8 x 15.0”)|
|Weight - Each||25.2kg (55.6lb)|
|Finishes||Dark Oak / Black Oak / Piano Gloss Black / Piano Gloss White|
