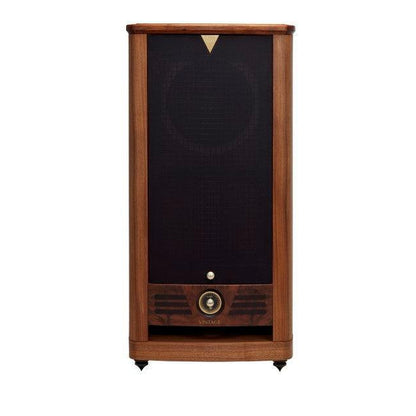

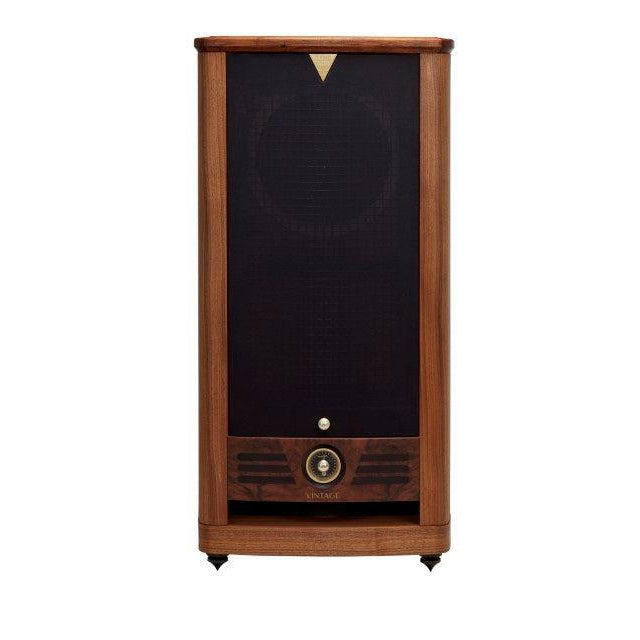

Bringing all the scale, power, and precision of the mighty Fyne Audio F1-12S to the Vintage series’ timeless traditional design, the Vintage Twelve is as stunning to observe as it is to hear. From the deeply grained natural wood veneers wrapping the birch ply cabinets to the burr walnut inlays and sumptuous grilles with machined metal trim, choosing between the F1-12S and the Vintage 12 is purely down to traditional or contemporary personal tastes. The large cabinet construction integrates a proven 300mm (12”) Iso Flare driver with Fyne Flute surround, Deep Cryogenically Treated crossovers, and Fyne’s unique front-mounted Presence control. The lossless, pure analogue dial is a bespoke work of art, perfectly weighted to exude the class and precision that defines the Vintage Series.
| System Type | 2 way, downwards firing port, with Bass Trax Tractrix diffuser |
| Recommended amplifier power (Watt RMS) | 20 - 350 |
| Peak power handling (Watt) | 700 |
| Continuous power handling (Watt RMS) | 175 |
| Sensitivity (2.83 Volt @ 1m) | 96dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 24Hz- 26kHz |
| Drive unit complement | 1 x 300mm Iso Flare point source driver, multi-fibre bass / midrange cone, with 75mm titanium alloy dome compression tweeter, neodymium magnet system |
| Crossover frequency | 750Hz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated |
| System adjustments | High frequency energy (750Hz - 26kHz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - H x W x D | *1102 x 572 x 591mm (43.4 x 22.5 x 23.3") |
| Weight - Each | 77.1kg |
| Finishes | Walnut |
| Cabinet Construction | Birch ply with oiled walnut and solid walnut trim, extensive internal bracing |
| *All dimensions are approximate |
