The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favourite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.
| Type Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity |
| Low Frequency Drivers JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames |
| High Frequency Drivers 2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns |
| Amplifier Power 300W Class D System Power, 150W RMS per Speaker, (25W per HF Compression Driver + 125W per LF Woofer) |
|
Audio Resolution Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks) Frequency Response 45 Hz – 25 kHz (-6 dB) |
|
Frequency Response 45 Hz – 25 kHz (-6 dB) Crossover Frequency 1,750 Hz |
| Dispersion 90° Horizontal x 60° Vertical (2kHz to 20kHz) |
| Sound Controls Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB) |
| Wireless Inputs Wi-Fi streaming, Bluetooth 5.1 |

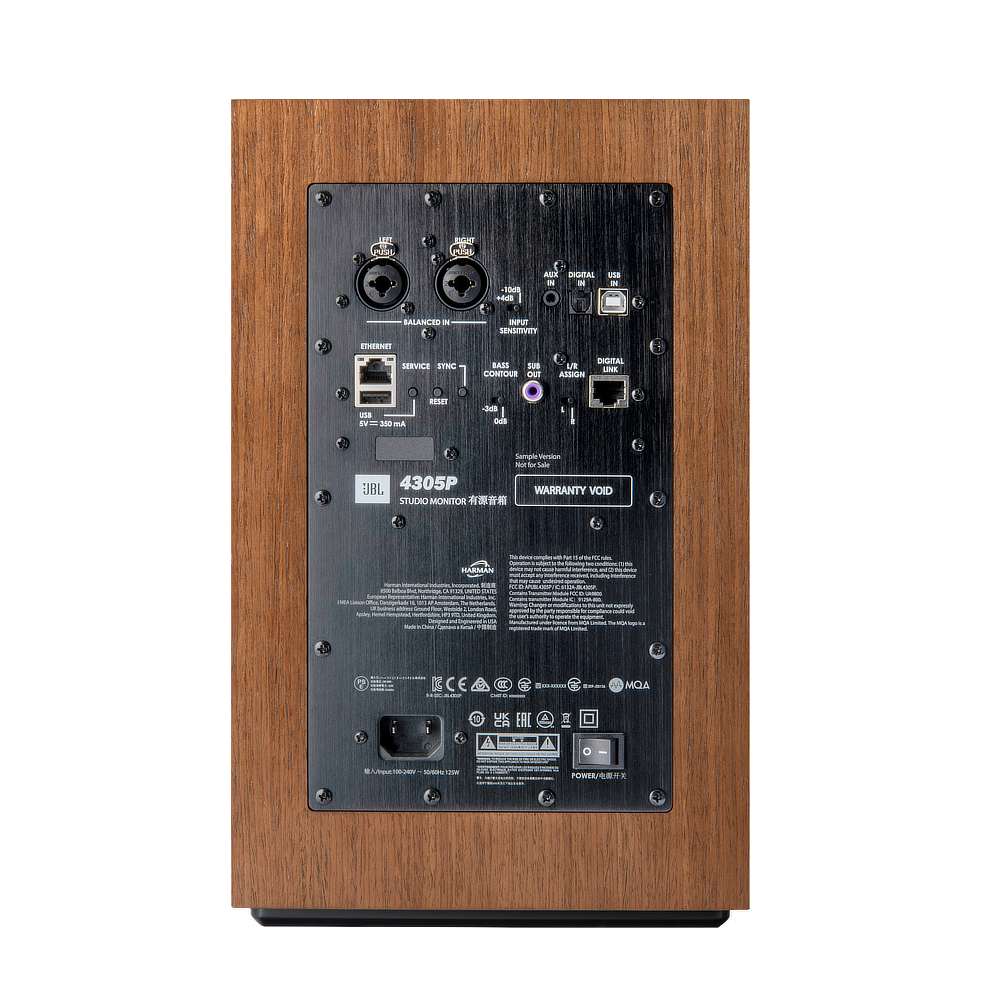

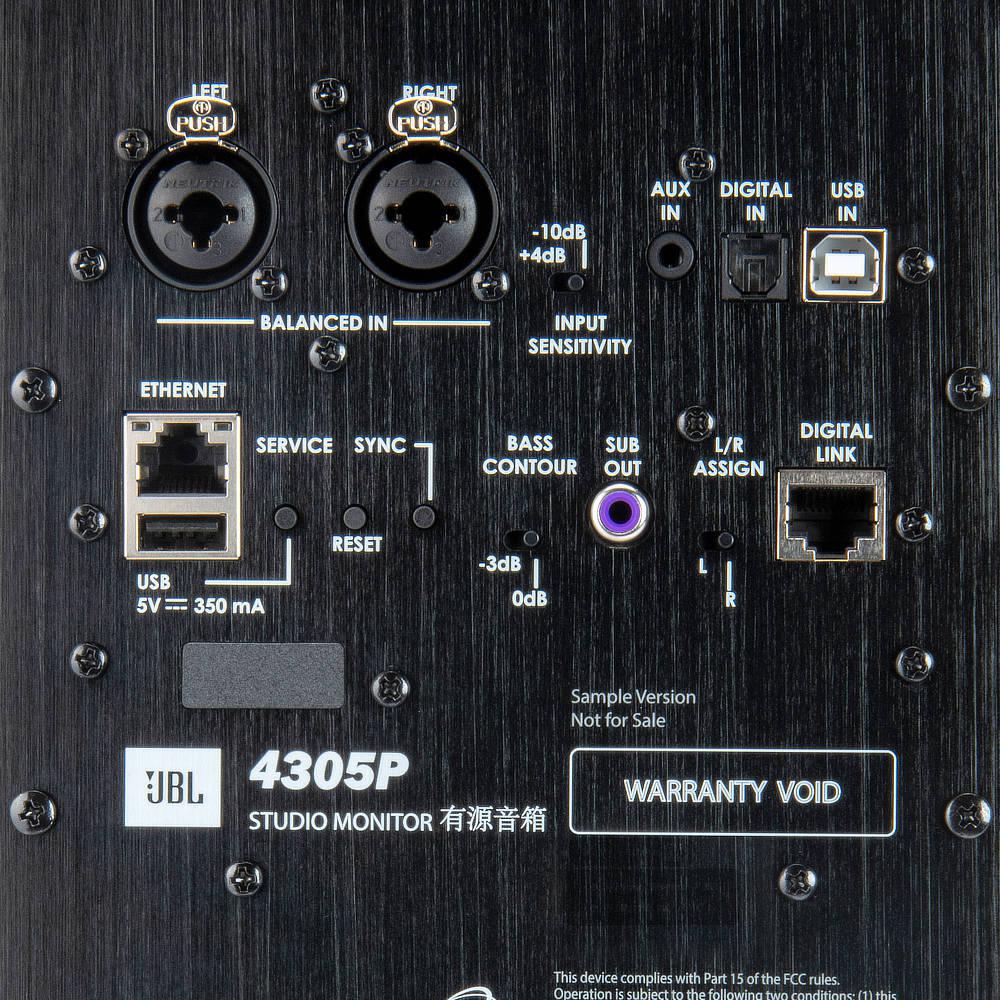

| Wired Inputs, Analog XLR/¼” Combo and 3.5mm stereo |
| Wired Inputs, Digital Asynchronous USB-B and Toslink/Optical |
| Supported Digital Audio Sample Rates (PCM 2CH) Streaming & Local Media – 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz |
| SPDIF – Up to 192kHz Bluetooth – Up to 48kHz |
| Music Formats Supported (Local Media) AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA |
| Subwoofer Output Autosensing w/ Auto-engage of 80Hz High Pass Filter |

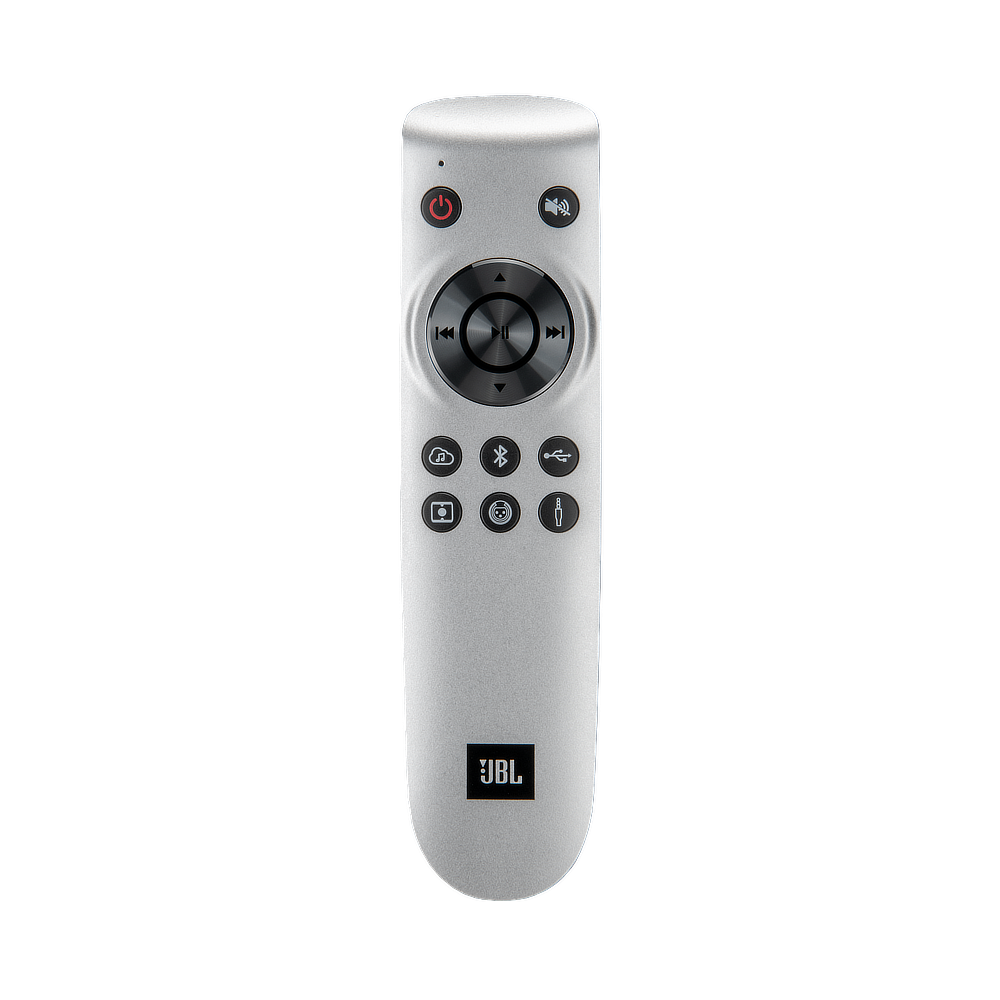

| Remote Control Type BTLE Wireless |
| Bluetooth Audio Version 5.1 |
| Bluetooth Profiles SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile) |
| Enclosure Bass-reflex Design with Dual Front-facing Ports ¾” MDF Finished in Satin Walnut or Black Walnut Furniture-Grade Wood Veneer |
| Grille Dark Blue (with Walnut Cabinet) or Black (with Black Cabinet) Acoustically Transparent Cloth Grille |
| Net Speaker Dimensions with grille 13.2” H x 8.3” W x 8.8” D (336mm x 210mm x 223.3mm) |
| Net Speaker Weight Primary – 15.0 lbs (6.8kg), Secondary – 14.1 lbs (6.4kg) |
| Shipping Units of Measure System Pairs |
| Gross Shipping Dimensions 23.5” L x 11.4” W x 18.0” H (597mm x 290mm x 458mm) |
| Gross Shipping Weight 36.5 lbs (16.6 kg) |
| AC Input Voltage 100 – 240 VAC (+/-10%), 50/60Hz |
