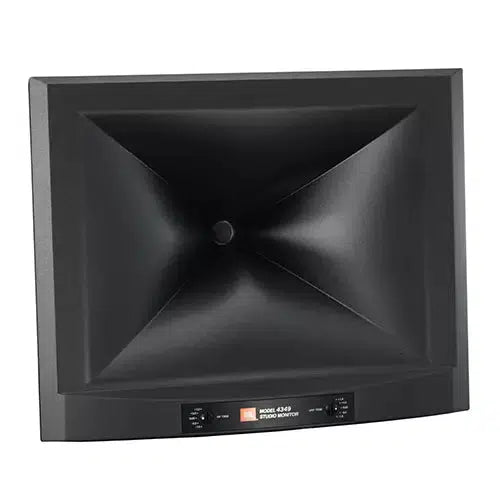

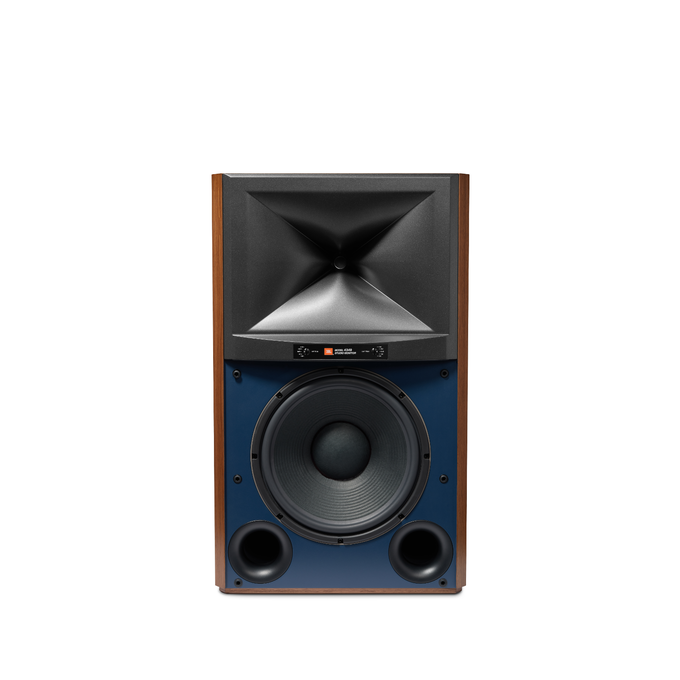

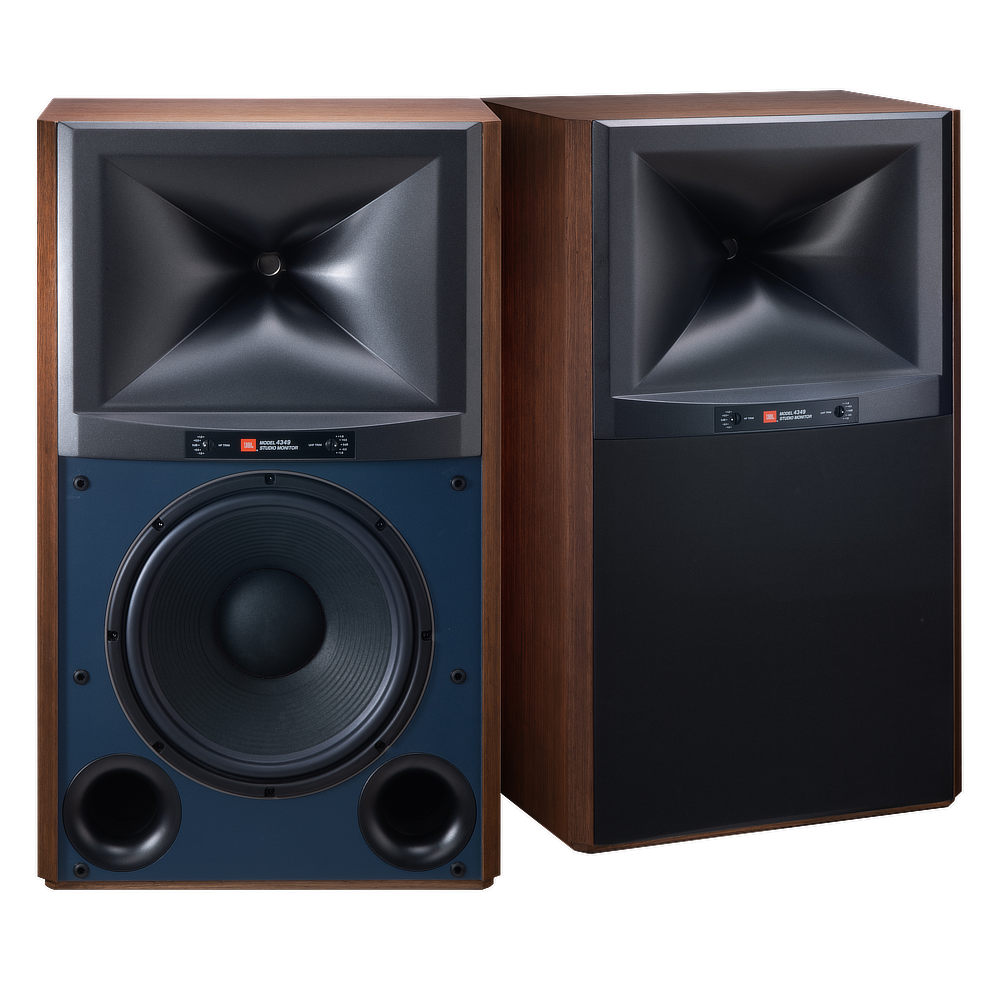

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4349 Studio Monitor is a showcase of patented JBL acoustics technologies. This compact, high-performance monitor loudspeaker features a 2-way design with patented High-Definition Imaging (HDITM) horn technology, the patented D2415K dual 1.5-inch (38mm) compression driver, and a 12-inch (300mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.
| High Frequency Transducer: Patented D2415K dual 1.5-inch (38mm) high-frequency compression driver |
| Low Frequency Transducer: 12-inch (300mm) cast frame, Pure-pulp cone woofer with 3-inch voice coil |
| Crossover Frequency: 1.5kHz |
| Controls: HF and UHF tone controls |
| Sensitivity (2.83V @ 1M): 91dB |
| Nominal Impedance: 8 Ohms |
| Recommended Amplifier Power: 200W |
| Frequency Response: 40Hz – 45kHz (-6dB) |
| Dimensions (H x W x D): 736.6 x 444.5 x 342.6mm |
| Net Weight: 37.7kg |
