JBL Synthesis S4700 15-inch (380mm) 3-way Floorstanding Loudspeaker
Pairs well with

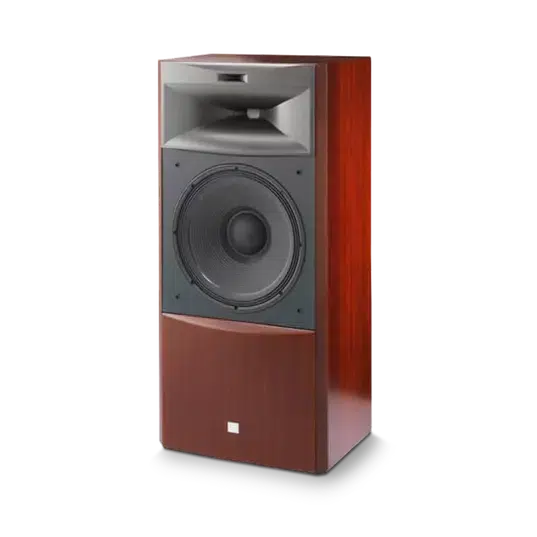

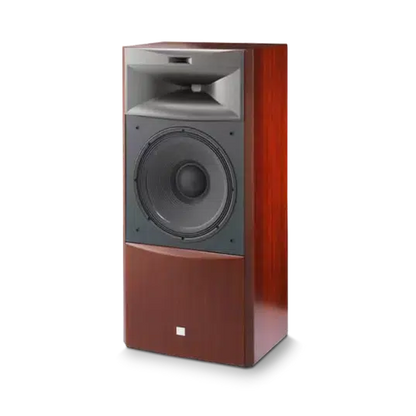

JBL Synthesis S4700 15-inch Floorstanding Loudspeaker
The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today. At its foundation, the S4700 uses an all-new cast-frame 15-inch woofer (2216Nd) with a powerful dual 3-inch voice coil and neodymium motor structure for outstanding balance with the horn-loaded compression drivers. Mid- and high-frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass® dual horn assembly. The 2-inch AquaPlas ™ coated titanium diaphragm compression driver (175Nd-3) is mated to a 90° x 60° Bi-Radial® horn and delivers mid- and high-frequencies with lifelike dynamics and startling realism while an ultra-high frequency 0.75-inch titanium diaphragm compression driver (138Nd) with a 60° x 30° Bi-Radial horn recreates critical air and spaciousness. Premium-quality network components and dual binding post inputs ensure audiophile performance in any application. The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port. The S4700 is intended for use in high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theatre installation.
S 4700 Highlights
- 15-inch pure pulp woofer with dual 3-inch voice coils, Neodymium motor structure and cast aluminium frame
- 2-inch Aqua-Plas-coated Titanium diaphragm high-frequency compression driver mated to a 90° x 60° Sonoglass Bi-Radial horn
- 0.75-inch Titanium diaphragm ultra-high-frequency compression driver mated to a 60° x 30° Sonoglass Bi-Radial horn

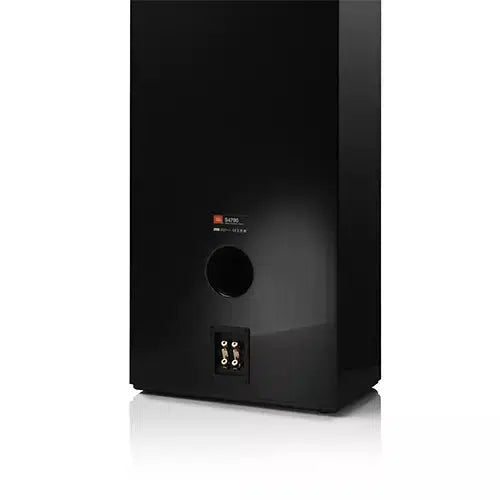

- Internally-braced, bass-reflex enclosure with a single rear-firing tuned port
- Dual binding post inputs for bi-wire or bi-amplified connections Furniture-grade cherry wood veneer finish
Specifications
| Crossover Frequencies: 800Hz, 12kHz |
| Sensitivity (2.83V @ 1M): 94dB |
| Nominal Impedance: 6 Ohm |
| Recommended Amplifier Power: 300W (Max) |
| Frequency Response: 38Hz – 40kHz (-6dB) |
| Dimensions (H x W x D): 1068 x 500 x 371mm |
| Net Weight: 54.5kg |
