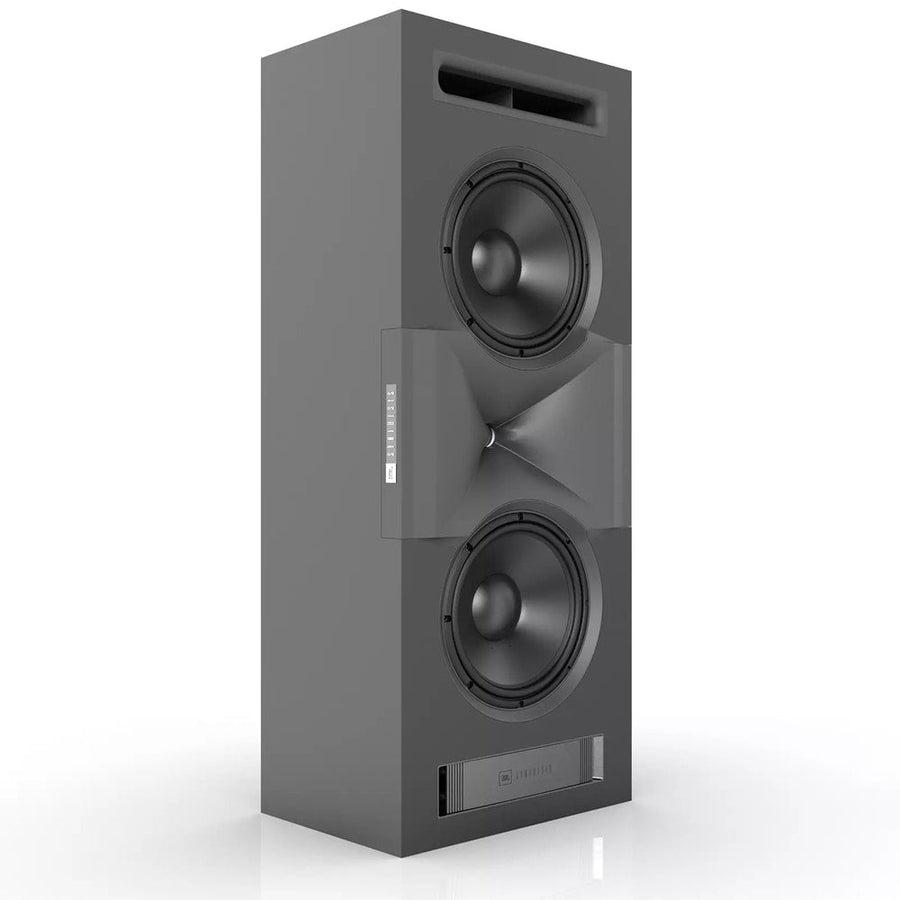

The SCL-1 is a custom in-room/built-in loudspeaker and is the flagship of the JBL Synthesis SCL loudspeaker range. It features JBL's patented D2430K dual 3-inch (75mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Dual 12-inch (300mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a patented Complementary Bass Alignment System (CBAS™) enclosure to provide high-output capability while delivering an easy load to the amplifier. A front-panel configuration panel allows for bi-wiring, bi-amplification, and crossover bypass for fully active operation with outboard digital crossovers. The SSW-1 delivers unparalleled performance behind projection screens and inside custom cabinetry and is ideal for use in large to extra-large rooms.
| Type | 2-Way In-room loudspeaker |
|---|---|
| Low Frequency Drivers | Dual 12-inch (300mm) Black Carbon Cellulose Composite Cone (C4) cast-frame woofers |
| High Frequency Driver | 3" (75mm) dual annular Teonex ring-diaphragm compression driver with dual neodymium motor structures mated to Sonoglass HDI horn |
| Recommended Amplifier Power (Full bandwidth) | 500 WRMS |
| Recommended Amplifier Power (80 Hz HPF) | 500 WRMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 94 dB/1W/1m |
| Frequency Response | 40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off |
| Crossover Frequency | 775 Hz |
| Coverage area, -6 dB @ 10 kHz | Approximately 120 degrees horizontal x 100 degrees vertical |
| Coverage area, -6 dB @ 20 kHz | Approximately 90 degrees horizontal x 70 degrees vertical |
| Enclosure Type | Complementary Bass Alignment System (CBAS™) |
| HF Level Controls | 3 Position - No grille, With grille, or With screen |
| Grille Dimensions | 47.98" H x 19" W x 0.787" D (1218.7mm x 482.6mm x 20mm) |
| Product Dimensions | 47.98" H x 19" W x 14.49" D (1218.7mm x 482.6mm x 368.1mm) |

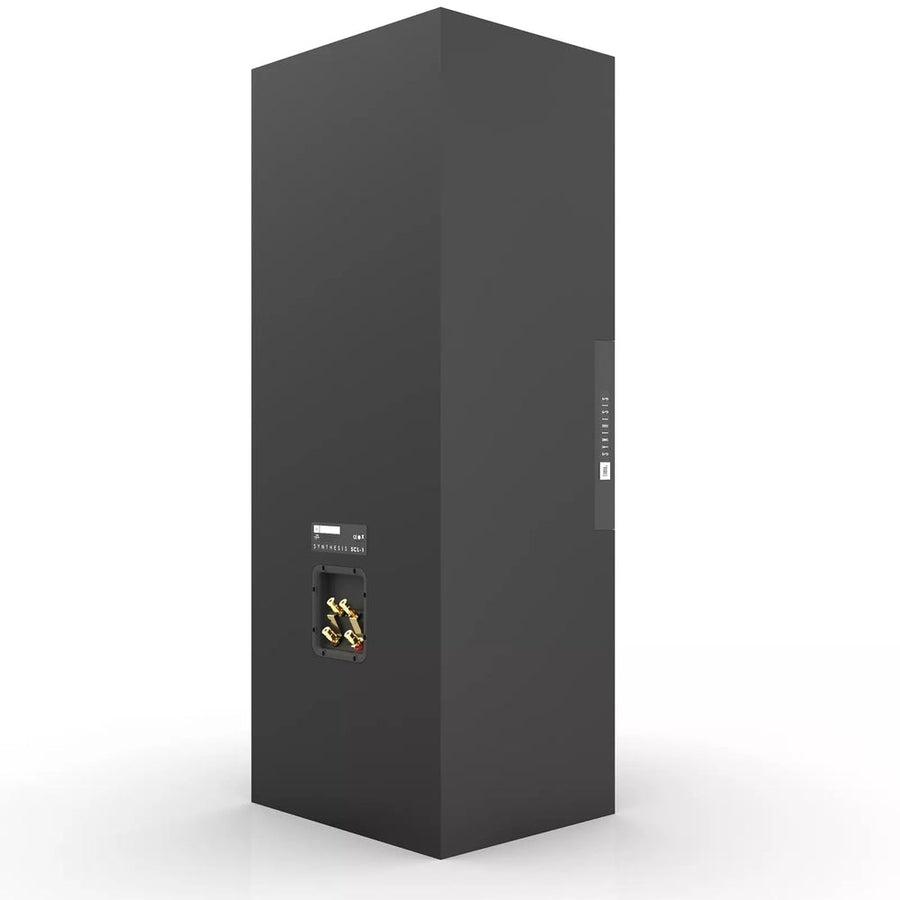

| Input Type | Dual sets of gold-plated binding posts |
| Product Weight | 177.5 lb. (80.5kg) |
| Shipping Weight | 306.5 lb. (139 kg) |
| Shipping Units of Measure | Each |
| Warranty | 5 Years |
