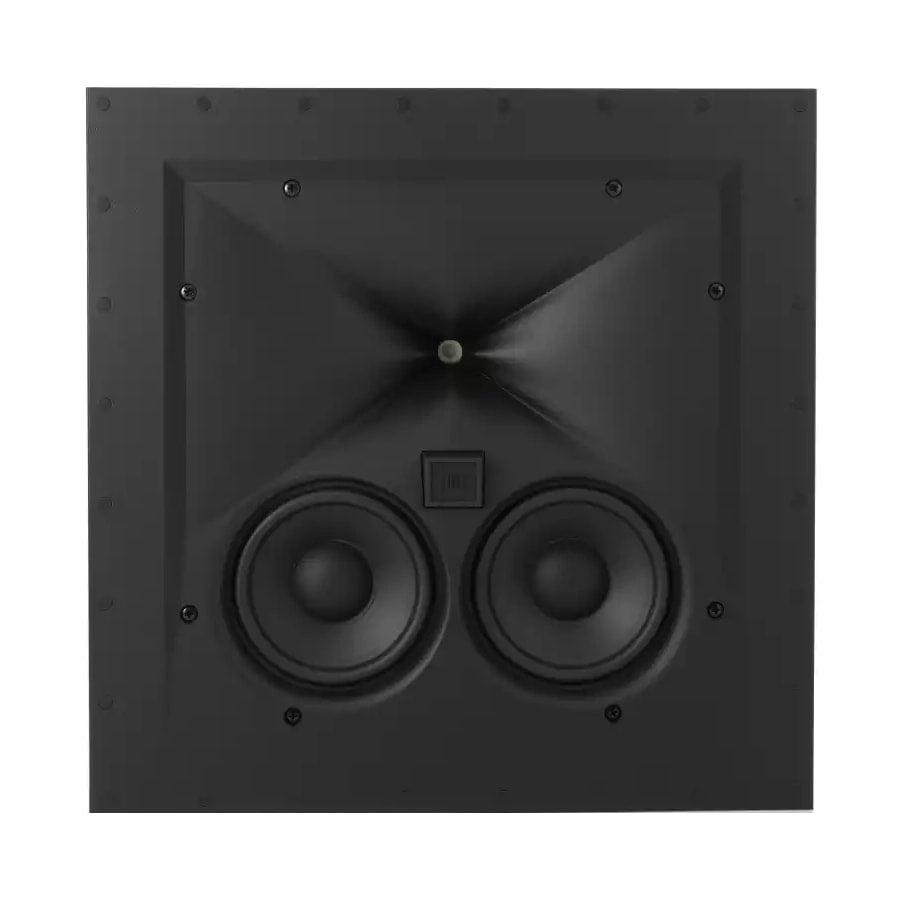

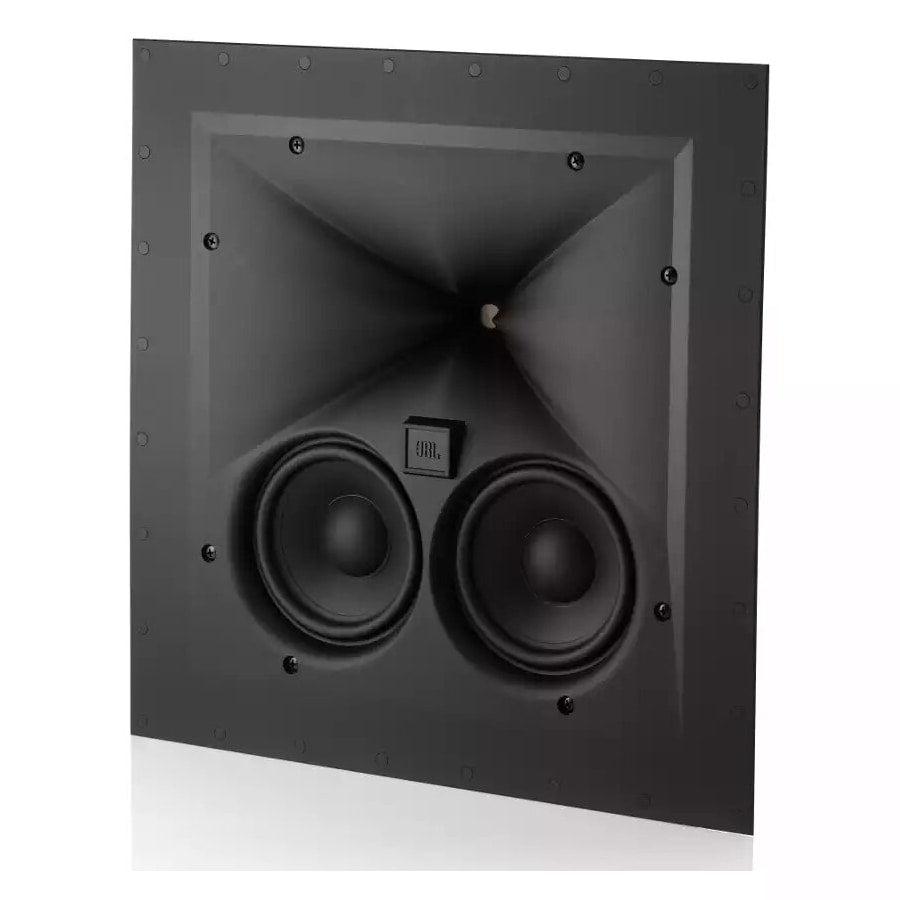

The JBL brand has become synonymous with the cinema experience. The SCL-3 was designed to continue this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The dual 5-¼" cast frame aluminium woofers are ideal for in-wall or ceiling mounting. Utilizing the D2-derived 1-inch / 25mm annular ring compression driver with Teonex® diaphragm and an advanced HDI geometry horn, the SCL-3 provides unparalleled performance compared to any in-wall loudspeaker in the market today.
| Speaker Type | Two-way In-Wall Loudspeaker |
|---|---|
| Low Frequency Transducer | Dual 5-¼” (130mm) cast-frame, advanced aluminium matrix cone woofers |
| Mid/High Frequency Transducer | D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver |
| Maximum Recommended Amplifier Power | 200 watts RMS |
| Frequency Response (-6dB on-axis) | 65 Hz – 33KHz |
| Coverage area (-6dB @ 20 KHz) | 90 x 60 deg, (-6dB @ 10 KHz) 110 x 90 deg (Hor. x Vert.) |
| Sensitivity (2.83V@1m) | 91dB |
| Nominal Impedance | 6 Ohm |
| Crossover Frequencies | 1.3 KHz |

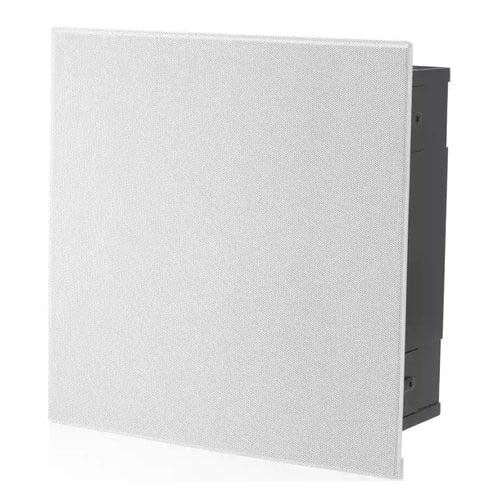

| Enclosure type | Sealed In-Wall Mount with included back box |
| Inputs | Dual Gold-plated Five-way Binding Posts |
| Dimensions (H x W x D) | 16.46" x 16.46" x 6.01" (418mm x 418mm x 153mm) |
| Weight | 24.3 lb (11.02 kg) |
| Finishes | Matte Black |
