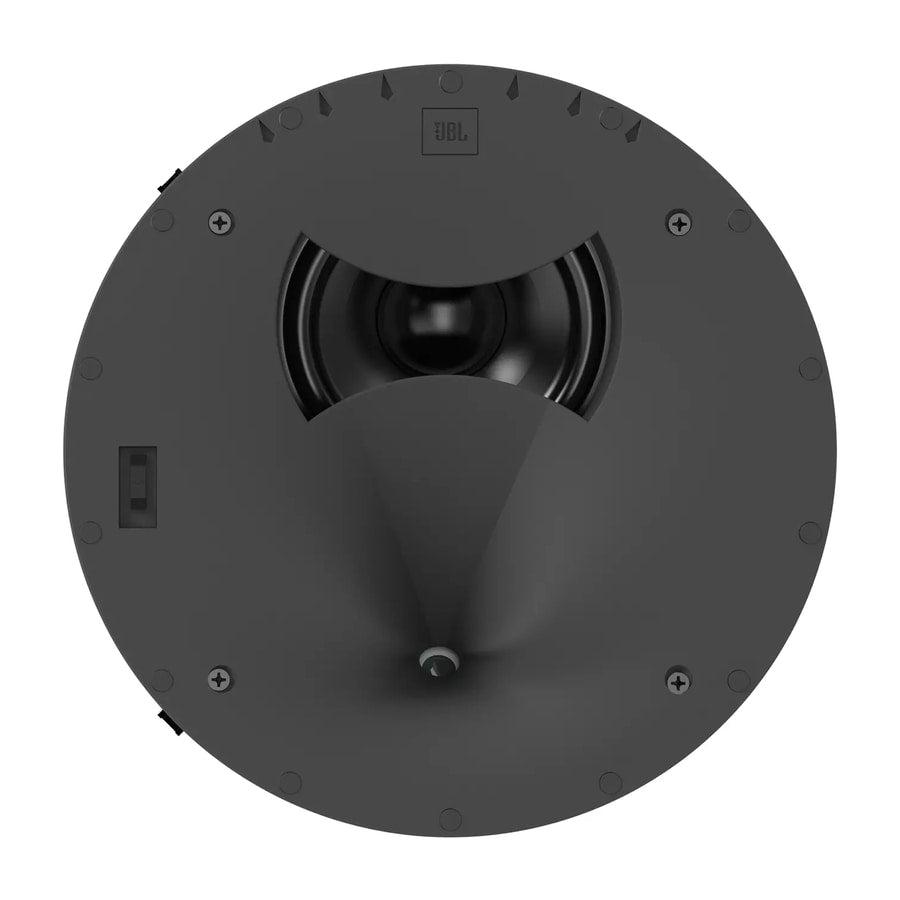

JBL Synthesis SCL-8 In-Ceiling Speaker

Brand: JBL

No reviews

Regular price$1,899.00
/
10 interest free payments from $189.90 with


The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker. The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminium Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.

SCL-8 Highlights

  • 2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels
  • 1-inch 2410H-2 compression driver tweeter mated to a JBL patented offset High-Definition Imaging (HDI™) horn assembly
  • 5.25-inch (130mm) Advanced Aluminium Matrix cone, cast frame woofer with acoustic aperture waveguide baffle
  • Patented Cat Claw installation mechanism
  • Gold plated, spring-loaded binding posts
  • Includes paintable round and square zero-bezel, magnetically attached grilles

General Specifications

Type 2-Way In-ceiling loudspeaker
Low Frequency Driver 5.25” (130 mm) advanced Aluminium Matrix cone cast-frame woofer (JW130Al-4)
High Frequency Driver 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power 25 - 100 W RMS
Impedance 4 Ohm
Loudspeaker Sensitivity 85 dB/2.83V/1m (2pi anechoic)
Frequency Response 55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency 1.8 kHz
High Frequency Coverage Angle (-6dB) 60° Vertical (Up 30°, Down 30°, from 45° Vertical Centre line), 120° Horizontal, from 2k Hz to 10k Hz.
Enclosure Type Open back
Controls Boundary Proximity Control
Warranty 5 Years
Shipping Units of Measure Each
Grill Dimensions (Square) 10.77” (273 mm) x 10.77” (273 mm)
Grille Dimensions (Round) 10.77” (273 mm) Diameter
Product Dimensions (with grille) 10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm)
Cut-out Diameter 9.72” (247 mm)
Accessory Rough-in Bracket CB8
Mounting Depth 4.54” (115 mm)
Input Type Gold-plated spring-loaded binding posts
Product Weight 7.8 lb. (3.5 kg)
Shipping Weight 10.6 lb. (4.8 kg)
