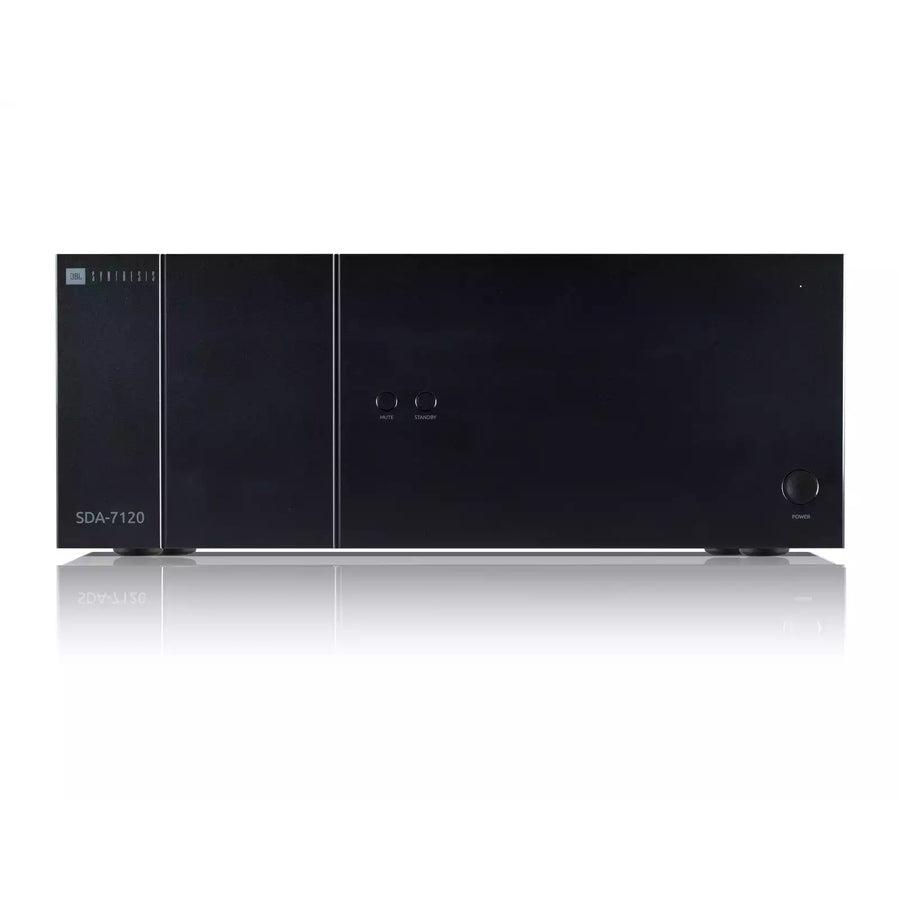

JBL Synthesis SDA-7120 AV 7-channel Class G Power Amplifier

Brand: JBL

No reviews

Regular price$8,999.00
/
10 interest free payments from $899.90 with


The SDA-7120 is a high-performance 7-channel Class G power amplifier designed to deliver audiophile performance and incredibly powerful dynamics. Each channel is rated to deliver 100W into 8 ohms and 140W into 4 ohms with all channels driven. With only two channels driven, 225W of power is on tap with a 4 ohm load. This combination of high power and low distortion make this the ideal solution for LCR and surround loudspeakers in JBL Synthesis immersive audio systems. DANTE digital audio networking allows connection of the SDA-7120 to a compatible DANTE-enabled surround processor via just a single Ethernet cable and full external control allows for complete and easy system integration.

Powerful and Dynamic

Class G amplification offers the best characteristics Class A and Class A/B designs. Conventional Class A designs do not suffer from crossover distortion and is exceptionally transparent offering a high level of realism. However, a solely Class A design is extremely inefficient as it will always be drawing full power even with no signal to amplify, for this reason, Class A amplifiers usually offer lower power output. Class AB design is much more common and far more efficient than pure Class A, but it suffers from crossover distortion at low levels which clouds spatial details and transparency.

Class G offers greater efficiency and transparency, with less wasted heat energy than class A. Like a hybrid car engine, Class G implements multiple power supplies rather than just a single supply. The first power supply is of lower power and within this region, the SDA-7120 runs in pure Class A, which has no crossover distortion. If a dynamic signal is received that goes beyond the capability of this first power supply, the secondary supply is gradually brought in up to full rated power output as required. This gives a very efficient design as additional power is only used when required. Modern high-speed silicon allows us the make this switch at speeds well beyond the audio bandwidth.

Flexible

The SDA-7120 features Dante™ audio networking so you can connect with the JBL Synthesis SDR-35 AVR and SDP-55 immersive surround sound processor as well as other Dante-enabled products over Ethernet-based networks via a Cat5e or Cat 6 cable. Dante audio networking uses a standard IP network to transmit high-quality, uncompressed multi-channel audio with near-zero latency. It's the most flexible, reliable, and easy-to-manage audio networking solution available, and provides the lowest cost of ownership by dramatically reducing cabling and labour costs as well as eliminating issues with interference, crosstalk and signal degradation associated with analogue cable. The SDA-7120 is capable of receiving high-resolution audio via Dante. Signal routing and system configuration with Dante is fast, simple, and incredibly flexible. Once the network is configured, signal routing and other system settings are stored safely in the Dante devices themselves, so they are automatically restored if a device is power-cycled.

SDA-7120 Highlights

  • Dynamic Class G amplification
  • Dante™ audio networking
  • 100 watts @8 Ohms with seven channels driven

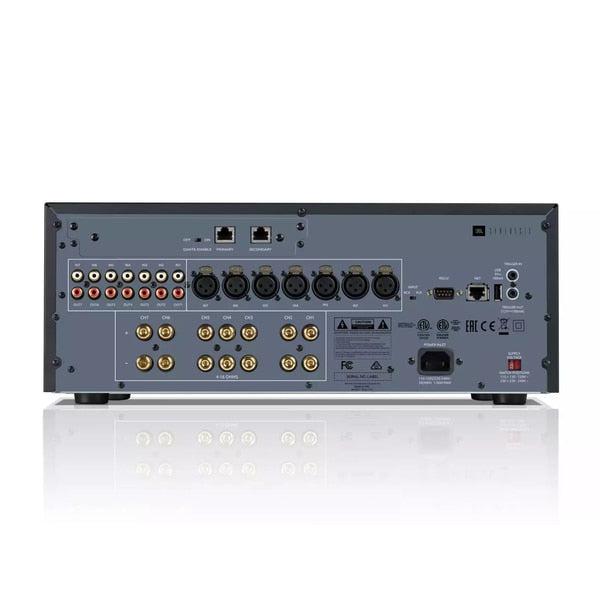

  • Balanced and single ended inputs
  • Trigger in and out
  • Ethernet, RS232 control

General Specifications

Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz: 140W / 100W
Five channels driven, 4Ω / 8Ω, 1kHz: 175W / 110W
Two channels driven, 4Ω / 8Ω, 1kHz: 225W / 140W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Input sensitivity 50W / 8Ω: 800mV RMS (RCA Type), 1.6V RMS (XLR Type)
Signal/Noise ratio (A-wtd) 50W / 8Ω: 105dB
Input impedance: 10kΩ
Frequency response: 20 - 20kHz +/-0.05dB
Mains voltage: 110–120V or 220–240V, 50–60Hz
Maximum power consumption: 1.5kW
Dimensions W x H x D (including feet, control knob and speaker terminals): 433 x 425 x 177mm
Weight (net): 18kg
Weight (gross): 19.7kg

Audio Specifications

Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz 140W / 100W
Five channels driven, 4Ω / 8Ω, 1kHz 175W / 110W
Two channels driven, 4Ω / 8Ω, 1kHz 225W / 140W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
Input sensitivity 50W / 8Ω 800mV RMS (RCA Type), 1.6V RMS (XLR Type)
Signal/Noise ratio (A-wtd) 50W / 8Ω 105dB
Input impedance 10kΩ
Frequency response 20 - 20kHz +/-0.05dB
Mains voltage 110–120V or 220–240V, 50–60Hz
Maximum power consumption 1.5kW
Dimensions W x H x D (including feet, control knob and speaker terminals) 433 x 425 x 177mm
Weight (net) 18kg
Weight (gross) 19.7kg
