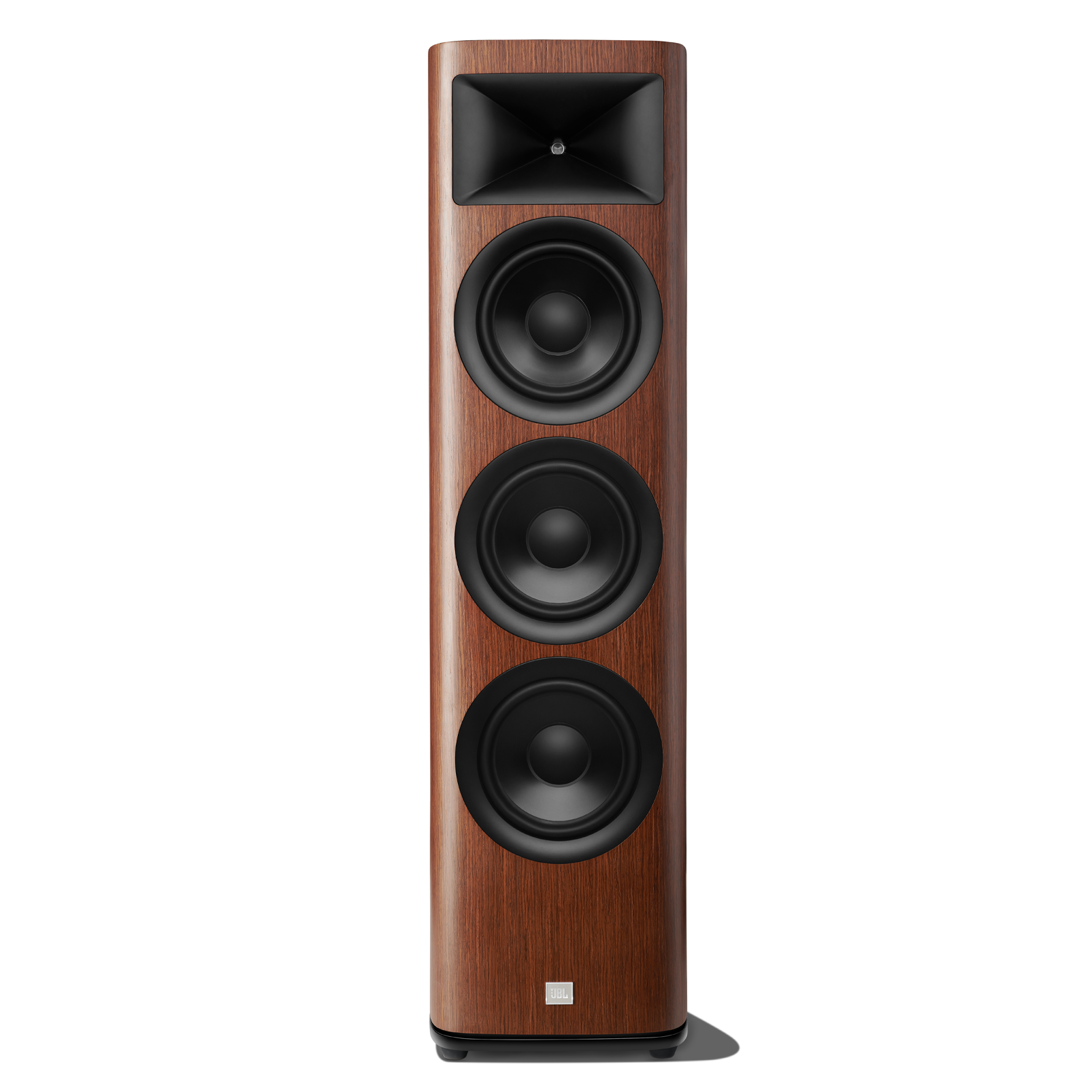

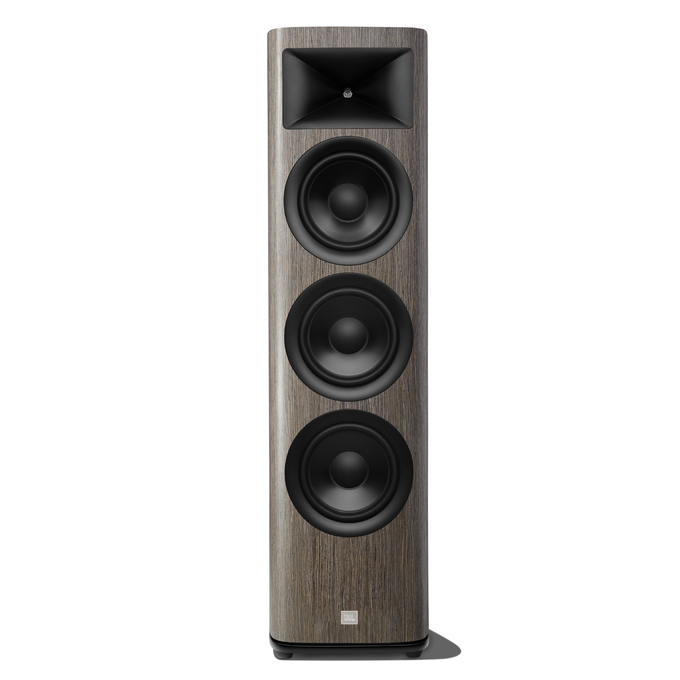

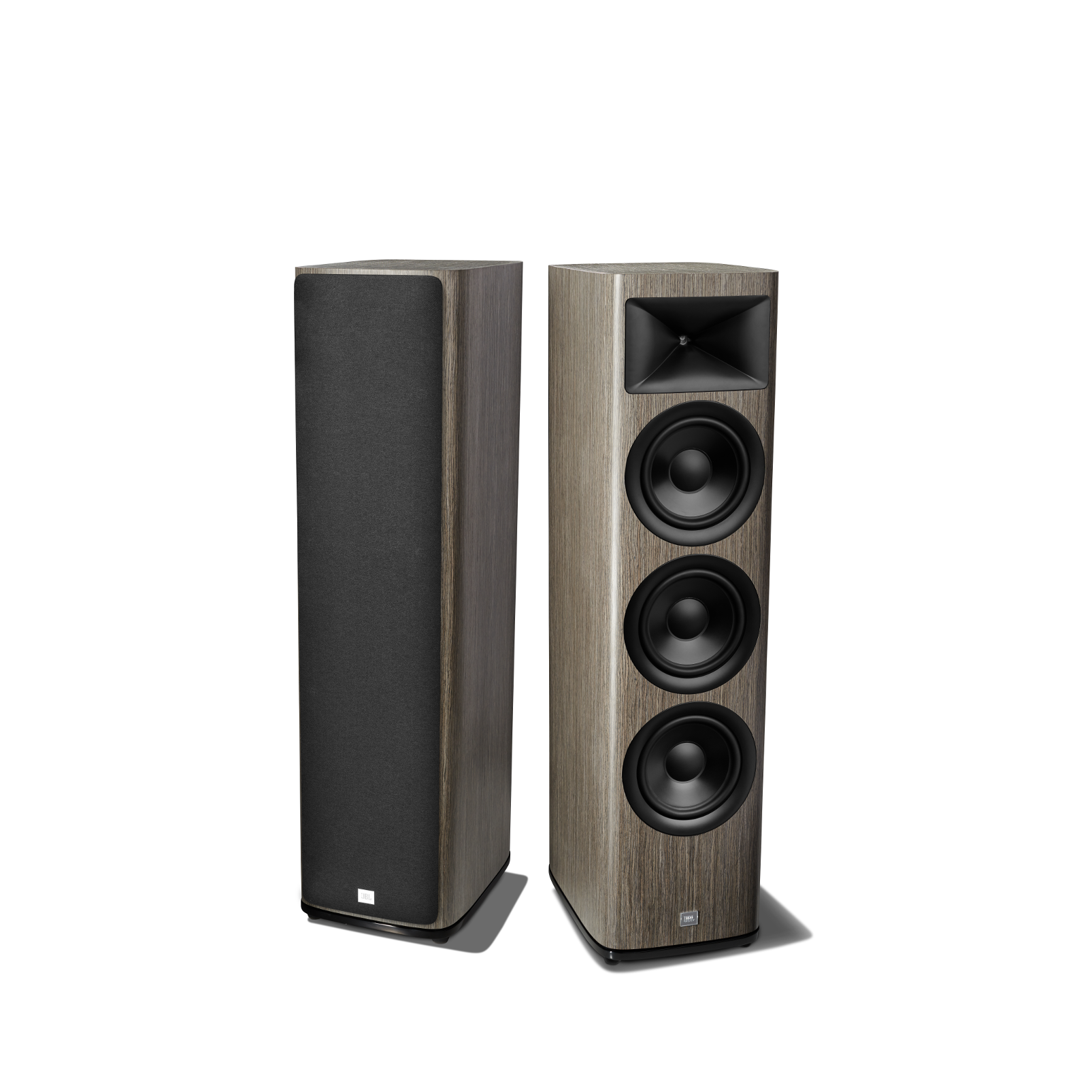

JBL HDI 3800 8” Floor Standing Loudspeaker
The HDI-3800 is the flagship of the JBL HDI Series. This floor standing loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminium Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

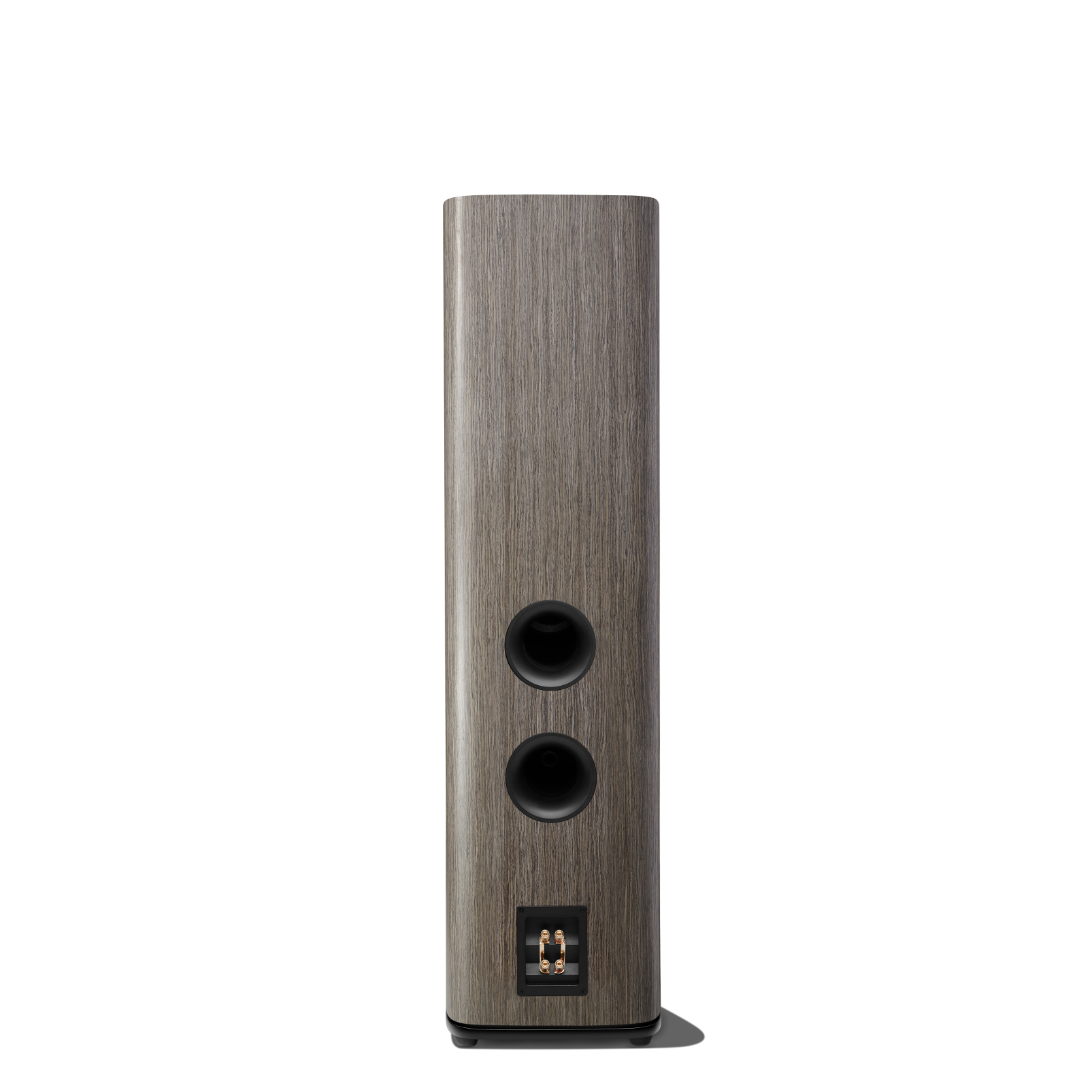

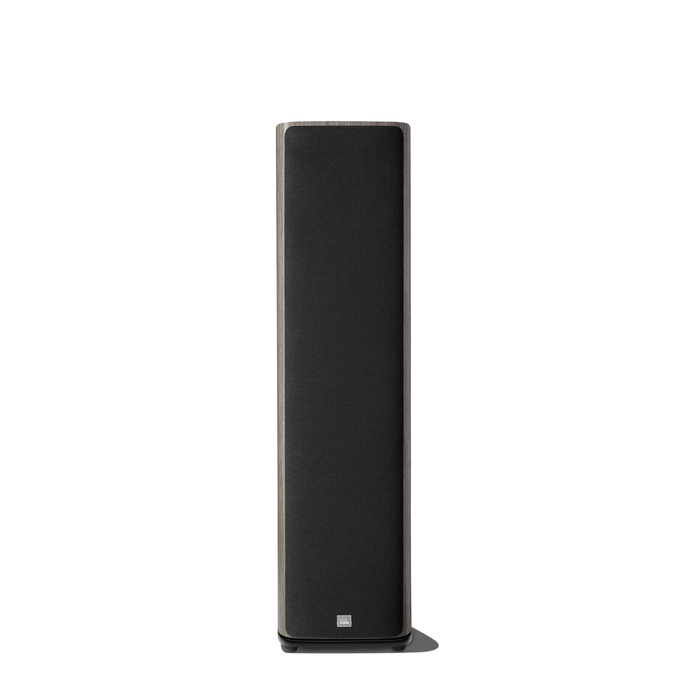

The HDI-3800 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Grey Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance.
HDI 3800 Highlights
- Patented HDITM (High-Definition Imaging) waveguide technology
- Patented 2410H-2 high-frequency compression driver
- 8-inch (200mm) cast frame, Advanced Aluminium Matrix cone woofers with 1.5-inch voice coils
- Contemporary design with premium finishes including high-gloss Black, satin Grey Oak wood veneer, and satin Walnut wood veneer.
Specifications
Enclosure TypeBass-reflex design with rear-firing port |
High Frequency Transducer1-inch (25mm) Teonex compression driver |
Low / Mid Frequency Transducers Three 8-inch (200mm) black Advanced Aluminium Matrix cone, cast frame woofers |
Crossover Frequency 800Hz, 1800Hz |
Sensitivity (2.83V @ 1M)92dB |
Nominal Impedance 4 Ohm |
Recommended Amplifier Power25W – 300W |
Frequency Response37Hz – 30kHz (-6dB) |
Dimensions (H x W x D)43.33 x 11.81 x 16.45” (1100.5 x 300.0 x 417.8mm) |
Net Weight83.78 lbs (38.00kg) |
