NAD M10v2 Master Series Network Audio Streamer & Amplifier

The NAD M10 V2 Streaming Amplifier is a high-quality device that allows for easy control of music playback through various methods, including voice commands and touchscreen controls. It also offers advanced features such as Dolby Digital surround sound decoding and Dirac Live Room Correction.

NAD M10v2 Streaming Amplifier

Like the original M10, the M10 V2 exemplifies the “Just Add Speakers” revolution in hi-fi. But it takes that revolution a giant step further. Along with audiophile-grade speaker terminals, it has two independent subwoofer jacks, whose output settings are adjustable from the BluOS app. The M10 V2 adds Dolby Digital surround-sound decoding. Home-theatre fans can configure a pair of BluOS surround-enabled wireless speakers or amplifiers to play the surround channels, while the main speakers handle the front channels, so that the M10 V2 serves as the hub of a 4.1- or 4.2-channel Dolby Digital surround setup. The M10 V2 transmits the rear channels wirelessly, with very low latency, so you don’t have to run wires around your room to connect the surround speakers.

Complete Control

There are many ways to operate the M10 V2. Use the BluOS app on a smartphone, tablet, or computer to cue up music from your favourite streaming service, or music stored on USB and network drives. Choose some songs from the Spotify or Tidal app on your computer or smart device, then shift playback to the M10 V2. Stream music to the M10 V2 from an iPhone, iPad, or iTunes library via AirPlay 2. Select music by voice using the Amazon Alexa, Apple Siri, or Google Assistant voice protocol. The M10 V2 is Roon Ready, so you can stream music from a Roon Core server. The M10 V2 can be integrated into Apple, Control4, Crestron, Lutron, and other home-automation systems, so you can control music playback, along with other home systems like lighting, shades, HVAC, and security. Use the supplied remote control to adjust volume, skip tracks, and activate preset commands. Or choose tracks, select sources, and adjust volume and other settings from the M10 V2’s touchscreen. In addition, the M10 V2 can learn commands from your favourite IR remote control.

Features & Details

BluOS Streaming Amplifier

4.0, 4.1, and 4.2 channel surround options by adding BluOS Enabled players like the PULSE FLEX (wireless) and PULSE SUB (wired) by Bluesound
Hybrid Digital nCore Amplifier with updated gain algorithms
Continuous Power: 100W into 8/4 Ohms
Dynamic Power: 160W into 8 Ohms 300W into 4 Ohms
32-bit/384kHz ESS Sabre DAC
Dirac Live Room Correction

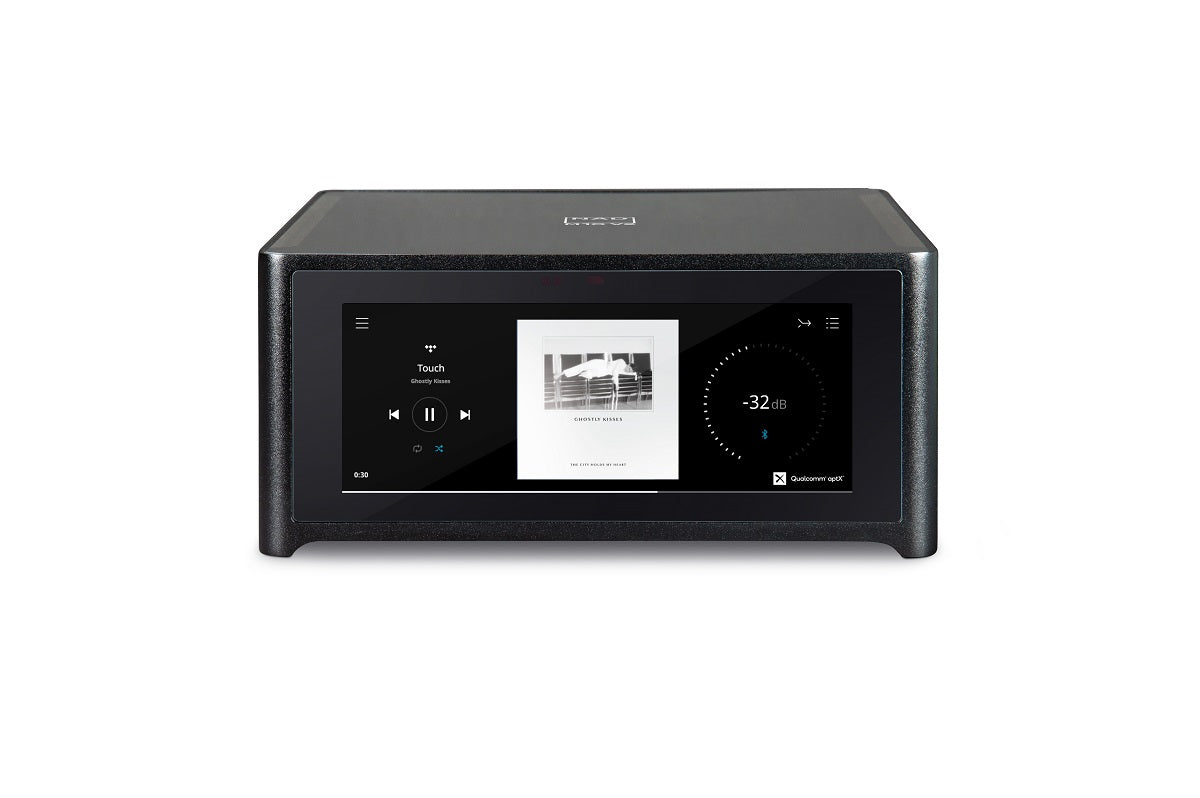

7″ IPS colour LCD touchscreen
BluOS multi-room compatible
AirPlay 2 integration, with support for Siri Voice Assistant
Amazon Alexa & Google Assistant voice control skills
Roon Ready
Spotify Connect and Tidal Connect
Gigabit Ethernet
Two-way Qualcomm aptX HD Bluetooth
NFC Bluetooth pairing for compatible smart devices

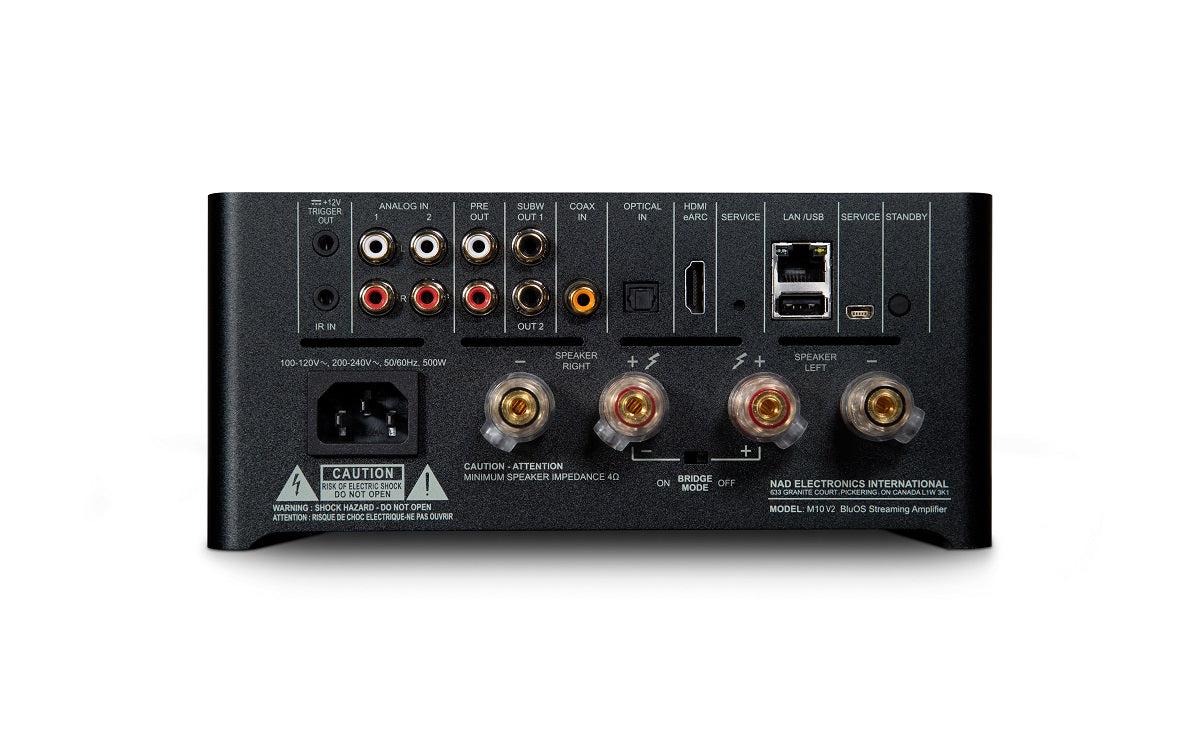

HDMI eARC,USB Type A inputs
Stereo line analogue and coaxial/optical digital inputs
Preamp output, two independent subwoofer outputs with updated gain algorithms
IR Input, 12V Trigger Out
Apps for iOS, Android, macOS, Windows, Crestron, Control4, RTI, URC, Elan, Lutron
Wide variety of premium music services supported in BluOS app, including Amazon, Spotify, Tidal, TuneIn, Napster, Deezer, Qobuz and many others
Support for all major lossless and lossy formats, including WAV, FLAC, AIFF, ALAC, AAC, MP3, Ogg Vorbis, and others
MQA decoding and rendering
Infrared remote control handset included
*The M10 V2 includes a license for Dirac Live with the option for advanced users to upgrade to a Dirac Live Full Frequency version.

Specifications

AMPLIFIER SECTION

LINE INPUT, SPEAKER OUT

Continuous output power into 8 ohms and 4 ohms
>100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz)
<0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio
>85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power
>130 W (at 1 kHz 8 ohms 0.1 % THD)
>230 W (at 1 kHz 4 ohms 0.1 % THD)
IHF dynamic power
8 ohms: 160 W
4 ohms: 300 W
Damping factor
>190 (ref. 8 ohms, 20Hz to 6.5kHz)
Frequency response
±0.6 dB (20 Hz – 20 kHz)
Tone controls
Treble: ±6.0 dB at 20 kHz
Bass: ±6.0dB at 60 Hz
Channel separation
>83 dB (1 kHz)
>70.5 dB (10 kHz)
Input sensitivity (for 100 W in 8 ohms)
Line In: 456 mV
Digital In: -13.23 %FS
Standby power
<0.5W

DAC SECTION

ESS Sabre 9028 DAC
Supported audio file formats
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Hi-Resolution audio formats
MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
Sampling rate
up to 32 bit/192 kHz PCM
Bit depths
16 – 24

BluOS SECTION

Supported operating systems
Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
User interface mobile operating system BluOS
BluOS – Free Android and iOS App available online at Google Play and Apple App store
Supported cloud services*
Amazon Alexa, Amazon Music, Spotify, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
Free internet radio*
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Bluetooth quality
Bluetooth aptX HD built-in
Bluetooth connectivity
Two-Way (Receive and Headphone modes)
Network connectivity
Gigabit Ethernet RJ45, Wi-Fi 5

DIMENSION AND WEIGHT

Gross dimensions (W x H x D)**
215 x 100 x 260 mm
8 1/2 x 3 15/16 x 10 1/4 inches
Shipping weight
5 kg (11 lbs)
NOTE
* – Supported audio file format, cloud services and free internet radio are subject to change without notice.
** – Gross dimension includes feet and extended rear panel terminals
