General Description | 2-way Centre Speaker |
Enclosure Type | Bass Reflex |
Transducer Complement | 2-way |
Bass Driver | 5" (135mm) Long Fiber Composite Cone X2 |
Treble Driver | 1.5" (38mm) Textile Ring Dome |
AV Shield | No |
Sensitivity (2.0V @ 1m) | 88dB |
Recommended Amplifier Power | 25-120W |
Peak SPL | 95dB |
Nominal Impedance | 4 Ω (compatible 8Ω) |

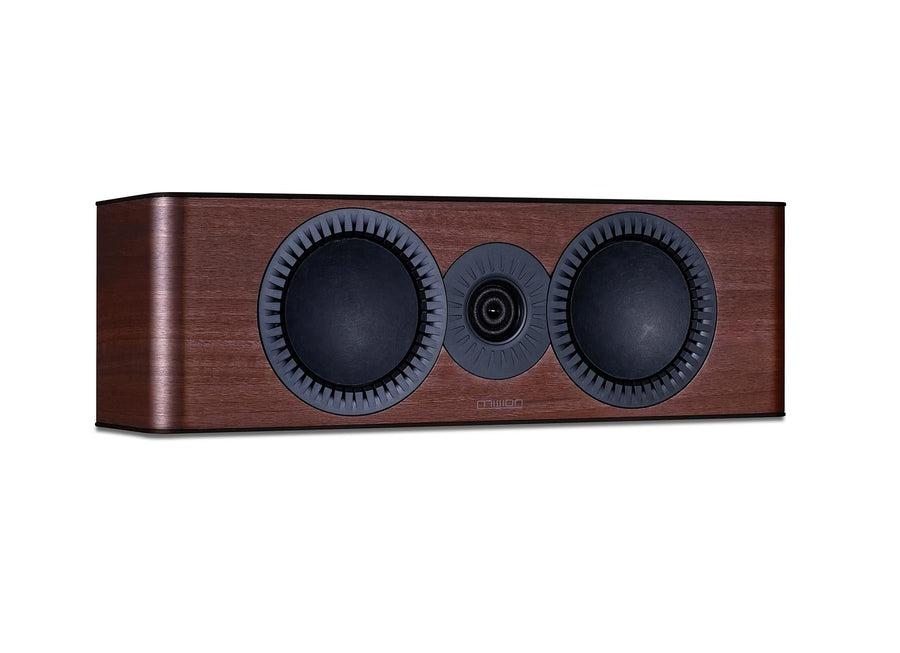

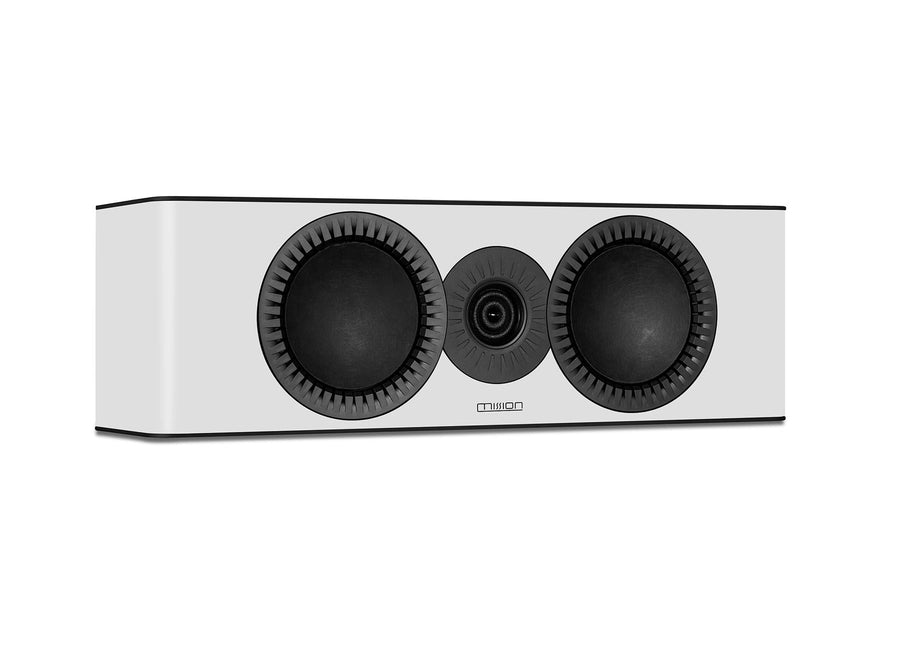

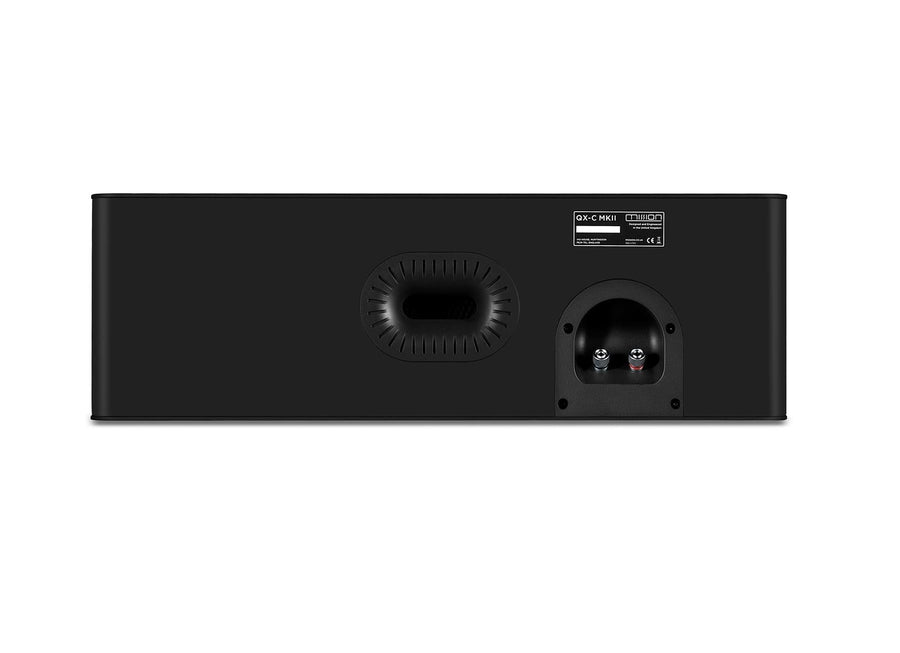

Mission QX-C MKII Centre Speaker
The QX-C MKII is a 2-way centre loudspeaker with two 5″ (135mm) bass drivers and a ring dome treble unit.
As per all Mission speaker concepts, the process of listening, listening, and more listening is the key to improvement. With the added benefit of modern speaker design tools, such as computer-aided optimisation technology, crossover modeling, and laser interferometry, Mission engineers also spent much time fine tuning the crossovers, components, materials, and construction.
Much like the now-established and equally class-leading Mission LX MKII series, the QX MKII series takes an already phenomenal loudspeaker solution but refines it, optimises it, and brings even more vibrancy, finesse, and class, through a process of evolution, not revolution.
Maintaining the basis of QX styling, the QX MKII is configured in the classic Mission IDG (Inverted Driver Geometry) format. By positioning the treble unit below the bass/midrange driver, the length of path is equalized so the sound waves coincide at the listener’s head height. This principle improves ‘time alignment’.
QX MKII also takes the ground-breaking serrated driver surrounds to a new level. More than just a technical appearance or pretty design touch, the surrounds have been improved by way of detailed air-flow analysis and precise measurement. The new-look QX MKII surrounds help scatter reflections and reduce airflow interference to improve the silky smooth performance of the drivers and ports.
Mission QX-C MKII Specifications
Minimum Impedance | 3.9Ω |
Frequency Response (+/-3dB) | 58Hz ~ 24kHz |
Bass Extension (-6dB) | 50Hz |
Crossover Frequency | 1.6kHz |
Cabinet Volume (in litres) | 8.1L |
Height (on plinth) | 175mm |
Width | 550mm |
Depth (with terminals) | (170+10)mm |
Carton Size | 640 x 265 x 280mm |
Net Weight | 8.6kg/pcs |
Gross Weight | 9.7kg/ctn |
