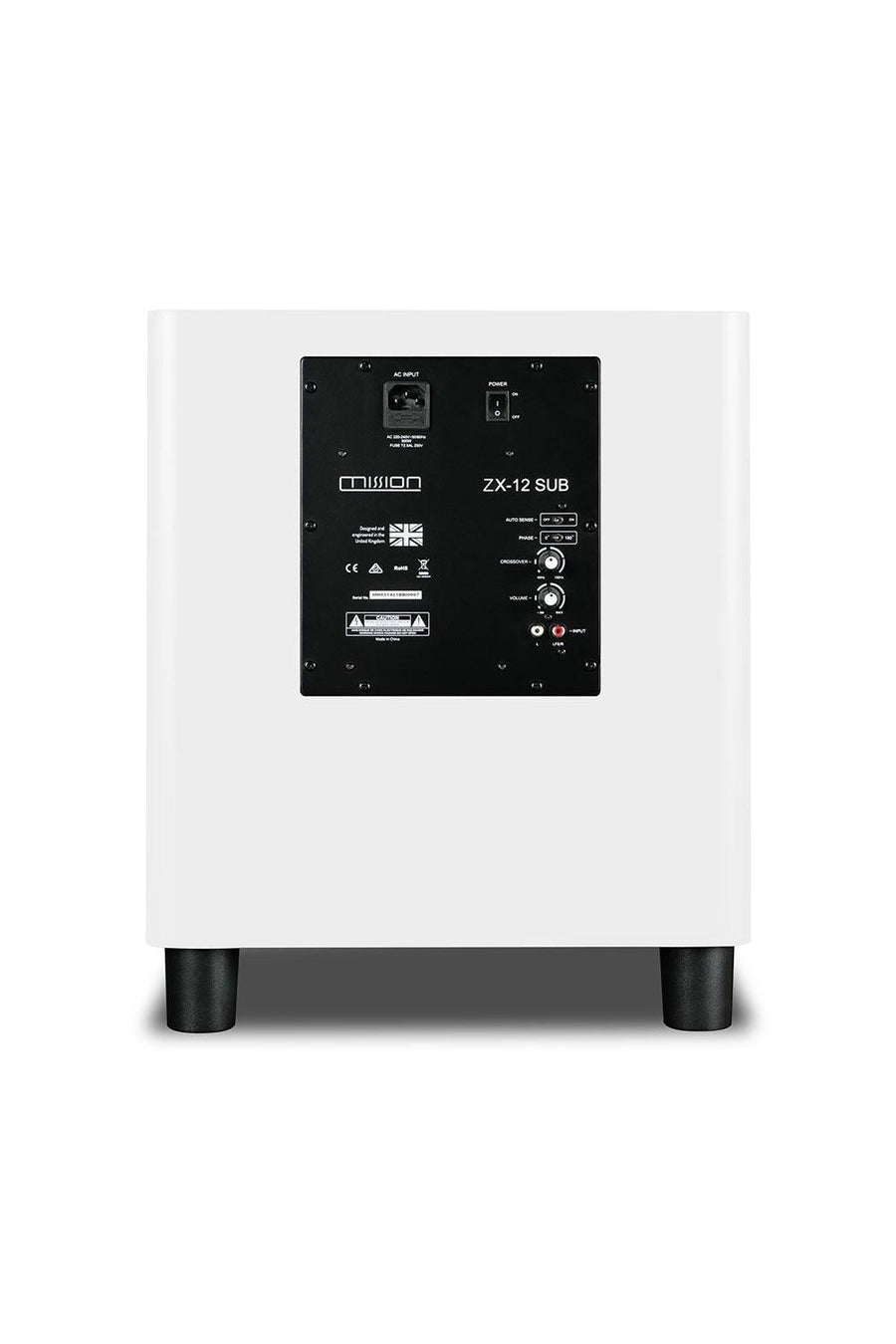

Mission ZX-12SUB Subwoofer
Perfect for a ZX Series home-theatre system or musical bass extension in 2-channel applications, the ZX-12 SUB utilises a 12-inch (300mm) long-throw bass driver of astounding bass impact. Based on the same award-winning system found in the best-selling QX-12 SUB, the ZX-12 SUB offers a premium high-gloss paint finish to perfectly match the aesthetics of the stunning ZX Series loudspeakers.
The sealed box design provides a fast and intensive bass response, while the employment of a custom-designed balanced drive Class-D power amplifier further provides power and speed that is usually unheard of in subwoofers of this price class.
In addition, a variable crossover frequency control provides seamless integration into any system, offering incredible low-frequency punch, power, and substance for all of your music and movie applications.
Mission ZX-12SUB Specifications
| Drive Units |
1 x (12") 300 mm cone long-throw |
| Frequency Response |
35- 120 Hz (+-±3dB) |
| Amplifier Power Output |
300 W |
| Peak Power Output |
450 W |
| Line Input Sensitivity |
200mV for maximum output |
| Crossover Range |
30 - 150 Hz |
| Inputs |
Stereo line in (2 x RCA phono) |
|
Mono (LFE) line in (RCA phono) |
| Input Impedance |
Line input 10 k |
|
LFE 5 kOhms |
| Signal-to-noise Ratio (s/n) |
≥ 85 dB |
| Avg. Max Output @1m |
118 dB |
| Features |
Phase inversion, auto on-off |
| Dimensions |
Height: (420+58) mm (with feet) |
|
Width: 400 mm |
|
Depth: (450+15) mm |
| Net Weight |
23 kg |
