The NAD CI 16-60 DSP 16 Channel Amplifier is a versatile and economical option for a distributed audio system, offering 8 zones of the same Class D, Hybrid Digital amplification found in NAD stereo products, with parametric EQ for fine tuning each zone. It is capable of delivering a conservative 60 watts per channel at 8 ohms into all channels simultaneously, and is bridgeable to 140 watts per channel, making it a great starting place for centralized multi-room audio.

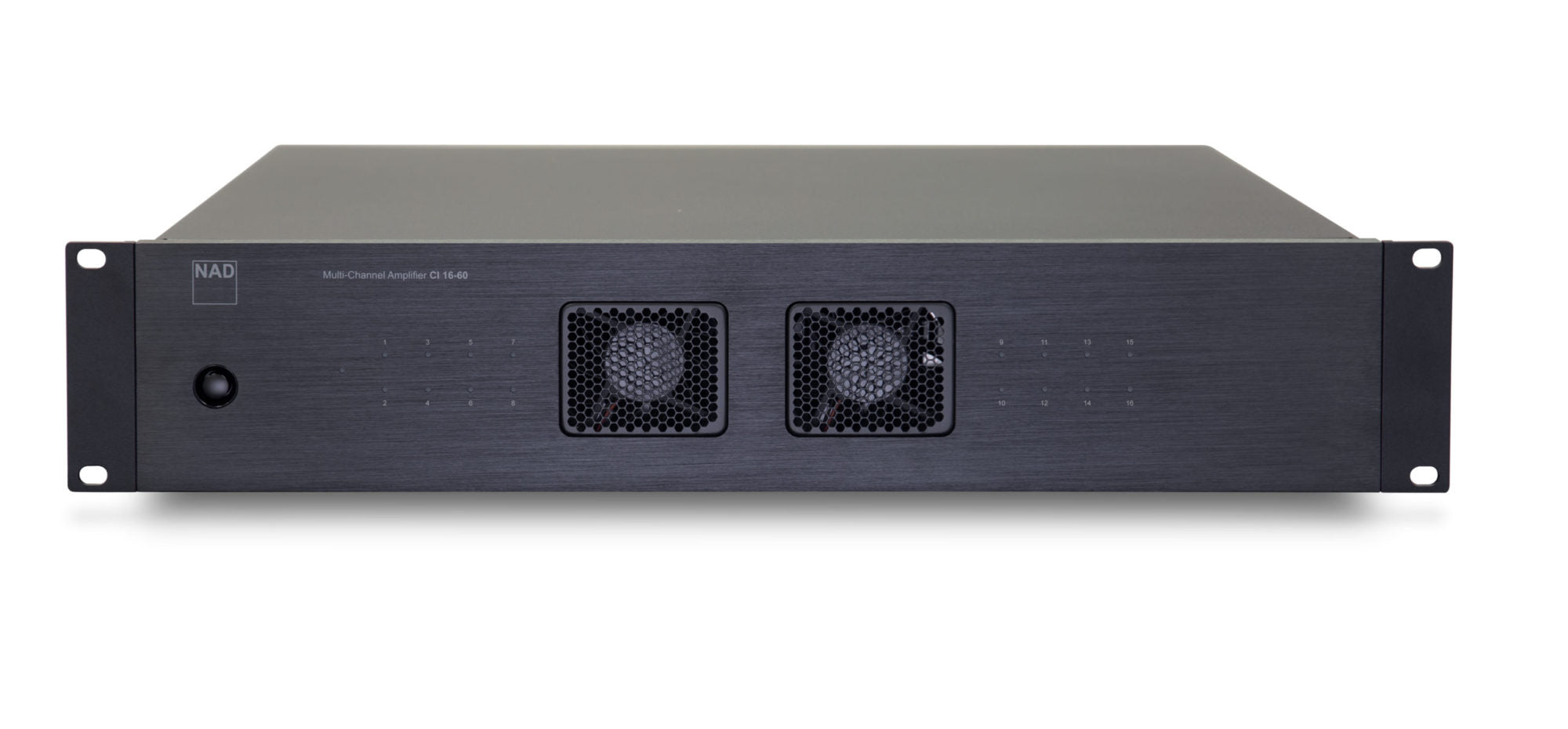

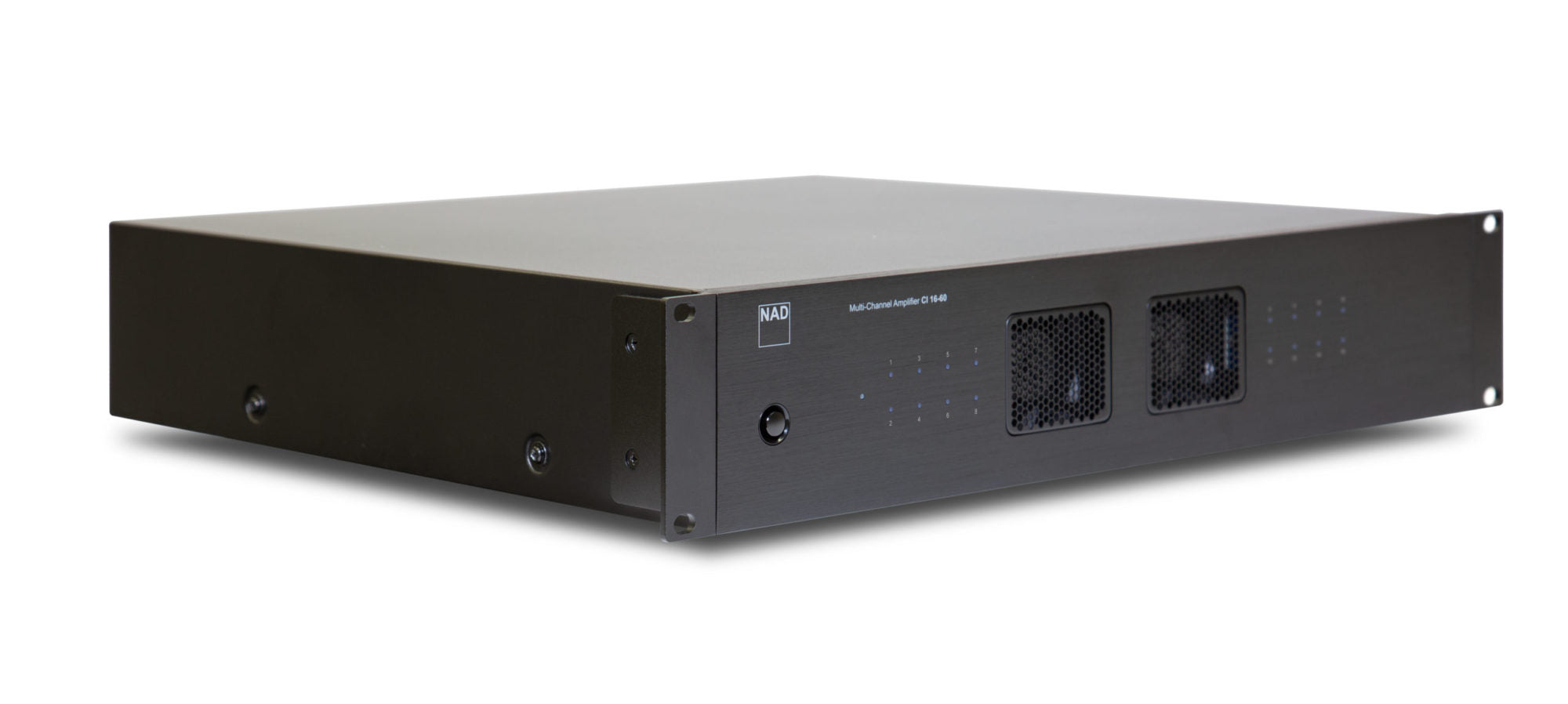

NAD CI 16-60 DSP 16 Channel Amplifier
The CI 16-60 is a versatile and economical option for a distributed audio system, that doesn’t compromise on quality. Offering 8 zones of the same Class D, Hybrid Digital amplification found in our Class Series NAD stereo products, and with parametric EQ for fine tuning each zone, the CI i16-60 is a great starting place for centralized multi-room audio.
Full Disclosure Power
The CI 16-60 DSP offers NAD’s world-renowned sonic performance at an unrivalled price per zone. As per NAD’s Full Disclosure Power (FDP) ratings, it’s capable of delivering a conservative 60 watts per channel at 8 ohms into all channels simultaneously, so no need to worry about a lack of power, or the amplifier becoming strained, when all zones are active in a multi-room system. The CI 16-60 DSP is also bridgeable to 140 watts per channel, and offers the necessary flexibility to handle most scenarios while remaining on budget.
Key Features
- 16 Channels x 60 Watts @ 8 Ohms, Hybrid Digital with Hypex UcD
- Bridgeable to 4 channels X 120 Watts @ 8 Ohms
- Effectively handles long cable runs and difficult speaker loads
- Ethernet port for IP control, custom web UI with virtual I/O panel and performance diagnostics
- DSP with 5 band parametric EQ, plus high and low pass filters
- 8 stereo RCA inputs with loop though
- Dual global Inputs/Outputs
- 2U Rack height
- 5W Standby Mode, 3W Network Standby
- 12V Trigger In; IR In/Out
- Thermostatic fan cooling with front vents
- Universal AC Power Supply
- Multiple Power-up options including Auto Sense turn on, as well as Eco Mode
- Control drivers for Crestron, Control4, Elan, RTI, URC.
Specifications
- Continuous output power into 8 ohms
- 60 W (all channels driven, 1kHz 0.05% THD
- 65 W (two channels driven, 1kHz 0.05% THD
- into 4 ohms
- 65 W (all channels driven, 1kHz 0.05% THD
- 105 W (two channels driven, 1kHz 0.05% THD
- Continuous output power into 8 ohms at Bridged mode
- 140 W (all channels driven, 1kHz 0.05% THD
- 240 W (two channels driven, 1kHz 0.05% THD
- THD (1 W to 50 W, 8 ohms and 4 ohms)
- 0.05 % (20 Hz – 3 kHz)
- 0.2 % (3kHz – 20 kHz)
- Signal-to-Noise Ratio
- 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power (all channels driven)
- 60 W (1 kHz 8 ohms 1 % THD)
- 80 W (1 kHz 4 ohms 1 % THD)
- Clipping power into 8 ohms at Bridged mode
- 150 W (1 kHz 1 % THD – all channels driven)
- 250 W (1 kHz 1 % THD – two channels driven)
- IHF Dynamic Power (all channels driven)
- 8 ohms: 65 W
- 4 ohms: 125 W
- IHF Dynamic Power (two channels driven)
- 8 ohms: 70 W
- 4 ohms: 125 W
- IHF dynamic power (Bridged mode, all channels driven)
- 8 ohms: 270 W
- IHF Dynamic Power (two channels driven)
- 8 ohms: 280 W
-
Peak output current
- 15 A (1 ohm, 1 ms)
- Damping factor
- 110 (20 Hz to 1 kHz 8 ohms)
-
Frequency response
- ±1dB (20 Hz – 20 kHz)
- Channel separation
- 60 dB (1 kHz)
- 55 dB (10 kHz)
- Maximum undistorted input level
- 2900 mV
- Input sensitivity (for 50 W in 8 ohms, maximum volume)
- 760 mV
- Input impedance
- 20 k ohms//220pF
- Analog input audio sense threshold (one channel with signal)
- 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
- Trigger IN level
- 3 – 30 Vdc
- Standby power
- 0.5W
DIMENSIONS AND WEIGHT
- Gross dimensions (W x H x D)*
- 483x100x435mm
- 19 1/16 x 3 15/16 x 17 3/16 inches
- Net Weight
- 10.3 kg (22.7 lbs)
- Shipping Weight
- 12.8 kg (28.2 lbs)
