NAD CI 940 Multi-Channel Power Amplifier at Audio Influence

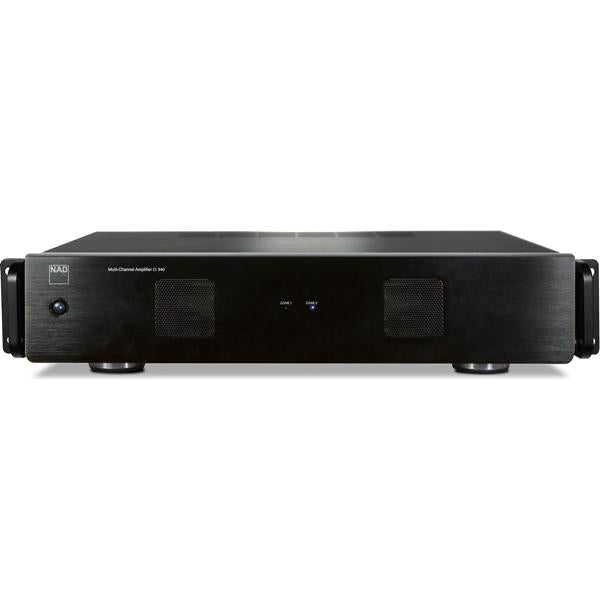

NAD CI 940 Multi-Channel Power Amplifier

No reviews

Regular price $1,399.00 Sale price$1,259.00 Save $140.00
/
10 interest free payments from $125.90 with


The NAD CI 940 Multi-Channel Power Amplifier is a high-performance, reliable, and flexible component that can easily provide the instantaneous peak current required for good bass response. It is incredibly flexible, with selectable local or global inputs and the ability to bridge channels to create a single high-power channel, and is designed to drive real world speaker loads, not just simple laboratory test loads.

NAD Electronics Logo

NAD CI 940 Multi-Channel Power Amplifier

High-performance four-channel amplification for custom installation and distributed audio systems. With multiple discrete high-power output devices in the component, it can easily provide the instantaneous peak current required for good bass response.

RELIABLE, FLEXIBLE, EASY

The reliability, flexibility, and ease of installation of the CI 940 is unsurpassed. Its design is space-efficient and will fit into standard racking units with rack ears and Phoenix speaker connection blocks. The amplifier is fully protected from short circuit and overheating, and automatically restores operation after a condition is rectified. The CI 940 is incredibly flexible, with selectable local or global inputs and the ability to bridge channels to create a single high-power channel.

EFFICIENT WITH LOW NOISE AND DISTORTION

Choose between a DC trigger or a signal-sensing turn-on with auto shut-off to make integration easy. The signal sensing circuit employs a sophisticated music sensing circuit to prevent the false triggers common with noisy source components or other types of interference noise like RF leakage or ground loops.

AWARD-WINNING SONICS

When it comes to sound, NAD is in the top tier of all amplifier brands, consistently winning awards for both performance and value for money. Known for their warm, expansive and intensely musical sound, NAD amplifiers are designed to drive real world speaker loads, not just simple laboratory test loads. The NAD CI 940 will bring out the best performance from any speaker giving you the best possible listening experience. It is also very quiet with inaudible residual noise in no-signal conditions, important when using efficient speakers in small spaces. Energy efficiency is also impressive with <0.5W standby consumption and highly efficient power delivery. Musical, practical, efficient and reliable, the CI 940 is everything you want for high quality distributed audio.

FEATURES
Continuous Output Power
                         8 Ohms/4 Ohms 4 x 35W (ref. rated THD, 20Hz-20Hz, all channels driven)
                         8 Ohms Bridge Mode 2 x 70W
Rated THD (250mW to rated power, CCIF IMD, DIM 100) ≤0.03% (ref. 20Hz-20kHz)
IHF DYNAMIC POWER 8 Ohms 55W
                                     4 Ohms 85W
                                     2 Ohms 95W
Damping Factor >180 (ref. 8 Ohms, 50Hz and 1kHz)
Input Sensitivity 270mV (ref. rated power)
Voltage Gain 35dB
Frequency Response ±0.2dB (ref. 20Hz-20kHz), -3dB at 3Hz and 100kHz
Signal/Noise Ratio, A-Weighted >95dBA (ref. 1W), >110dB (ref. 35W)
Trigger 5-30V In (AC/DC), -52dBV, 12V Out
Time to Automatic Standby (without signal at input sense mode) <10 minutes

GENERAL
Rated Power 270W (120V 60Hz, 230V 50Hz)
Idle Power <55W
Standby Power <0.5W
Dimensions (W x H x D) 483x105x323mm
Net Weight 6.96kg
Shipping Weight 8.4kg
