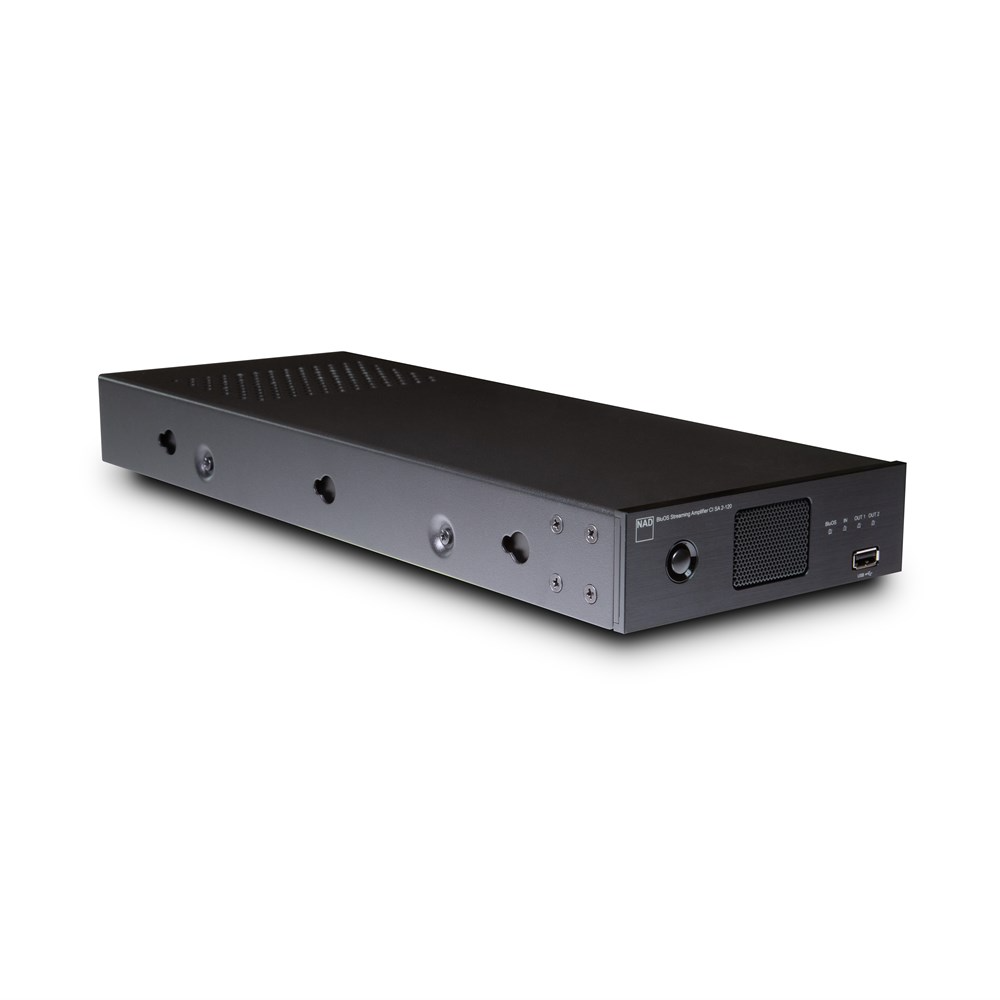

NAD CI SA2-120 BluOS Streaming Amplifier Module
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
CI SA2-120 BLUOS STREAMING AMPLIFIER MODULE
The NAD CI SA2-120 BluOS Streaming Amplifier is designed to deliver high-quality amplification and networked music streaming in a single, compact solution for custom installation systems. Combining 240 watts of NAD DirectDigital™ amplification with dual stereo outputs and the BluOS multi-room platform, it can be used in single or dual zone configurations. Purpose-built for professional environments, CI SA2-120 simplifies system design while maintaining the sound quality, reliability, and control expected from NAD. It is an ideal solution for distributed audio, retrofit projects, and zones where space and efficiency are critical.
KEY FEATURES
- 2 x 120 W or 4 x 60 W DirectDigital™ amplification
- Dirac Live Ready for room correction (future update)
- Two zones of BluOS multi-room streaming with access to 20+ services and internet radio

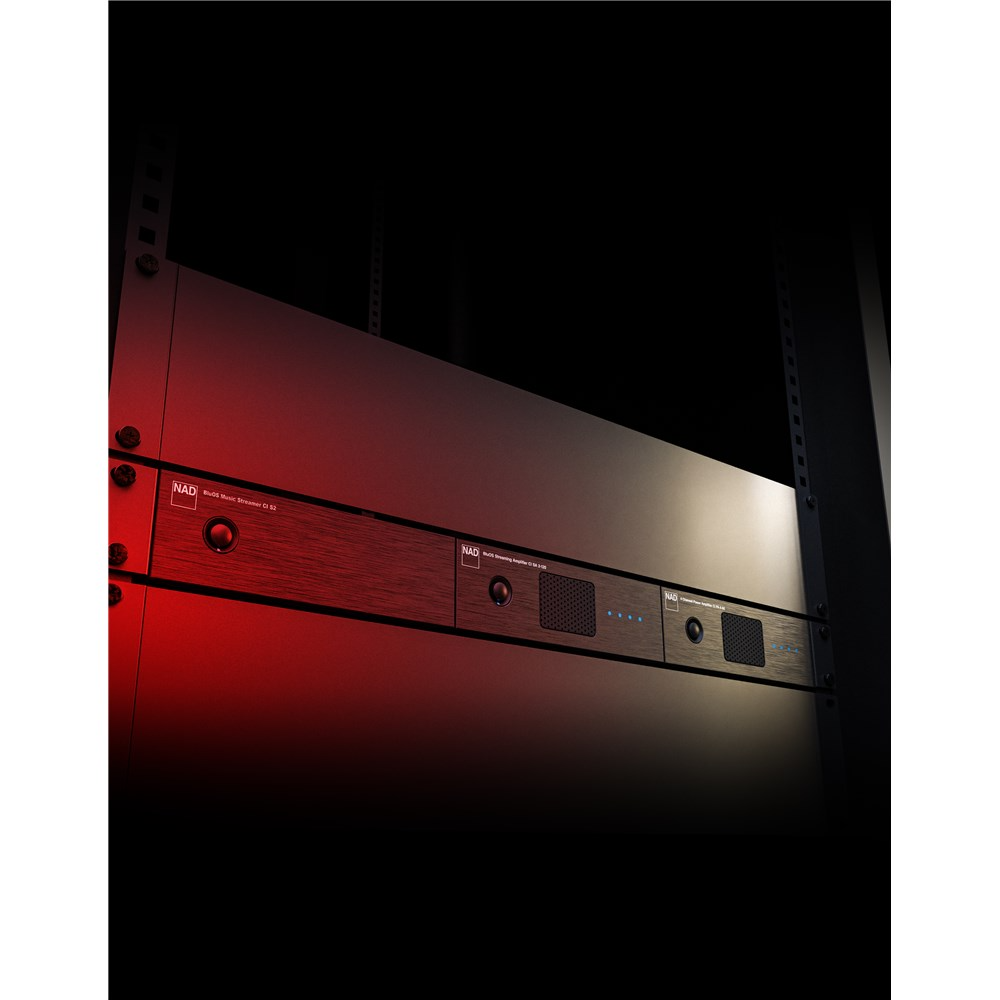

- Compact 1/3 width x 1U height with Chassis Link Flexible rack and surface placement options
- aptX HD two-way Bluetooth, AirPlay 2, Spotify Connect, Qobuz Connect and Tidal Connect
- Dynamic Power Management automatically optimises power distribution
- Thermostatic fan cooling with front-to-rear airflow for reliable stacking
- Engineered for reliable, long-term operation
AUDIO |
|
| Supported Audio File Formats | MP3, AAC, WMA, WMA-L, OGG, OPUS |
|---|---|
| Supported High-Quality Audio File Formats | FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS |
| Supported Multi-Channel Audio Formats | Dolby Digital® Downmixing to stereo PCM |
| Native Sampling Rates | up to 192 KHz |
| Bit Depth | 16-24 |
| Audio Controls & EQ | BluOS Control App |
| Signal-to-Noise Ratio | >102dBA |
| Distortion | THD+N, 0.005% |
| Amplification | DirectDigital™ |
| Rated Power Output | 60W (8 & 4 Ohms) |
| IHF Dynamic Power | 150w (8 & 4 Ohms) |
SOFTWARE & INTEGRATIONS |
|
| Operating System | BluOS |
| App Controller Operating System | iOS, Android, Windows, macOS |
| Processor | ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core |
| Supported Network File Sharing | Server Message Block (SMB) up to 200,000 files |
| Album Art Supported | JPG, PNG |
| Music Services & Internet Radio | 23+ |
| 3rd-Party Integrations | AirPlay 2, Spotify Connect, Tidal Connect |
| Room Correction Software | Dirac Live Ready (Zone 1 only, calibration mic not included) |
| Control System Integrations | Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI |
| Voice Control Integrations | Amazon Alexa Skills |

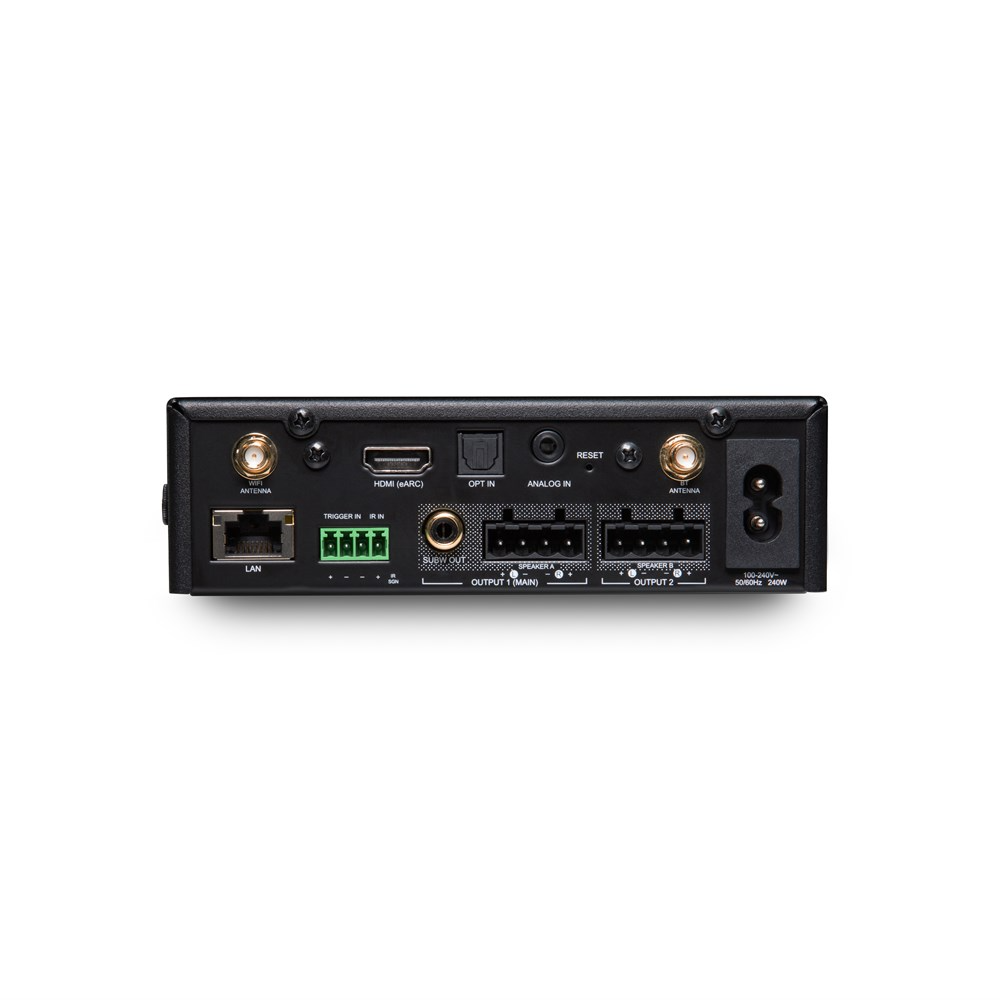

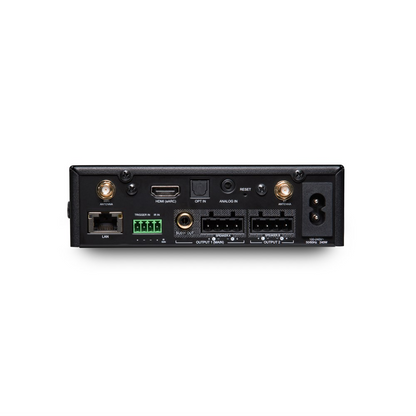

CONNECTIONS |
|
| Power Supply | Universal 2-pin AC cord input (100-240AC) |
| Ethernet/LAN | Ethernet RJ45, Gigabit 1000Mbps |
| Wi-Fi | Built In WiFi 5 (802.11ac), dual-band |
| Bluetooth Quality | Bluetooth 5.2 aptX HD |
| Bluetooth Connectivity | Two-Way (Zone 1 only) |
| IR Optical Built In | No |
| IR Input | 2-pin PHX connector (IR extender kit required) |
| Optical/Analog Input | Toslink Optical, 3.5mm Analog (Zone 1 Only) |
| HDMI Input | HDMI eARC (Zone 1 Only) |
| USB In | Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode |
| Dual Speaker Outputs | Yes, Output 1 = Zone 1, Output 2 = Zone 2 |
| Main Zone/Sub Zone Capability | Yes (independent volume control over Speaker Output 2 when activated) |
| Subwoofer Output | RCA x 1; Wireless to PULSE SUB+ (Linked to Output1/Zone 1 only) |
| Speaker Terminals | 2x 4-PIN Snap On PHX 5.08mm Connector, supports up to 12AWG |
| Headphone Output | None |
| 12v Trigger Input | x1 Configurable Smart Trigger Input |
| 12v Trigger Output | None |

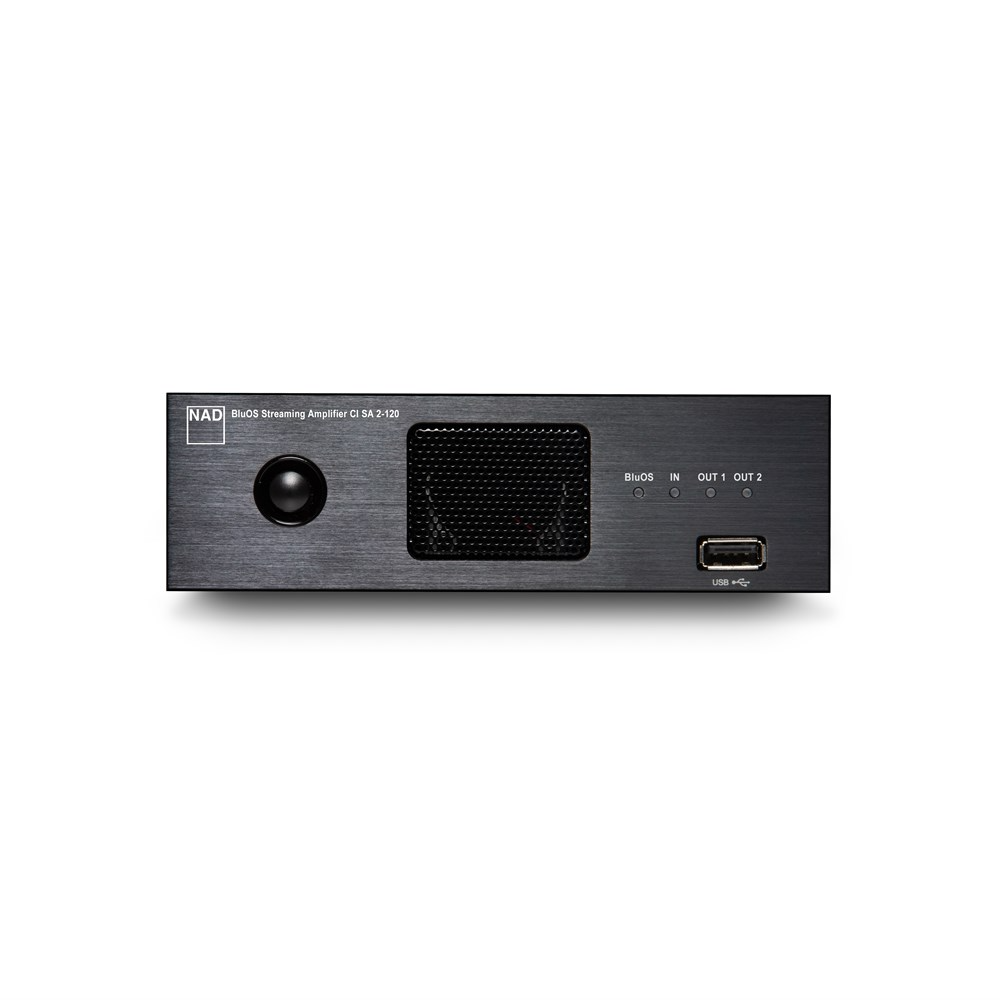

USER INTERFACE & CONTROL |
|
| Status Indicator | BluOS Status LED |
| Source Status Indicator | x2, BluOS/Connected Input Live |
| Output Status Indicator | x2, Output pair 1, Output Pair 2 |
GENERAL |
|
| Finish | Black |
| Max Power Consumption | 240w |
| Storage Environment | -10°C to 50°C, 20% to 80% relative humidity |
| Operating Environment | 0°C to 40°C |
| SKU/Version | SA2-120 |
| Generation | 1 |
