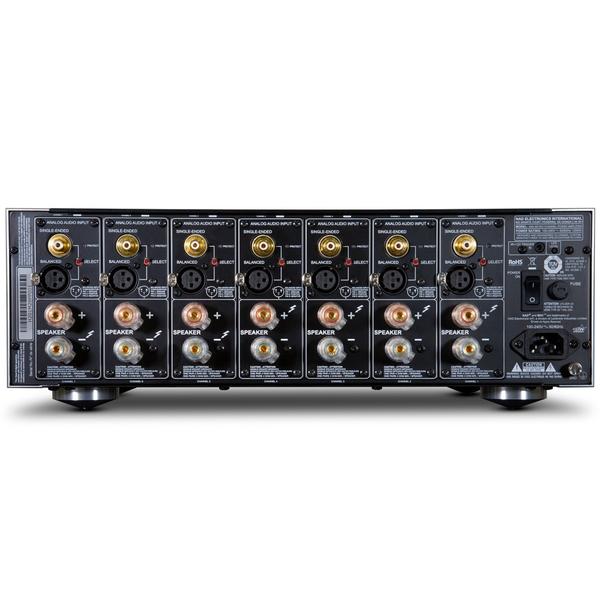

NAD Masters M28 Seven Channel Power Amplifier NADM28
NAD Masters M28 Seven Channel Power Amplifier NADM28 at Audio Influence

NAD Masters M28 Seven Channel Power Amplifier NADM28

No reviews

Regular price$9,499.00
/
10 interest free payments from $949.90 with


The NAD Masters M28 Seven Channel Power Amplifier is a high-quality amplifier that can handle up to 200W of power per channel and over 320W of power total, resulting in a rich, balanced sound that can fill an entire room without any unwanted noise or distortion. It employs Eigentakt™ technology to reduce distortion and create a balanced sound, and is impervious to the loudspeaker load it is presented with, maintaining the same wide and even bandwidth response irrespective of the speaker’s impedance.

NAD Electronics Logo

NAD Masters M28 Seven Channel Power Amplifier

The M28 Seven Channel Power Amplifier is among the best in its class when it comes to dynamic sound. The amplifier can handle up to 200W of power per channel and over 320W of power total, making it compatible with a whole range of speakers and other devices. The result is a rich, balanced sound that has the ability to fill an entire room and allow listeners to hear their favourite music at optimum levels, without any unwanted noise or distortion. It is one of the first products of its kind to employ Eigentakt™ technology, which uses feedback algorithms to reduce distortion and create a balanced sound.

In common with the previous generations of NAD Hybrid Digital technology but unlike most class D amplifier designs, the M28 is impervious to the loudspeaker load it is presented with, maintaining the same wide and even bandwidth response irrespective of the speaker’s impedance and at the same time providing high current capability. The continuous 200W into 8 ohms on tap for all channels driven at the same time and 700W dynamic power into 4 ohms is testament to this.

SPECIFICATIONS

  • FTC power, two channels
  • ≥ 220 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, two channels driven)
    ≥ 400 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, two channels driven)
  • Rated power, all channels
  • ≥ 200 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, all channels driven)
    ≥ 340 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, all channels driven)
  • Rated THD (250 mW to rated power, CCIF IMD, DIM 100)
  • ≤0.003 % (ref. 20 Hz – 20 kHz)
  • IHF dynamic power
  • 280 W 8 Ohms, (all channels driven)
    560 W 4 Ohms, (one channel driven)
  • Damping factor
  • 1.3 V (ref. rated power)
  • Input impedance
    Input Impedance (r and c)
  • 47 kΩ (Balanced)
    23 kΩ (Single-ended)
  • >118dB (ref. rated power)
  • Damping Factor
  • >750dB (ref. 8 Ohms, 50Hz and 1kHz)
  • Frequency Response
  • ±0.1dB (ref. 20Hz-20kHz)
  • -2.5dB at 3Hz and 100kHz
  • Input Impedance
  • 47 kilohm (Balanced)
  • Signal/noise ratio
  • > 102dB (A-weighted ref. 1W, Balanced)
    > 97 dB (A-weighted ref. 1W, Single-ended)
    > 124 dB (A-weighted ref. rated power, Balanced)
    > 120 dB (A-weighted ref. rated power, Single-ended)
  • Frequency response
  • ± 0.1 dB (ref. 20 Hz – 20 kHz)
    – 3 dB at 3 Hz to 60 kHz
  • Gross dimensions WxHxD
  • 435 x 156 x 380 mm (17 3/16 x 6 3/16 x 15”)
  • Shipping Weight
  • 21.2 kg (46.7 lbs)
