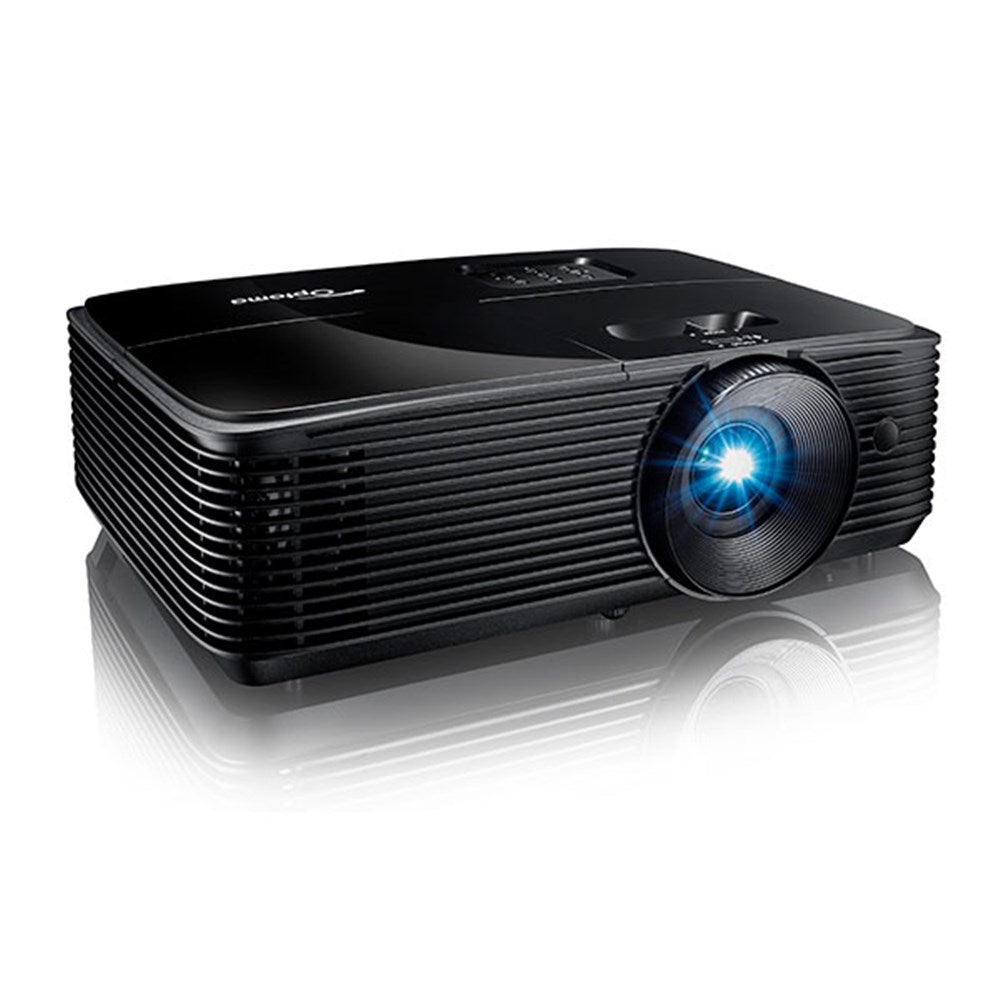

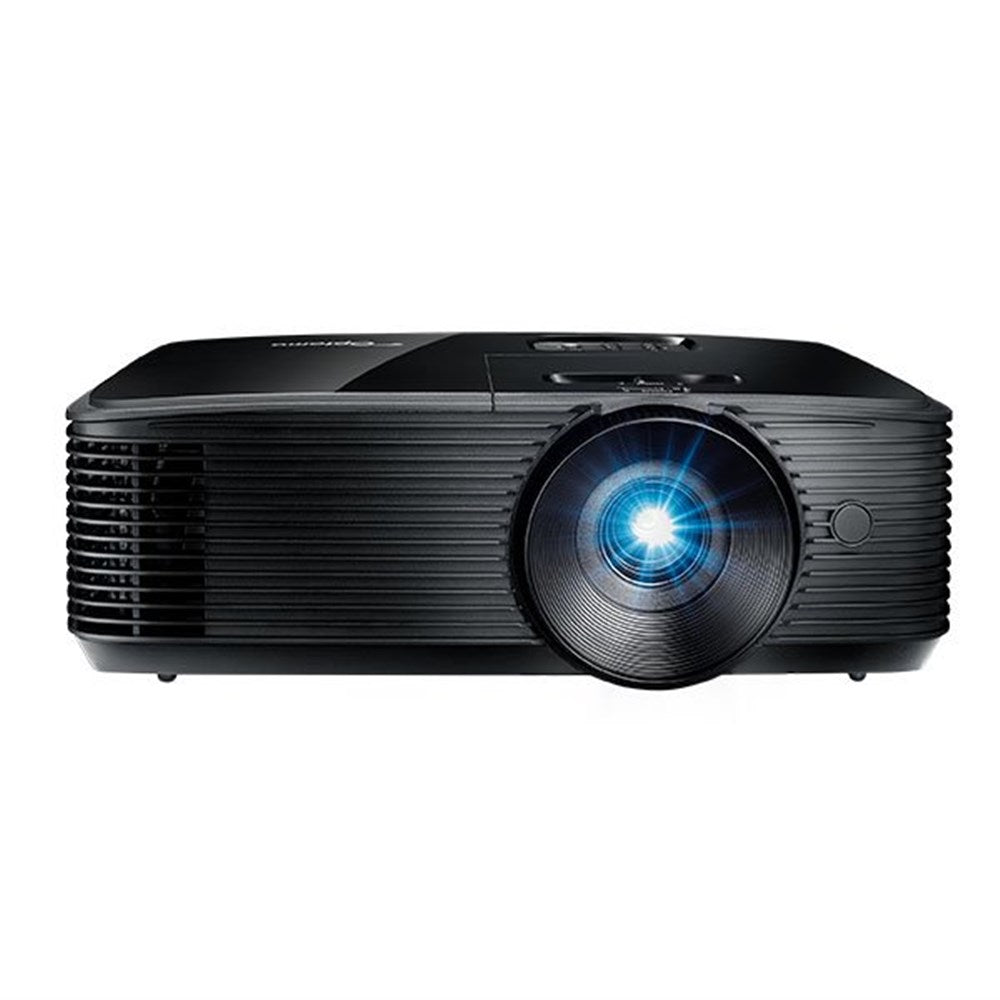

HD146X

Vibrant Home Theater Projection

Big Screen Entertainment & Gaming

• Bright 3,600 lumens with 25,000:1 contrast ratio
• Full HD 1080p resolution
• Enhanced Gaming Mode brings lightning-fast input response for competitive gaming
• Game Display Mode enhances shadows and dark scenes for better playability
• HDMI-Link support simplifies control of connected HDMI devices and video sources
• Outstanding lamp life up to 15,000 hours (Dynamic) reduces overall cost of ownership.

Vibrant home theater projection

Embrace the huge-screen cinematic experience with the affordable 3,600 lumens Optoma HD146X 1080p home theater projector. The excellent color reproduction and high-quality 25,000:1 contrast ratio ensures images up to 301-inches look incredible for unmatched immersion for movies and gaming.

Enhanced Gaming Mode delivers lightning-fast input response times of 16ms, perfect for fast-paced and competitive console or PC gaming. Game Display Mode provides a visual advantage by boosting shadows and dark scenes for greater visibility of impending obstacles.

HDMI-Link technology enables control of the projector and connected devices using a single remote, all via the HDMI connection. Up to 15,000-hour lamp life delivers many years of use with minimal maintenance when using Dynamic mode.

DLP Technology®
DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Amazing Color
Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.

Enhanced Gaming Mode
Gaming Mode optimizes the projector for lightning fast response times.

HDMI Link
HDMI Link lets you to turn on and off two or more HDMI-CEC capable devices using a single remote control.

Signal Power On
The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses required.

Full HD 1080p
1080p (1920×1080) resolution renders sharp and detailed images from HD content without downscaling or compression, which is perfect for movies, TV shows and gaming.

Dynamic Black Technology
This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

ISF Modes
This feature allows you to save your calibrated day and night mode settings for the ideal viewing experience.

Long Lamp Life
Reduce the number of lamp changes with long lamp life.

TECHNICAL SPECIFICATIONS

• Aspect Ratio: 16:9
• Audio: 3W Speaker
• Brightness: 3,600 ANSI lumens
• Color Wheel: 6 segment RYGCWB
• Compatible Aspect Ratio: 16:9 (native), 4:3, 16:10 and LBX compatible

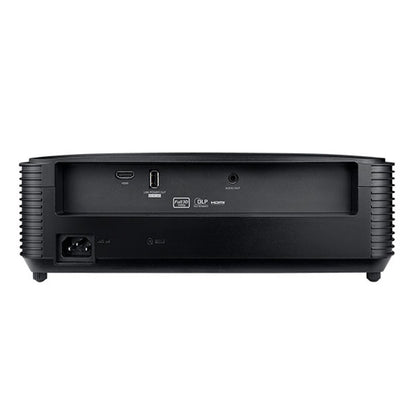

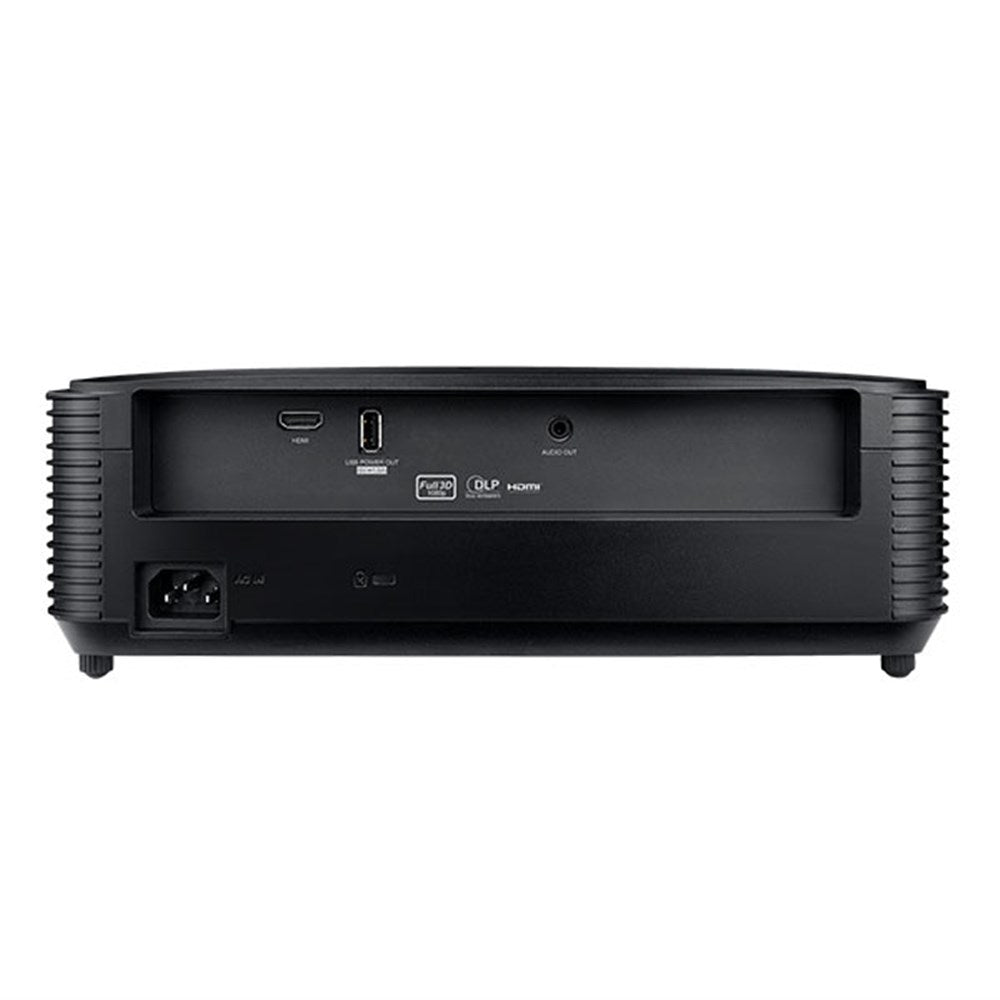

• Connections: HDMI (1.4a), audio out (3.5mm), USB (1.5a / firmware update)
• Contrast Ratio: 25,000:1
• Control Unit: Complete on-screen menu adjustment in 26 languages
• Display Technology: Texas Instruments 0.47” DMD
• Displayable Colors: 1.07 billion
• Image Size: 28” – 301"
• Keystone Correction: ±40° Vertical
• Light Source Type: 240W
• Light Source Life: 15,000/10,000/4,000 (Dynamic/Eco/Bright)
• Maximum Resolution: WUXGA (1920×1200)
• Native Resolution: 1080p (1920×1080)
• Noise Level: 26dB
• Offset: 116%±5%
• On-Screen Display: Complete on-screen menu adjustments in 26 languages
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Power Consumption: 295W typical (Bright), 325W max (Bright), 215W typical (Eco), 240W max (Eco)
• Power Supply: AC input 100 – 240V, 50 – 60 Hz, auto-switching
• Projection Distance: 3.2’ – 35.37” (no zoom)
• Projection Lens: F=2.1 ~2.31, f=15.59 ~ 17.14mm manual
• Projection Method: Front, rear, ceiling count, tabletop
• Projection Screen Size: 28” – 301"
• Remote Control: Full size remote
• Throw Ratio: 1.47 – 1:62 (+/- 5% variance)
• Uniformity: 80%
• Zoom Type: 1.1x optical, 0.8 – 2.0 digital

COMPATIBILITY SPECIFICATIONS

• Computer Compatibility: FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac
• Horizontal Scan Rate: 25 – 85Hz (120Hz for 3D)
• Optional Wireless: No
• RoHS: Compliant
• Vertical Scan Rate: 15 – 91kHz
• Video Compatiblity: PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)

PHYSICAL SPECIFICATIONS

• Dimensions (W x H x D): 12.4” x 4.3” x 9.5”
• Security: Security bar, Kensington lock, password protection
• Weight: 6.2 lbs.

OTHER

• What's in the Box?: HD146X projector, AC power cord, remote control, batteries for remote, quick start user manual
• Accessories Part Numbers: 4K UHD Casting and Mirror Dongle: UHDCast Pro, Lamp (replacement): BL-FU240H, Remote (replacement): BR-3001B, Universal ceiling mount (with extensional pole): OCM815B, Universal ceiling mount: OCM818B-RU
• UPC: 796435 81 366 6
• Warranty Info: 1 Year limited parts and labor warranty on the projector, 90 days lamp warranty
