ZH507

• Optoma DuraCore Technology, IP6X dust resist provides good brightness and reliability
• Up to 30,000 hours laser light source life and virtually zero maintenance for system
• Amazing color, 91% Rec.709 color gamut coverage to render lifelike images
• Ultra-low input lag at 8.2ms @1080P 120Hz
• Big 1.6x zoom & vertical lens shift with 4-corner adjustment
• Tilt free orientation, including portrait mode
• Compatible with Optoma Management Suite (OMS)

Introducing ZH507, the best value laser projector for the entry professional installation market, featuring brightness at 5,000 lumens, 300,000:1 contrast, and with flexible installation options such as 1.6x zoom, 360-degree orientation, and 4-corner adjustment. With the IP6X certified airtight optical engine, ZH507 can maintain high quality performance up to 30,000 hours. Delivering outstanding reliability, high intensity brightness, compact design, stunning colors and spectacular image quality, The ZH507 is precision engineered to power larger than life experiences.

ZH507 provides the perfect solution for businesses, conference rooms, higher education, auditoriums, exhibitions, digital signage, entertainment venues, projection mapping, and simulation.

4K / HDR Compatible

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Robust & Reliable Optoma DuraCore

ZH507 is designed with Optoma’s Airtight Optical Engine with IP6X certification.The airtight enclosure resists dust particles and ensures a long lasting, reliable and maintenance free experience, and ultimate brightness consistency and reliability. The Mercury free laser light source is rated for up to 30,000 hours enabling a low total cost of ownership.

Amazing Color

ZH507 achieves 91% Rec. 709 coverage to render lifelike images that will wow your audience.

1.6x Zoom Range

A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen.

An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

Ultra-Low Input Lag

ZH507 support ultra-low input lag under 1080P 60Hz and 120Hz source. Gamers can enjoy responsive controls while gaming on a giant screen.

Vertical Lens Shift

Simplify installation with lens shift, which provides a wide range of projector placement possibilities.

4 - Corner Adjustment

By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.

24/7 operation

All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.

360° and portrait projection capability

Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. ZH507 can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.

Compatible with Optoma Management Suite (OMS™)

Optoma Management Suite (OMS)™ is an intuitive display management solution, designed to streamline operations by monitoring, diagnosing and controlling audio visual displays via a local area network from a single platform and location. Users can also broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.

Network control protocols

Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are.

AV Mute

In situations where only absolute darkness is required, ZH507 can provide a total blackout that functions like mechanical shutter.  The change between normal projection to a total black image and vice versa is instantaneous.

Low Noise: Quieter than a Whisper

Only 33dB in ECO mode.

Quick start-up and shutdown

ZH507 features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser-light source requires minimal cool-down time.

Specifications

• Display Technology:    DLP
• Native Resolution:    1080p 1920 x 1080
• Brightness:    5,000 Lumens
• Contrast:     300,000:1 (w/ Extreme black)
• Light Source:    Laser phosphor

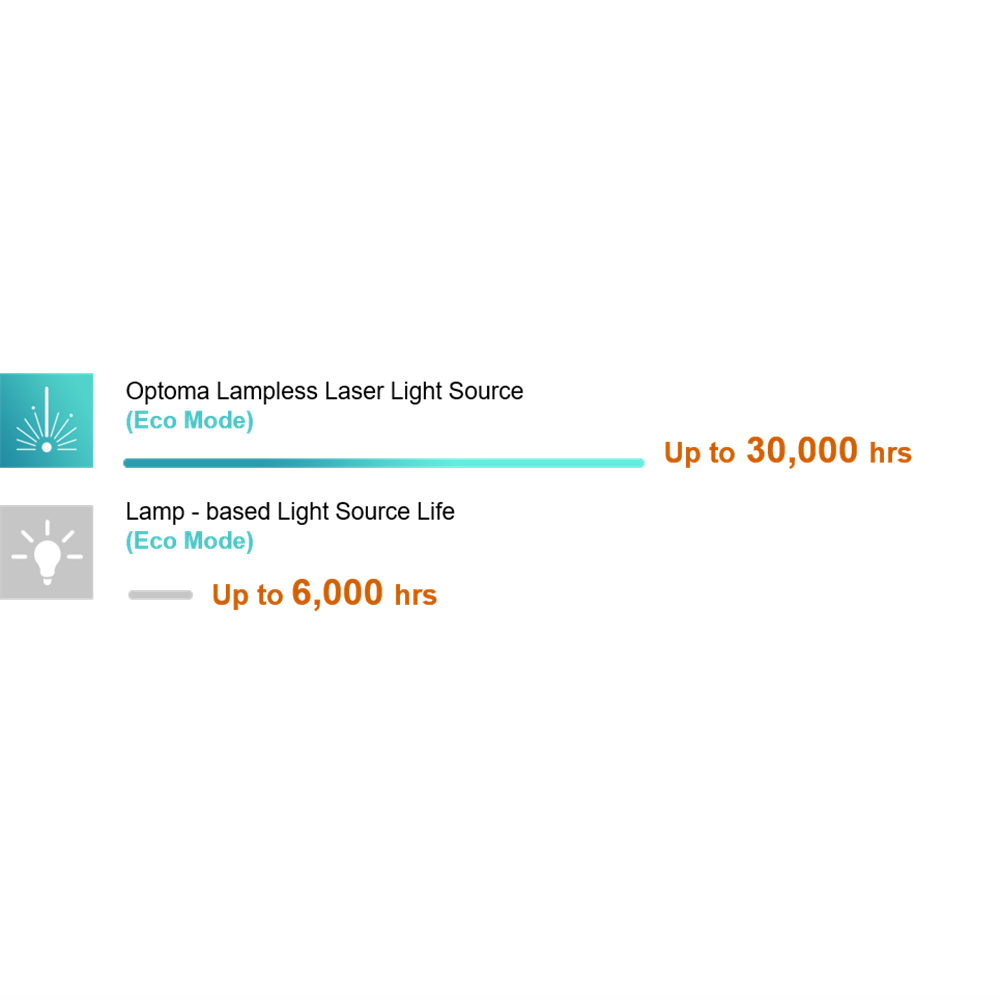

• Light Source Life:    30,000 hours (Eco mode)
• Throw Ratio:    1.4 – 2.24 :1
• Zoom Type:    1.6x Manual
• Lens Shift:    100% ~116% vertical

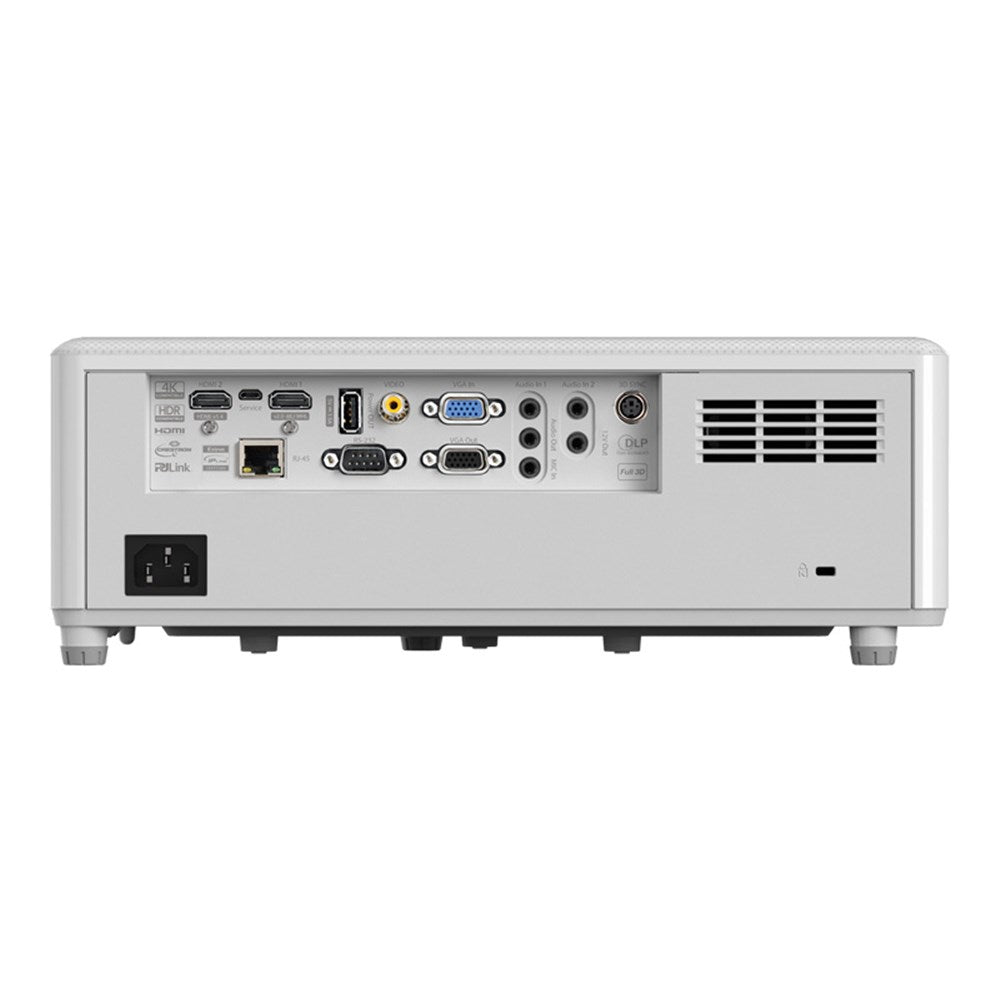

• I/O Connectors:    HDMI 1.4a x1, HDMI 2.0 x1, VGA in x1, VGA out x1, Composite Video x1, USB Power (5V/1.5A), Micro USB (for service), Audio in x 2, Audio out x1, Mic in x 1, 12V out x1, RS232 x 1, 3D sync x 1, RJ 45 x 1 (support web control)
• Speaker (Watts):    10W x 2
• Keystone Correction:    ±30° Vertical, ±30° Horizontal
• Weight (Kg):    5
• Dimensions (W x D x H) (mm):    337 x 265 x 108 (excluded adjustment feet)
• Aspect Ratio:    16:9 Native, 4:3 Compatible
• Offset:    100% – 116% ±5%
• Projection Screen Size:    20.2”~320.4”
• Projection Distance:    1.0 ~ 10 M
• Projection Lens:    F/2.5~3.26; f=20.91~32.62mm, 1.6x Manual Zoom
• Uniformity:    85%
• Computer Compatibility:    WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA, VGA Compression, VESA standards, PC & Macintosh compatible
• Video Compatibility:    480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (50/60Hz)
• 3D Support:    Full 3D
• Horizontal Scan Rate:    15.375~91.146 KHz
• Vertical Scan Rate:    50 ~ 85 Hz (120Hz for 3D feature)
• Displayable Colors:    1073.4 million colors (10 bit)
• Noise Level:    33dB (Eco mode)
• Power Supply:    100?240V, 50?60Hz, auto-switching
• Power Consumption:    Bright : MAX 292W @110VAC, MAX 282W @220VAC; Eco: MAX 235W @110VAC, MAX 227W @220VAC
• 360-operation:    Yes
• Portrait Mode:    Yes
