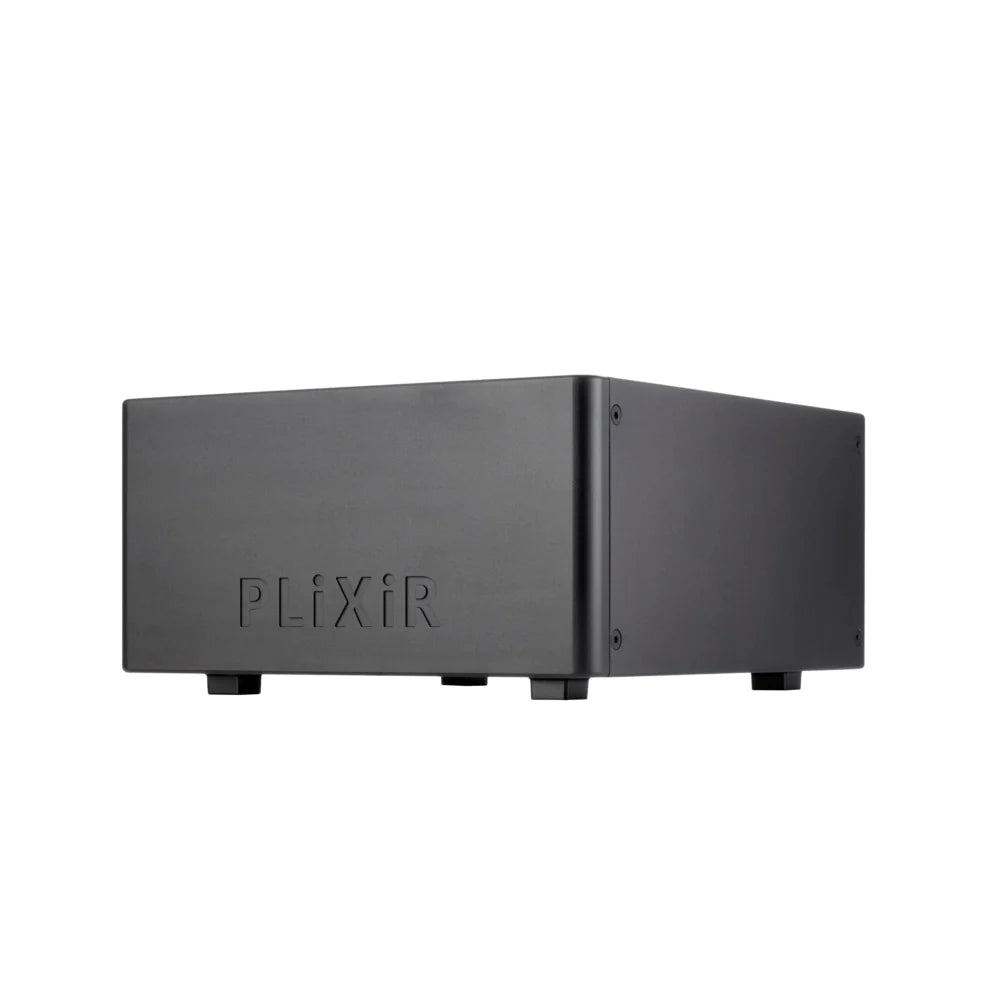

Plixir - Elite BAC 1000 AC Power Conditioner*

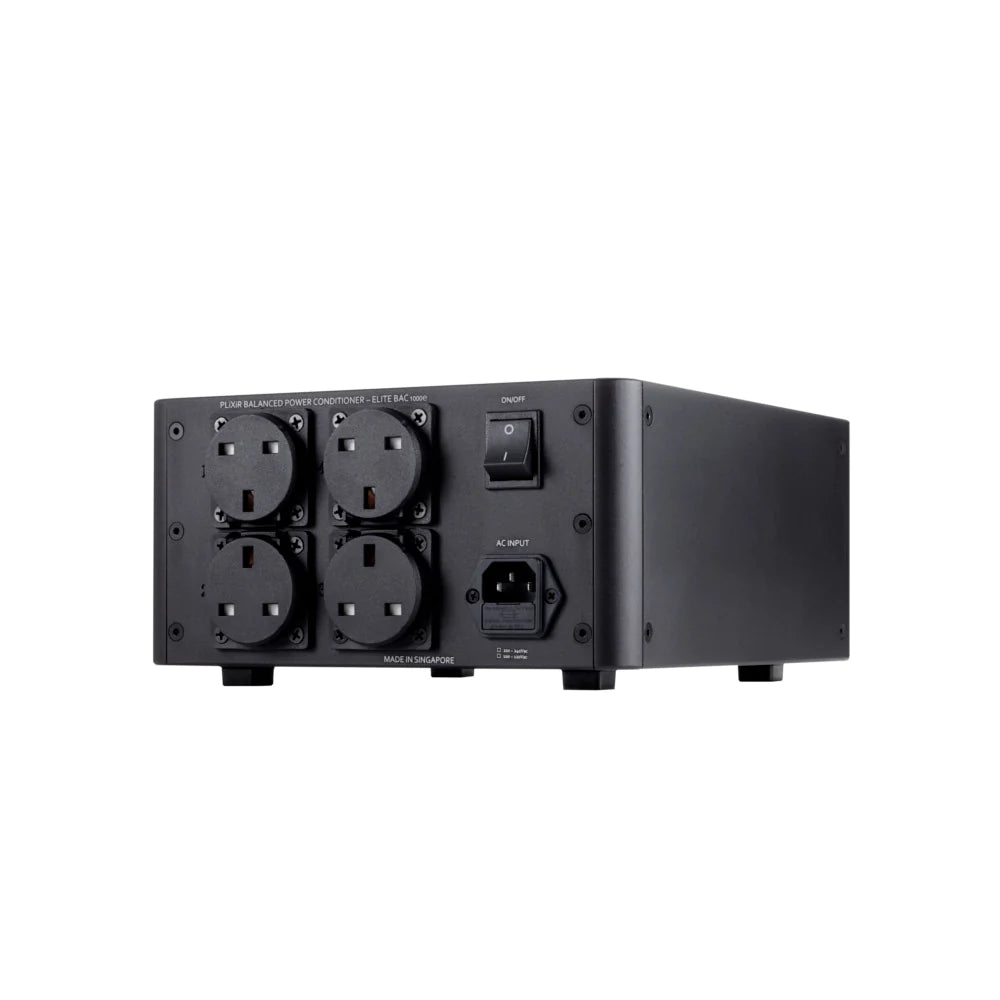

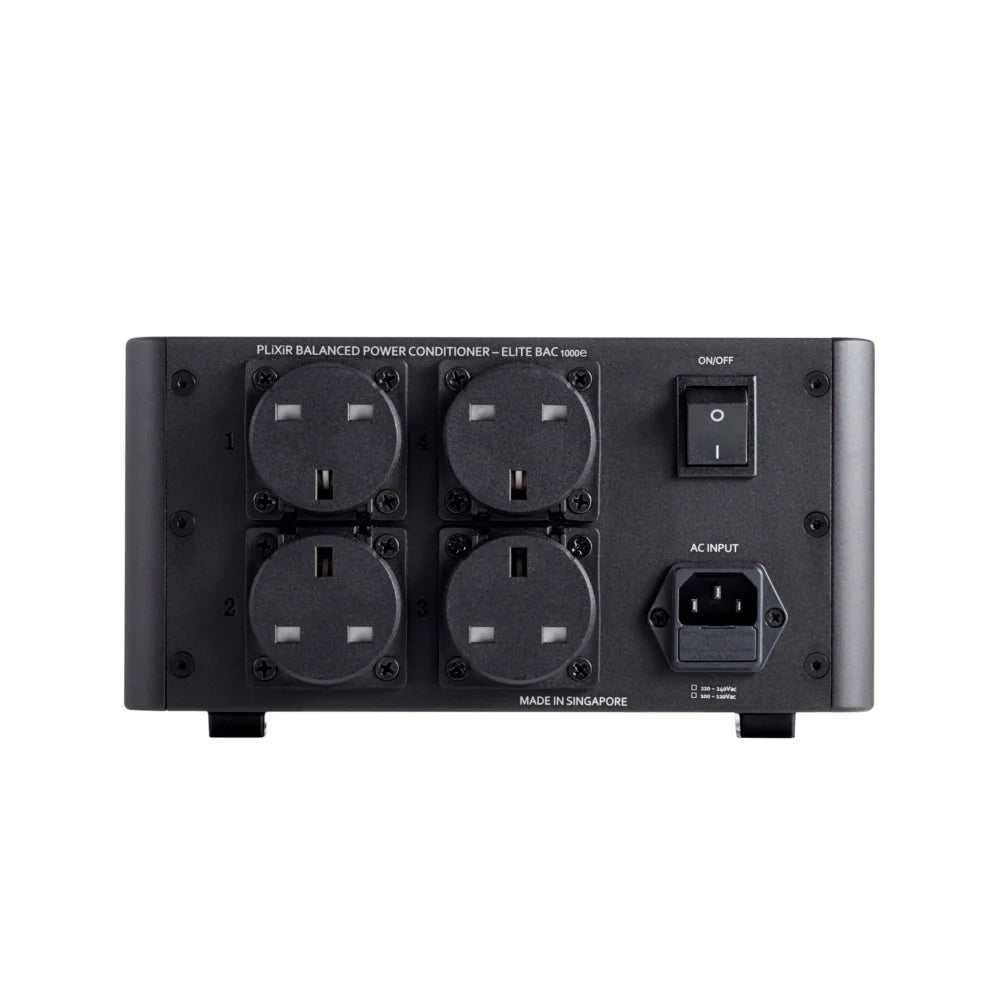

*Image of back view shows UK outlets
Elite BAC 1000 power conditioner is the best mains AC power conditioning product for your Hi-fi system; 1000Watts of Pure Tone* power capable to support up to 150W per channel stereo Hi-fi systems. It is designed to naturally reduce the incoming AC mains noise while improving the current delivery to your system. Based on a custom single winding balanced power transformer, ground loop current and noise is reduced to negligible level to equipment connected to it, making it suitable for sensitive equipment like turntable and phono stages. It is the ultimate grounding box for your whole Hi-fi system.
Other Features
Casing Extra rigid aluminium vault casing – Thick precision extruded and CNC machined aluminium slabs form the casing for the PLiXiR Elite BAC 1000. The bottom plate is a hefty 8mm thick plate of aluminium that anchors the whole casing.
Master-crafted Build and tested by Master craftsman -- Each BAC is hand-made by a master craftsman. As much as possible, all electrical connections are done by point to point direct soldering with minimal use of connectors and joints that degrades sound.
Noratel Transformer
Plixir only use custom-wound balanced transformers with Noratel XQ eXtra Quiet noise attenuation technology. The transformer has dedicated models for 120 Vac input and 230 Vac output, and each transformer only has a single winding for their intended application for the best performance possible.
- Easy attenuation of high-frequency noise
- Lower output impedence vs. the wall-socket mainsYour equipment can draw power effortlessly.
- Balanced circuit of the transformer improves common-mode noise rejection.
- Ground-referenced AC power supply to your equipment lowers noise floor and reduces common hum and hiss noise issues.
Specifications
VOLTAGE VARIANTS
currently available in 220-240V only.
Input 220~240Vac to output 220~240Vac balanced 50hz,4.3Amps peak continuous current delivery.
IDLE POWER CONSUMPTION
Less than 1.5% of Max power.
WEIGHT
17 kg
DIMENSIONS (IN MM)
240x260x130
CASING FINISH
Black anodized, sandblasted aluminium
