Plixir - Elite BAC 150 AC Power Conditioner- AU/NZ *

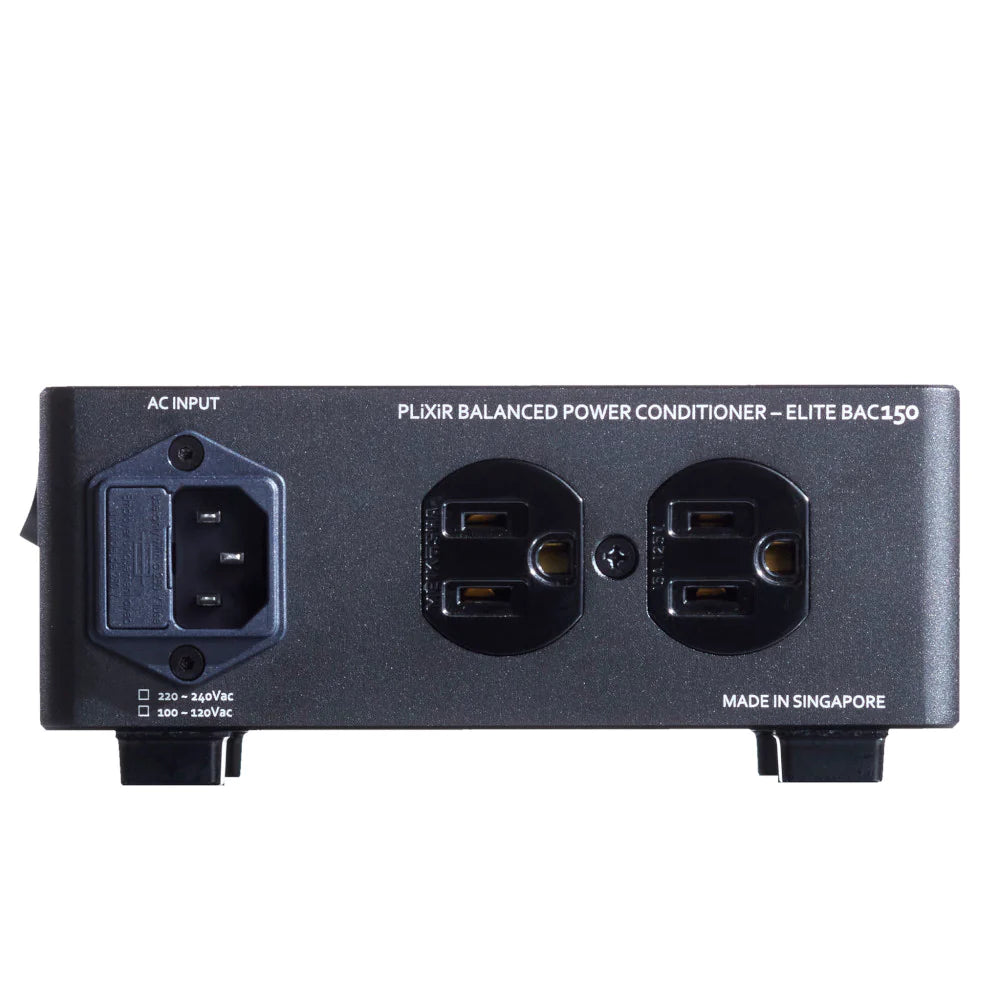

*Image of back view shown with USA Outlets
The PLiXiR Elite BAC 150 power conditioner is the best mains AC power conditioning product for your desktop Hi-fi system. Designed around our concept of Pure Tone*, it naturally cleans up the incoming AC mains supply and improves current delivery to your system. It uses a custom single-winding balanced power transformer to reduce ground-loop current and noise to negligible levels, making the PLiXiR Elite BAC the ideal pick for electrically sensitive equipment like turntables and phono stages.
This Elite BAC 150 is stackable up to 3 levels thus saves space and cabling while delivering cleanest power to your systems. please refer to Stackable section to customise the stack to best fit your needs. Otherwise, contact us for needed advise. Options are available to upgrade using Cryo-ed receptacle.
- Stackable AC power conditioner and DC power supply save space for equipment and cabling. Only one AC power cord is required to power the whole stack. This results in better sound due to neater setup and simpler cable routing.
- Optimized system grounding with balanced AC power transformers. Eliminate ground loop currents, loop area and noise from the power supply. Reduces hum and hiss issues from the system. Increases system resolution naturally.
To achieve true balanced transformer winding, Plixir partner with premier transformer-maker Noratel to custom-produce our balanced transformers based on their cutting-edge XQ eXtra Quiet noise attenuation technology.
In all aspects electrical and mechanical, this product is built with true craftsmanship. Electrical connections are done to the furthest extent using point-to-point direct soldering, minimising the use of sound-degrading connectors and joints.
Building a conditioner in such a way is more labour-intensive than conventional methods, but the result is worth it: better sound quality, greater purity of tone, stronger power delivery and finer inner details. The music just flows better – the perceptible Pure Tone* difference.

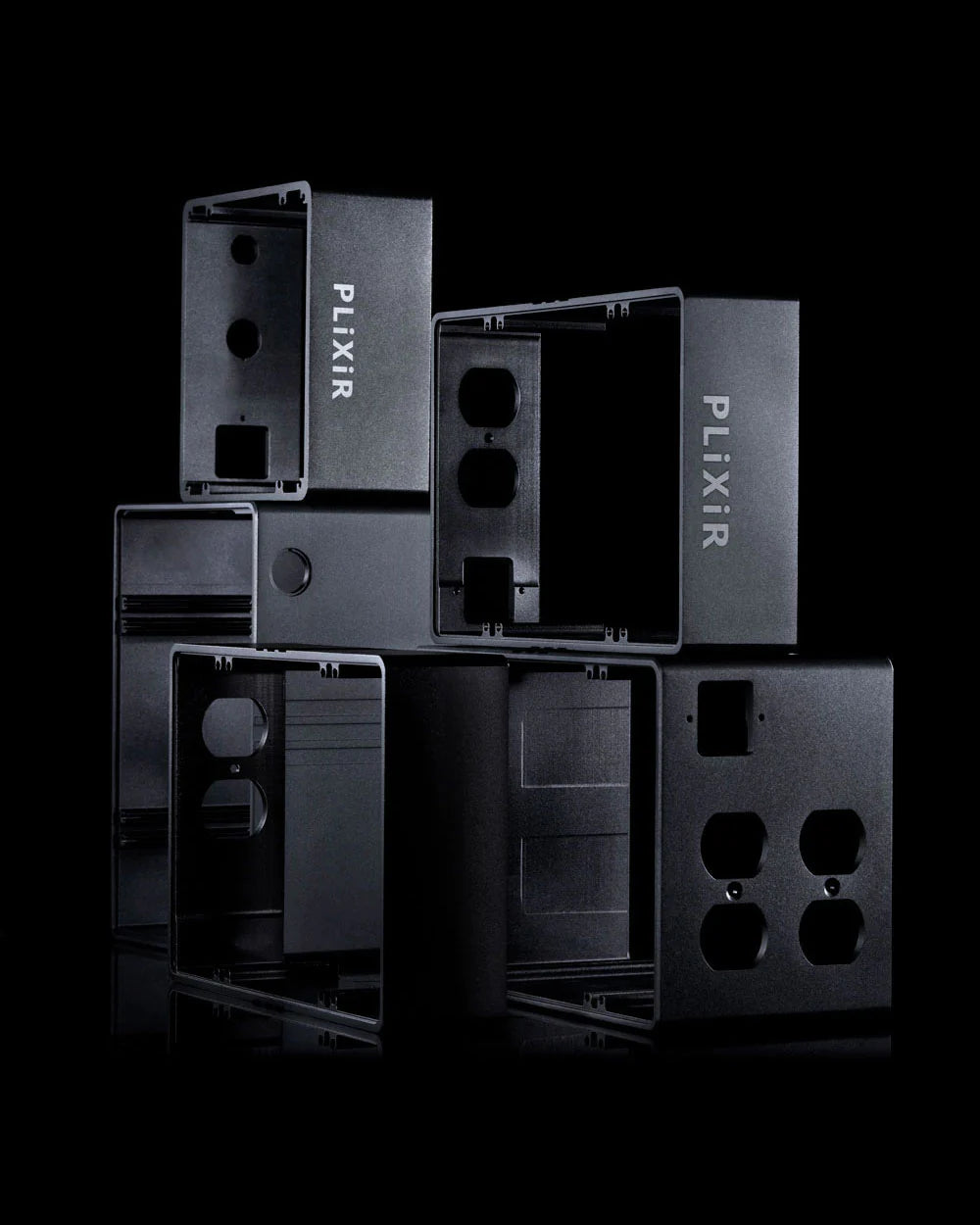

Casing Extruded, 5mm-thick aluminium casing body. Thick metal top and bottom plates provide an ultra-rigid casing that guards against the sound-degrading effects of mechanical vibrations and protects the transformer from external damage.
Master-crafted Individually built and tested by hand by master craftsmen.
TWO VOLTAGE VARIANTS
1. Input 100~120Vac to output 100~120Vac balanced 60hz.
2. Input 220~240Vac to output 220~240Vac balanced 50hz.
IDLE POWER CONSUMPTION
Less than 1.5% of Max power.
Black anodized, sandblasted aluminium
DIMENSIONS (IN MM)
230 x 160 x 70
