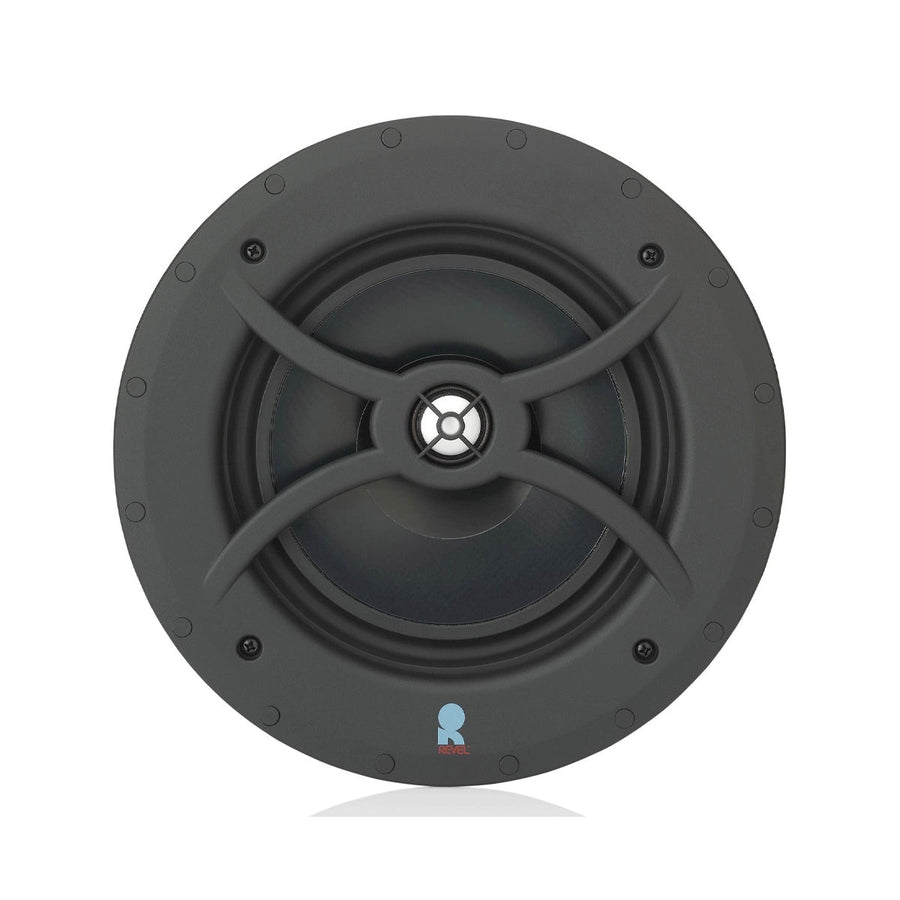

Revel C283LP Low Profile In-Ceiling Loudspeaker

Regular price$599.00
10 interest free payments from $59.90 with



Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic colouration and their freedom from distortion over an extraordinarily wide dynamic range.

For true audiophile performance and easy timbre-matching to Revel in-wall, floorstanding, monitor and center-channel loudspeakers, all models* feature Revel low-distortion motor-structure designs with aluminum-dome tweeters and Micro-Ceramic Composite (MCC) cone woofers. This allows for easy integration into home cinema systems.



  • Long-throw woofers with rubber surrounds provide high output with low distortion
  • A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • A high-order crossover network delivers accurate timbre reproduction
  • Sleek look integrates easily into any decor
  • C-2 Installation Mechanism Compatible with Wall Material Thickness Range: 13- 25mm
  • Preconstruction Bracket and Fire-Rated
  • Includes Both Round and Square Zero-Bezel Magnetic Grilles



  • Description: Low Profile 8” In-Ceiling Loudspeaker
  • High-frequency Driver Components: 1 '' Aluminium Tweeter with Waveguide
  • Low-frequency Driver Components: Low Profile 8" Aluminum Cone, Cast-polymer Frame Woofer
  • Sensitivity: 87dB @ 2.83V, 1 m
  • Recommended Amplifier Power: 10-100 Watts
  • Cutout Dimensions: 244mm
  • Round Grille Finished Dimension (D): 272mm
  • Square Grille Finished Dimensions (H x W): 272 mm x 272 mm
  • Mounting Depth: 68.3mm
  • Net weight: 2.71kg
