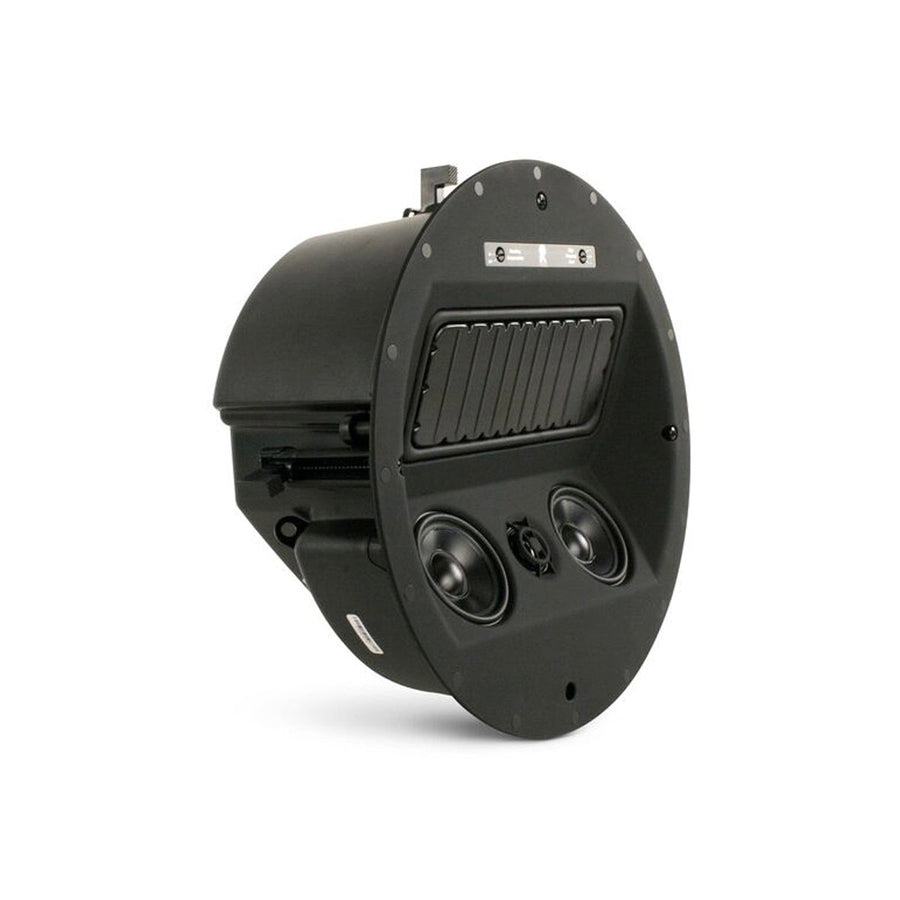

Revel C763L In-Ceiling Loudspeaker

Regular price$1,499.00
10 interest free payments from $149.90 with



Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic colouration and their freedom from distortion over an extraordinarily wide dynamic range.

For true audiophile performance and easy timbre-matching to Revel in-wall, floorstanding, monitor and center-channel loudspeakers, all models* feature Revel low-distortion motor-structure designs with aluminum-dome tweeters and Micro-Ceramic Composite (MCC) cone woofers. This allows for easy integration into home cinema systems.



  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
  • Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles



  • Description: 3 Way In-Ceiling Loudspeaker
  • High-frequency Driver Components: 1" Aluminium High-Output Tweeter with Waveguide
  • Mid-range Driver Components: Two 3.5" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminium Frame, High-Output Midranges
  • Low-frequency Driver Components: 7.8" x 3.4" Micro-Ceramic Composite (MCC) Diaphragm Flat-Panel Woofer
  • Sensitivity: 86dB @ 2.83V, 1 m
  • Recommended Amplifier Power: 10-200Watts
  • Cutout Dimensions: 287mm
  • Round Grille Finished Dimension (D): 272mm
  • Mounting Depth: 145mm
  • Net weight: 1.8kg
