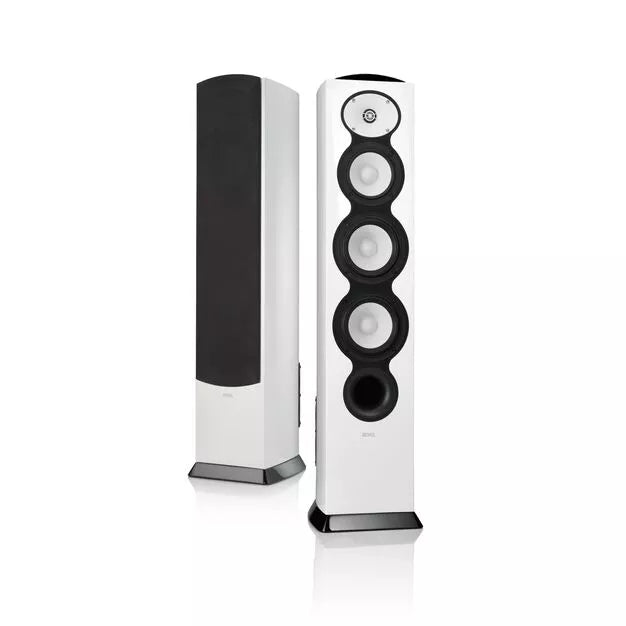

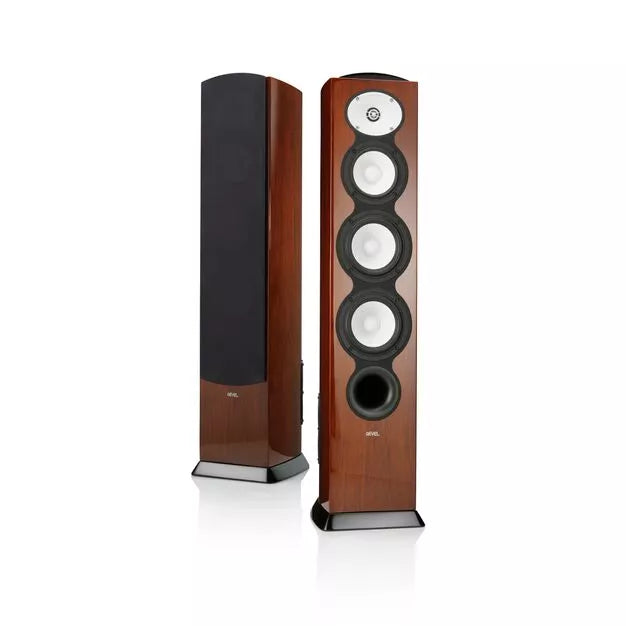

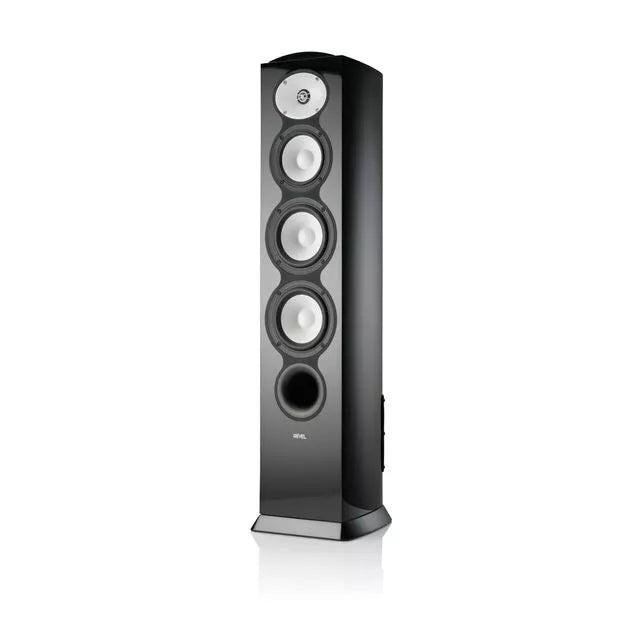

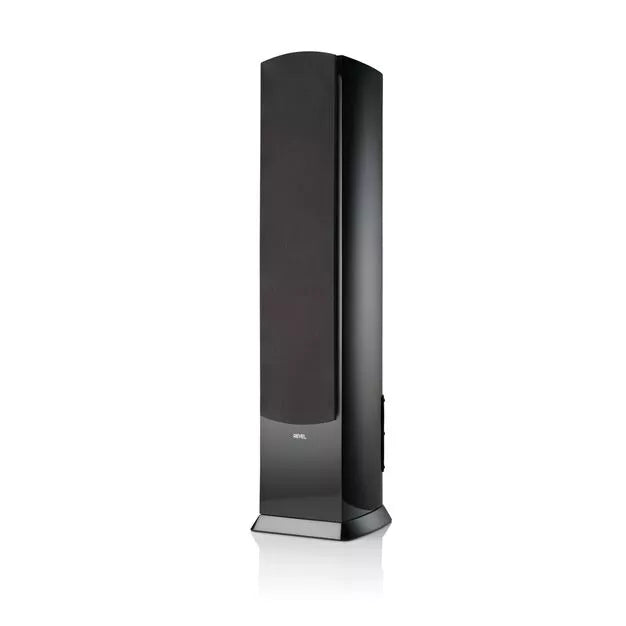

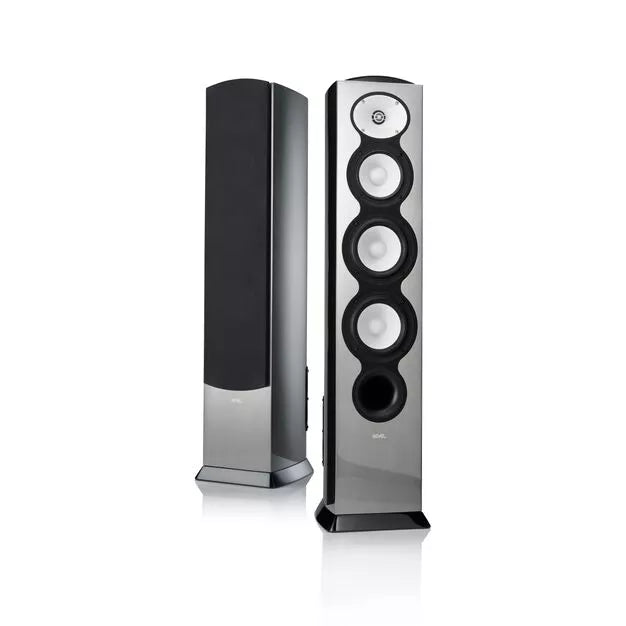

The Revel F226Be joins the award-winning PerformaBe series as a compact floorstanding loudspeaker. As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminium Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminium or titanium tweeters.
| Type | 3-way dual 6.5" floorstanding loudspeaker |
|---|---|
| Low-frequency transducer | Two 6.5" (165mm) Deep Ceramic Composite aluminium cones, with cast frames |
| Midrange transducer | 5-1/4" (130mm) Deep Ceramic Composite aluminium cone, with cast frame |
| High-frequency transducer | 1" (25mm) Beryllium dome, with acoustic lens waveguide |
| Recommended amplifier power range | 50 – 200 Watts RMS |
| Frequency response | 44 Hz - 40 kHz (-6dB) |
| Low-frequency extension | 33Hz (–10dB); 36Hz (–6dB); 48Hz (–3dB) |
| Nominal impedance | 8 ohms |
| Sensitivity (2.83V/1m) | 90 dB |
| Crossover frequencies | 260Hz; 2.1kHz |
| Enclosure type | Bass-reflex via front-mounted port |

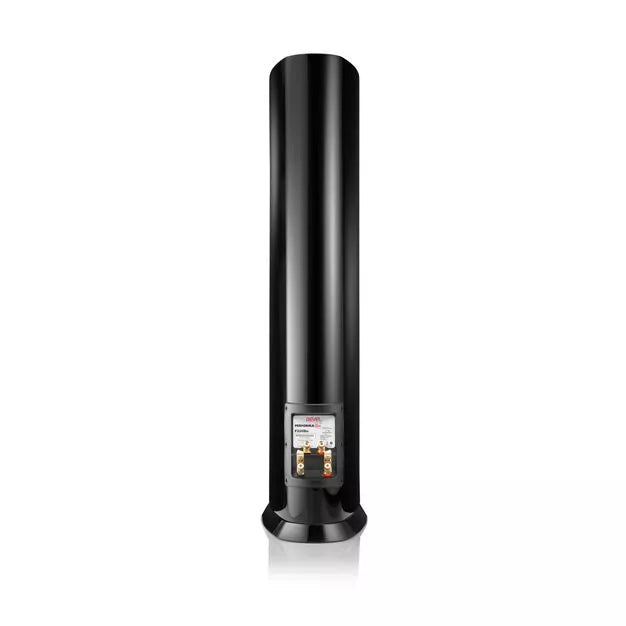

| Inputs | Dual gold-plated binding posts with shorting straps |
| Available high-gloss finishes | Black, White, Metallic Silver, and Walnut |
| Dimensions – with grille (H x W x D) | 41.3” x 9.8” x 13.7” (1050mm x 249mm x 347mm) |
| Cabinet Weight | 58.0 lb (26.4 Kg) |
| Grille Weight | 0.8 lb (0.4 Kg) |
