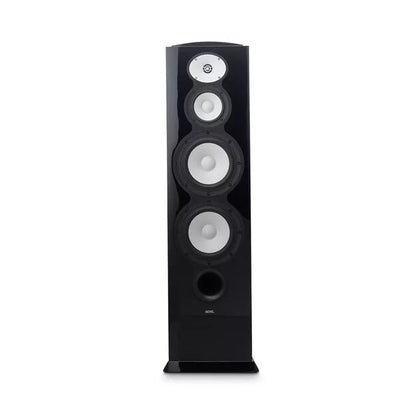

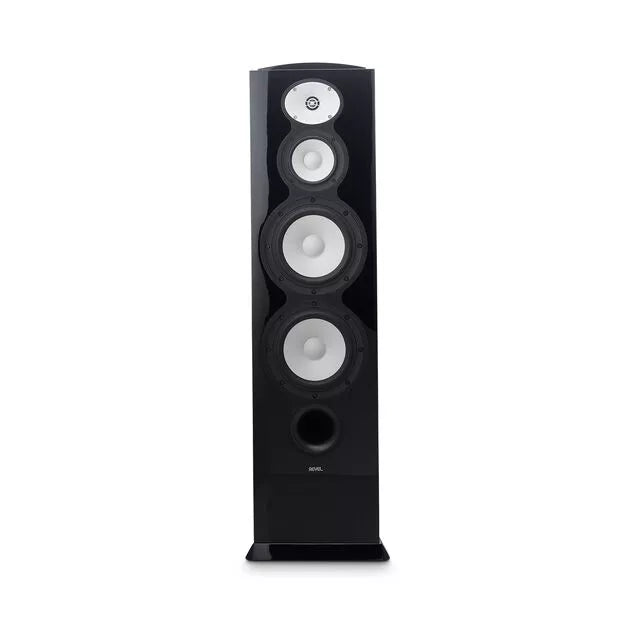

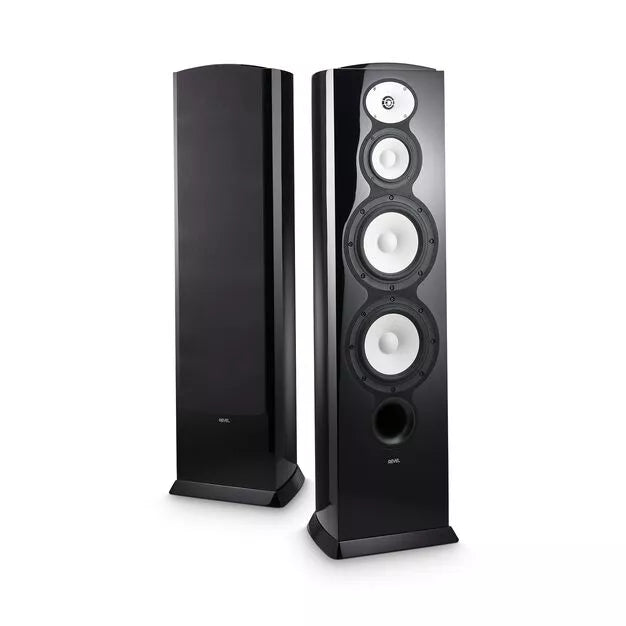

Revel F228Be 3-way Dual 8" Floorstanding Loudspeaker
The Revel Performa F228Be is a powerful and elegant 3-way, dual 8-inch floorstanding loudspeaker that sets a new world standard in performance. Using the award-winning Performa3 F208 as the starting point, virtually every component was re-engineered to extract the finest details, the highest level of performance, and the most emotion possible. Featuring an all-new Beryllium tweeter, the F228Be delivers unparalleled detail and accuracy with an expansive and cohesive soundstage.
Features
-
1-inch Beryllium Dome Tweeter
-
High-order Crossovers with Film Capacitors and Air Core Inductors
-
5th-generation Acoustic Lens Waveguide
-

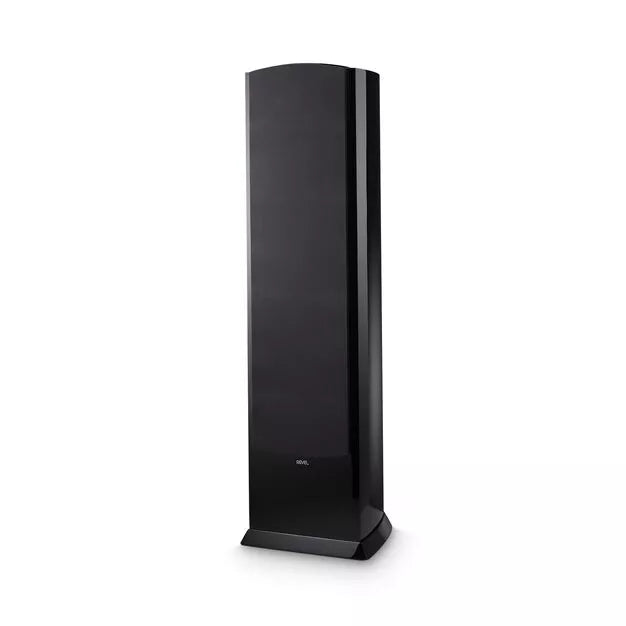

Magnetically Attached Grilles
-
DCC Cone Midrange and Woofers
-
4 Premium High-gloss Finishes Available
Specifications
High-Frequency Driver Components |
1" Beryllium dome with acoustic lens waveguide |
Mid-Frequency Driver Components |
5.25" DCC Aluminium cone with cast frame |
Low-Frequency Driver Components |
Dual 8" Deep Ceramic Composite (DCC) Aluminium Cones with cast frames |
Frequency Response (-6dB) |
33Hz - 40kHz |
Low-frequency Extension |
30 Hz (-10dB); 33 Hz (-6dB); 44 Hz (-3dB) |
Recommended Amplifier Power |
50 - 350 Watts RMS |
Crossover Frequencies |
260Hz; 2.1kHz |
Nominal Impedance |
8 Ohms |
Sensitivity |
90dB (2.83V @1M) |
Finishes |

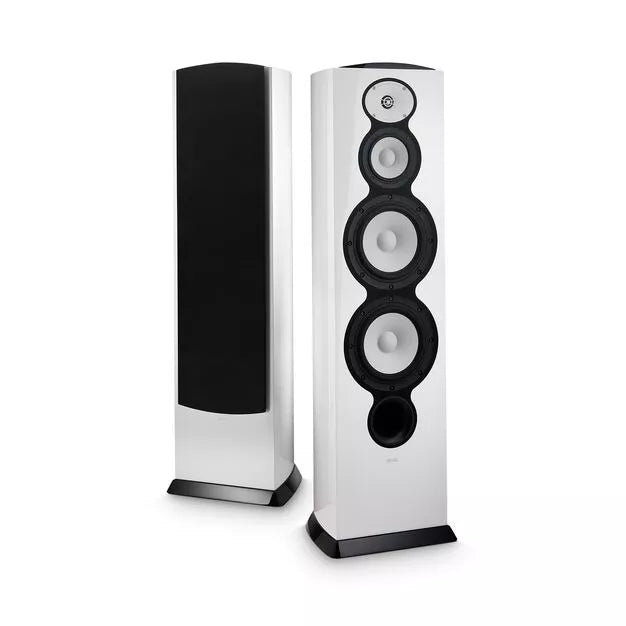

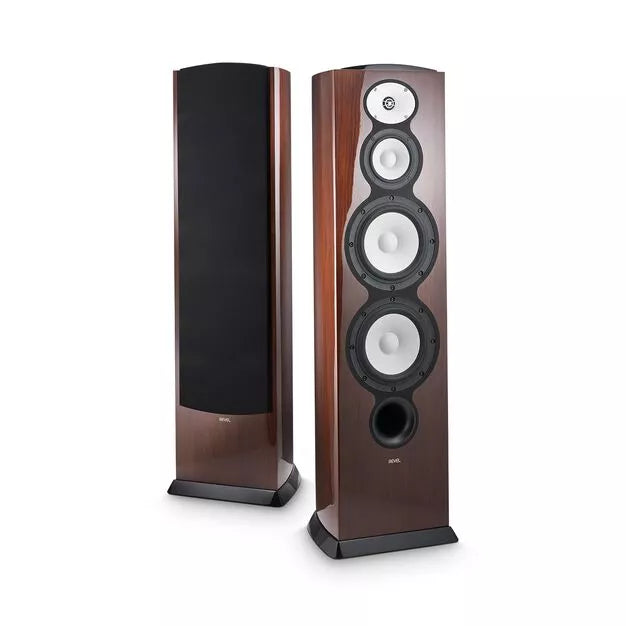

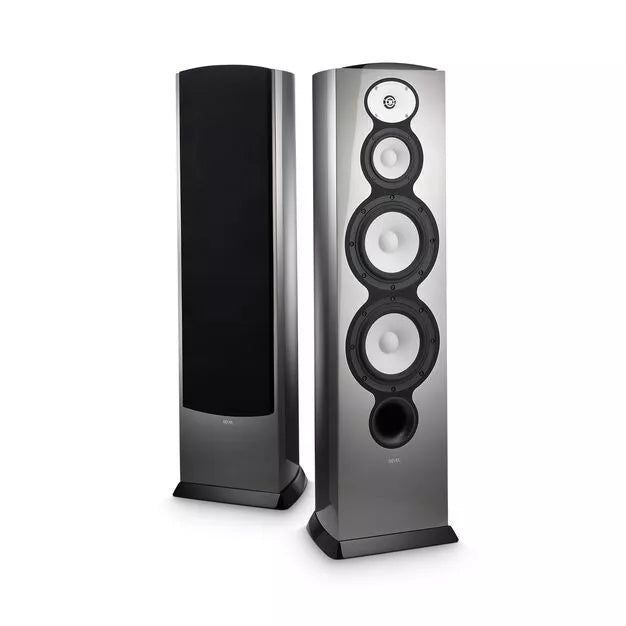

High-gloss Black, White, Walnut and Metallic Silver |
Dimensions (H X W X D) |
46.6" x 13.5" x 14.8" (1182.5mm x 341.8mm x 375.3mm) |
Net Weight |
82 lbs / 37.2kg |
Audio Specifications
High-Frequency Driver Components |
1" Beryllium dome with acoustic lens waveguide |
Mid-Frequency Driver Components |
5.25" DCC Aluminium cone with cast frame |
Low-Frequency Driver Components |
Dual 8" Deep Ceramic Composite (DCC) Aluminium Cones with cast frames |
Frequency Response (-6DB) |
27Hz - 44kHz |
Recommended Amplifier Power |
50 - 350 Watts |
Crossover Frequencies |
260Hz; 2.1kHz |
Nominal Impedance |
8 Ohms |
Sensitivity |
90dB (2.83V @1M) |
Finishes |
High-gloss Black, White, Walnut and Metallic Silver |
Dimensions (H X W X D) |
46.6" x 13.5" x 14.8" (1182.5mm x 341.8mm x 375.3mm) |
Net Weight |
82 lbs / 37.2kg |
