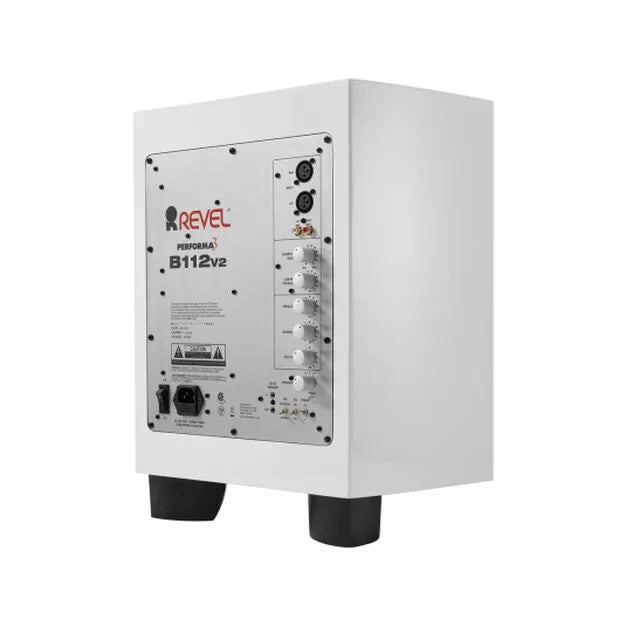

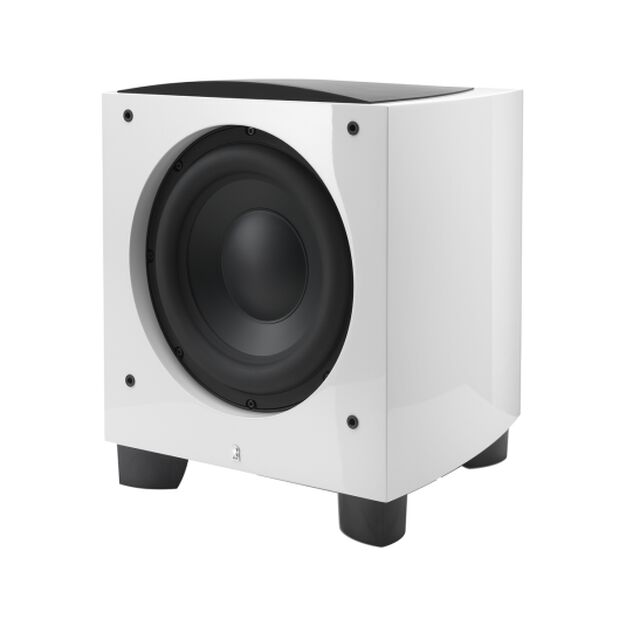

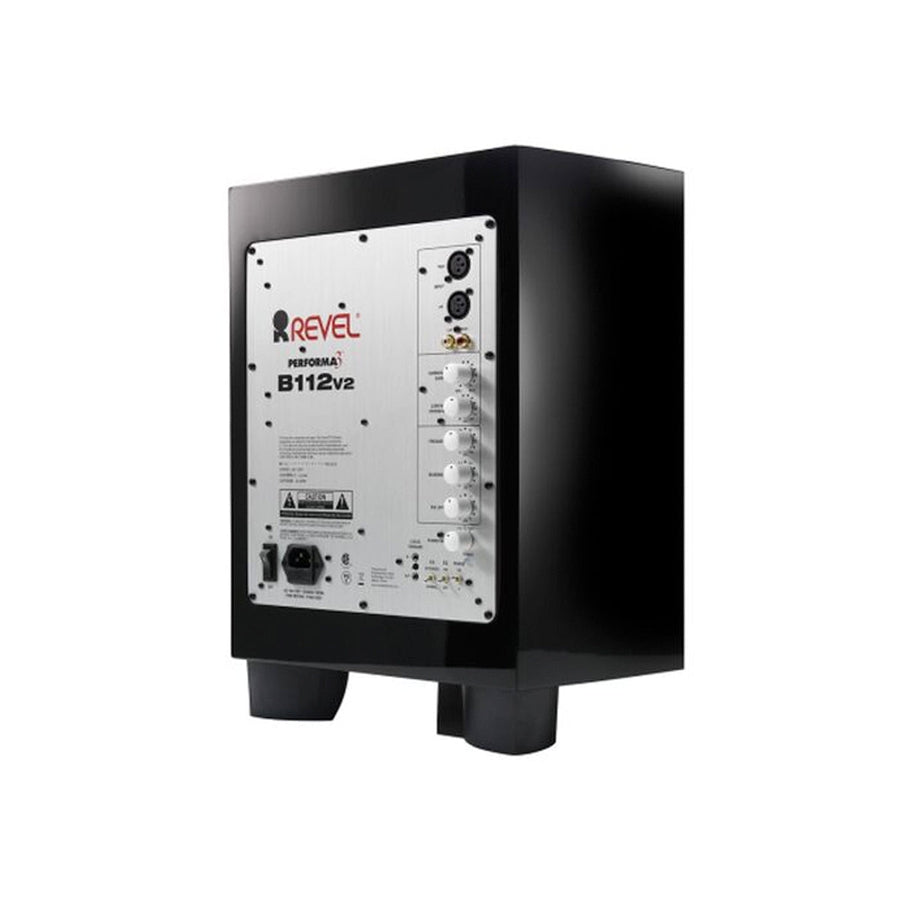

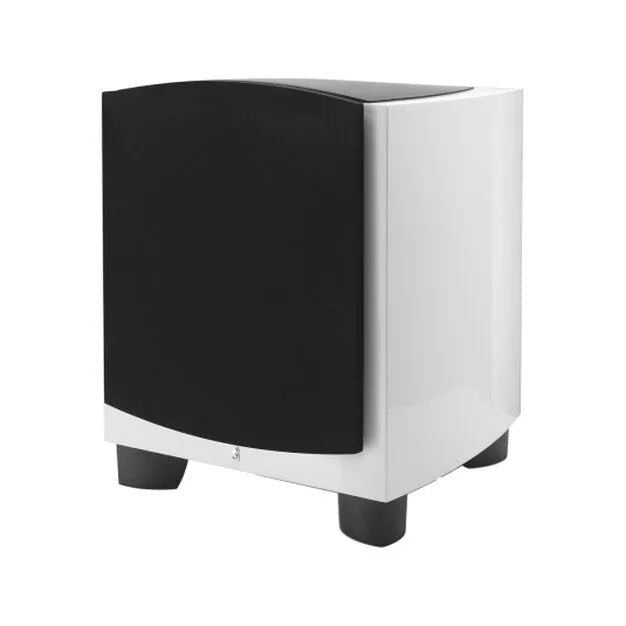

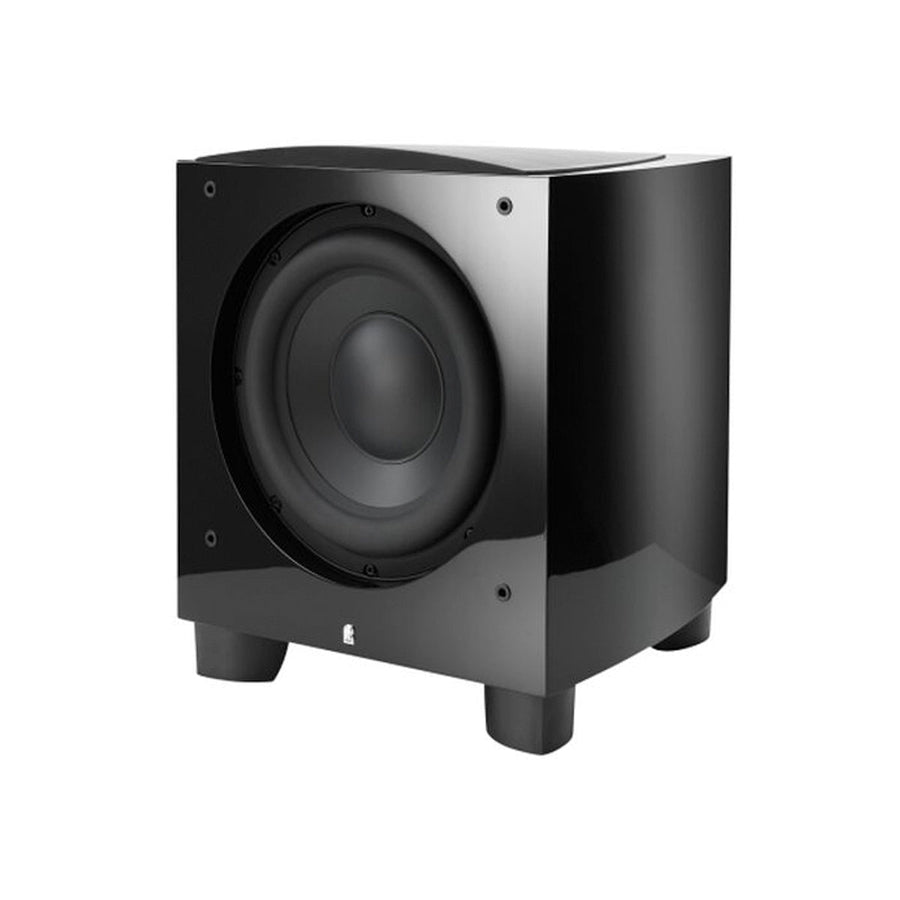

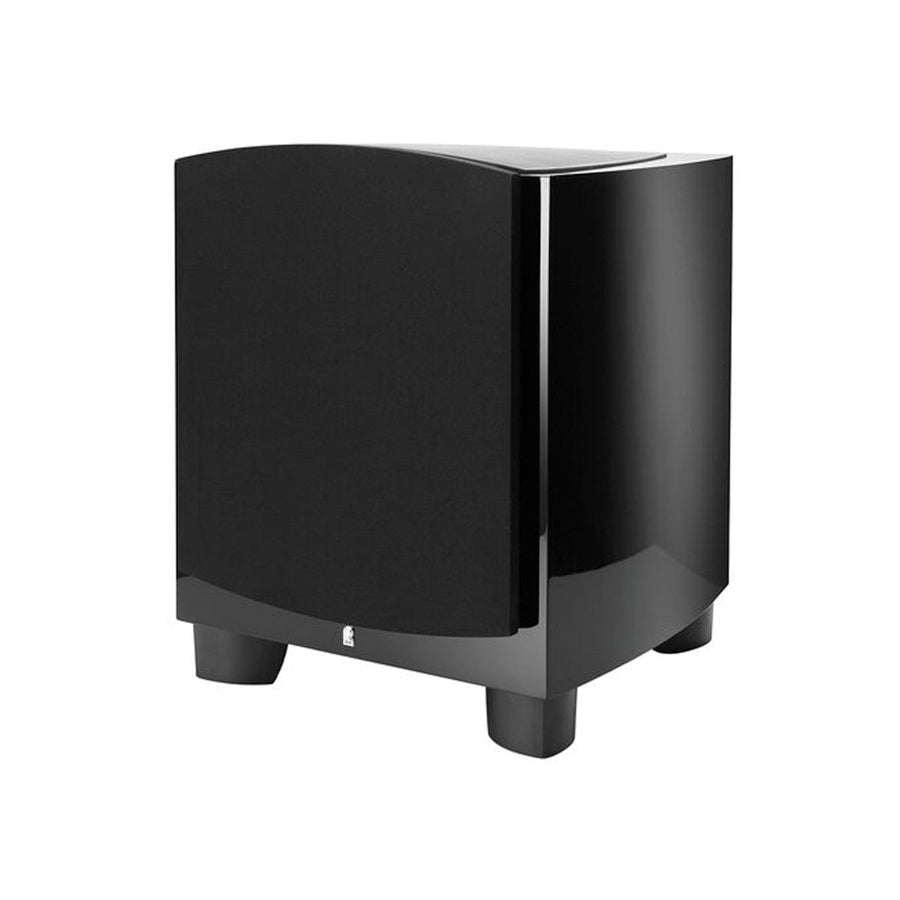

Revel Performa3 B112v2 12” 1000W Powered Subwoofer


Regular price$6,499.00
/
10 interest free payments from $649.90 with

Colour
Optional - APERTA SUB – Isolation Platform - Each





Revel Performa3 B112v2 Subwoofer - Pair

The Revel Performa3 B112v2 subwoofer sets a new standard for low frequency detail, musicality and refinement. Featuring brute force visceral impact and high fidelity bass performance of unprecedented sophistication, the B112v2 is a must-have for home entertainment systems.

The Revel Performa3 B112v2 is the newest generation of Revel’s popular and successful B112 subwoofer, outfitted with the latest advancements in acoustic science and technology. At the heart of the B112v2’s engineering is a new and improved woofer with 82% more linear excursion than the B112. The transducer’s 19.2 lb Klippel-optimized magnet assembly features a double-stacked ceramic 5 magnet with a flared vent for improved airflow. As a result, turbulence is reduced, output is increased, and distortion is minimized. Additional cooling vents in the back plate increase power handling while reducing compression. The cast aluminium frame is fully vented to minimize acoustic losses from excessive back pressure. A 50mm two-layer copper voice coil wound on a high heat-tolerant fiberglass former gives the transducer significant range of travel. The parametric EQ is now localized onboard, rather than software-based, for easy adjustments in real time, as you listen.

Specifications

Driver Components Coated paper/pulp cone with 50mm two-layer copper voice coil, vented ceramic 5 magnet assembly and vented die-cast aluminum frame
Amplifier Power 1000 Watts RMS
Crossover Frequencies 50Hz - 150Hz low-pass filter with LFE bypass
Low Frequency Extension (normal mode) 24Hz (-10dB); 27Hz (-6dB); 29.5Hz (-3dB)
Low Frequency Extension (extended mode) 23Hz (-10dB); 26Hz (-6dB); 29Hz (-3dB)
Input Sensitivity 400mV (full power)/20k Ohms (balanced); 14k Ohms (unbalanced)
Enclosure Type Sealed
Finishes High-gloss black and white
Height 18.44” (468mm)
Width 15.94” (404mm)
Depth 16.56” (420mm)
Weight 64.8 lbs (29.4kg)
Inputs Balanced (XLR), unbalanced (RCA)

    Optional Extra, Aperta SUB – Isolation Platform

    The Aperta Sub provides a high degree of isolation and cleans up the muddy low frequency sound, resulting in tighter bass response and greater clarity. The unique patented isolators are directional and are designed to be positioned with the logo facing forward, to resist lateral deflection and oscillations, for greater accuracy and focus.

    The Aperta Sub has a low-profile design at 10.5” (265mm) wide x 11.5” (290mm) depth x 1.3” (33mm) height and is designed to be used with front firing and side-firing subwoofers that weigh up to 80 lbs (36.3 kg). Innovative shape allows the Aperta Sub to be positioned directly underneath the subwoofer cabinet without interference with the existing subwoofer feet.

    Carpet disks are included with the Aperta Sub for use on carpeted surfaces. The carpet disks provide a strong connection through the carpet to provide a solid foundation for the Aperta Sub.

    Aperta Sub - Isolation Platform Specifications

    Dimensions

    (W x D x H) 10.5” x 11.5” x 1.3” (265mm x 290mm x 33mm)

    Weight capacity

    80lbs (36.3kg)

    Includes

    1x Aperta Sub & 4x Carpet Discs
