VALUE PRESERVATION

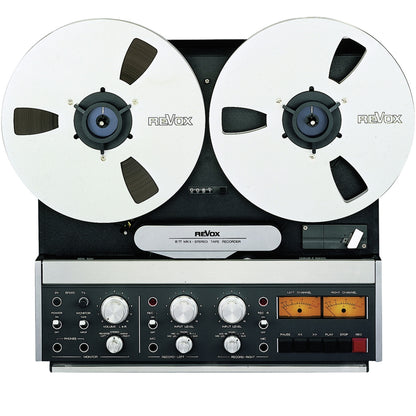

Even today, a B77 tape recorder can be integrated into the latest Revox Multiuser System and can be controlled via Revox App. Because sustainability is important to us.
QUALITY PROMISE
“Every Revox product is a safe investment in a long life with music – Premium Service included.” Company founder Willi Studer insisted not only on the highest product quality, but also on a service and support quality that guarantees longevity and high value retention.
BUILT FOR ETERNITY
At Revox, we make no compromises when it comes to the reliability and durability of our products. Due to the well-founded knowledge of our employees, function tests with original Revox | Studer measuring instruments, and a unique spare parts warehouse, this is best possible in the Revox factory.
Because only the best is good enough.
Technical Details
Dimensions
weight (kg): 17
depth (mm): 207
height (mm): 414
width (mm): 452
Drive
Three-motor drive
2 AC coil motors
1 AC sound motor electronically controlled
Noise-to-voltage ratio
>64 dB (9,5cm/sec), >67 dB (19cm/sec)
Frequency response
30 Hz bis 20 kHz + 2 dB bis – 3 dB, 30 Hz bis 16 kHz + 2 dB bis – 3 dB
Tape speed
HS 19,05/38,1 cm/s
NS 9,5/19,05 cm/s
LS 4,75/9,5 cm/s
SLS 2,38/4,75 cm/s
Power consumption
max. 80 VA
Synchronisation fluctuation
38 cm/s < 0,06 % 9.5 cm/s < 0,10 % 19 cm/s < 0,08 % Equipment
11 ICs, 1 optocoupler, 4 triacs, 60 transistors, 33 diodes, 5 LEDs, 2 bridge rectifiers, 3 relays
Additional specifications
Slip: max. 0.2 %
Rewind time: 135 sec. for 1100m tape
Coil size: up to 26.5 cm (10.5 inch)
