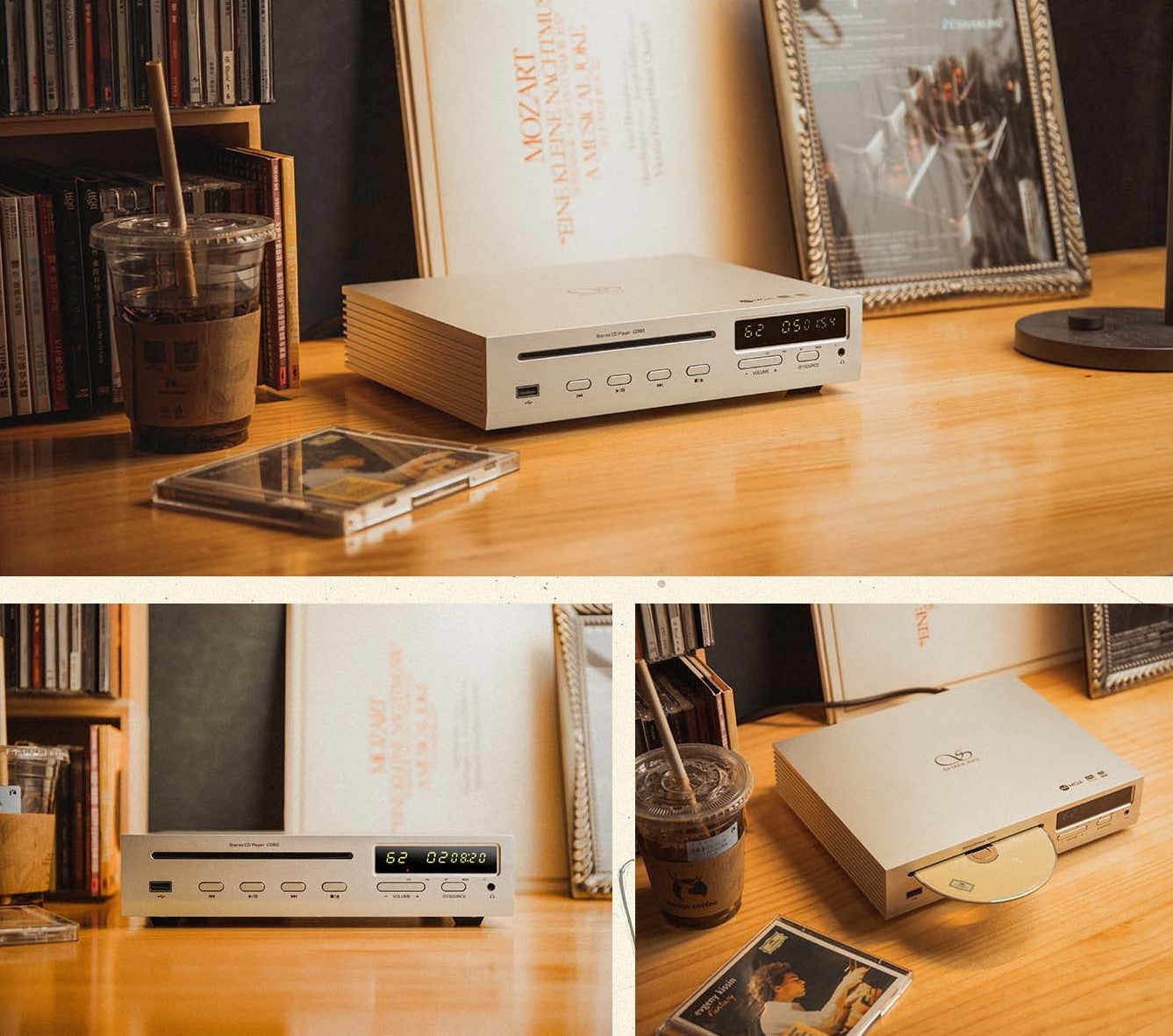

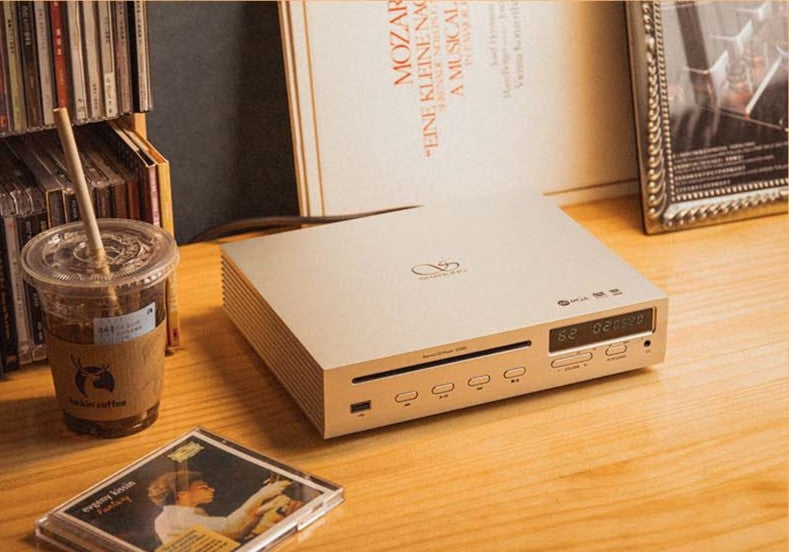

Designed with classic 1990s CD players in mind, CD80 keeps it all simple. There is no touchscreen, just mechanical buttons and a digital tube display for familiar controls. Even it's CD drive is an old-school slot loader, just with proper damping for vibration-free CD playback.
General
• Dimensions: 250 x 205 x 52 mm / Weight: 2.4kg (CA80 2.8kg)
• Platform: Ingenic X1000 • DAC Chip: ESS ES9219MQ • Bluetooth version: Bluetooth 5.0 with LDAC, AAC, SBC
• Display: Digital Tube Display
• Control: On player Buttons, IR Remote, Eddict Player App

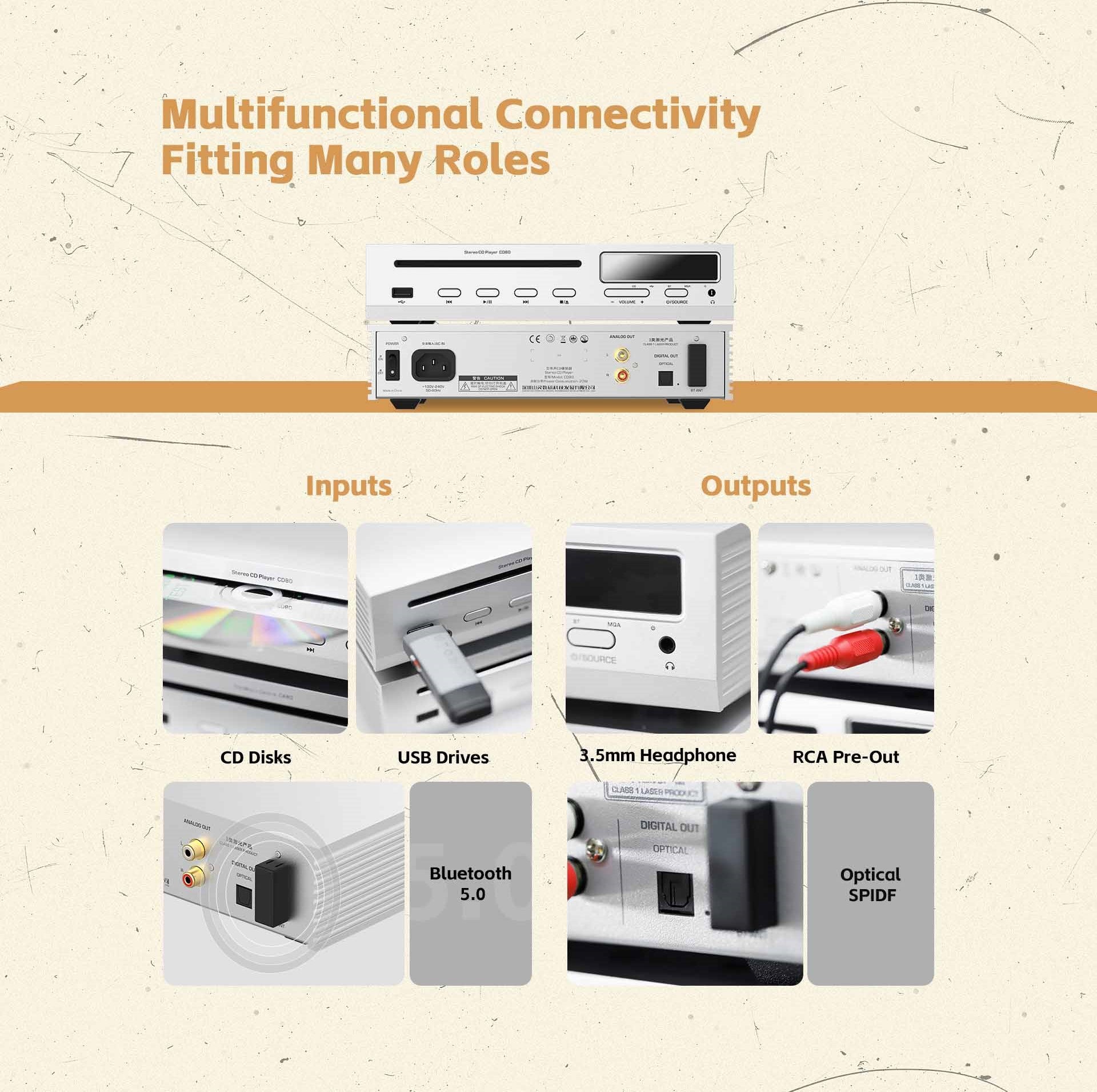

• Inputs: CD Disc, USB Drive, Bluetooth

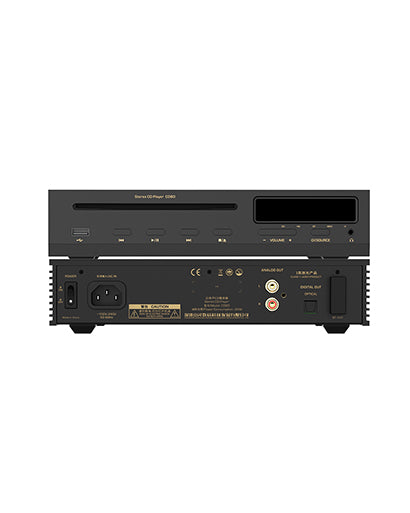

• Outputs: RCA Pre-Out, Optical SPDIF, 3.5mm Headphone Jack, Speaker
Terminals (CA80 only)
• USB Drive Compatible Formats: DSD, DXD, APE, FLAC, ALAC, WAV, AIFF,
AIF, DTS, MP3, WMA, AAC, OGG, MP2, M4A, AC3, OPUS, TAK, CUE
• USB Drive Hi-Res Support: Up to 32-bit, 384 kHz & DSD256
Headphone Output
• Headphone Output: 130mW @ 32Ω • Frequency Response: 20Hz to 40kHz (-0.2dB)
• THD+N: 0.0015%
• Channel Separation: 75 dB @ 32Ω • Dynamic Range: 119 dB
• Signal to noise ratio: 118 dB • Output Impedance: less than 1Ω
RCA Outputs
• Output Level: 2.0 VRMS • Frequency Response: 20Hz to 40kHz (-0.2dB)
• THD+N: 0.0008%
• Channel Separation: 110 dB • Dynamic Range: 117 dB
• Signal to noise ratio: 116 dB
Speaker Output (CA80 only)
• Output Power: 2 x 50w @ 8Ω / 2 x 100w @ 4Ω
• Frequency Response: 20Hz to 40kHz (-0.2dB)
• THD+N: 0.003%
• Separation: 80 dB @ 32Ω
• Signal to noise ratio: 108 d
