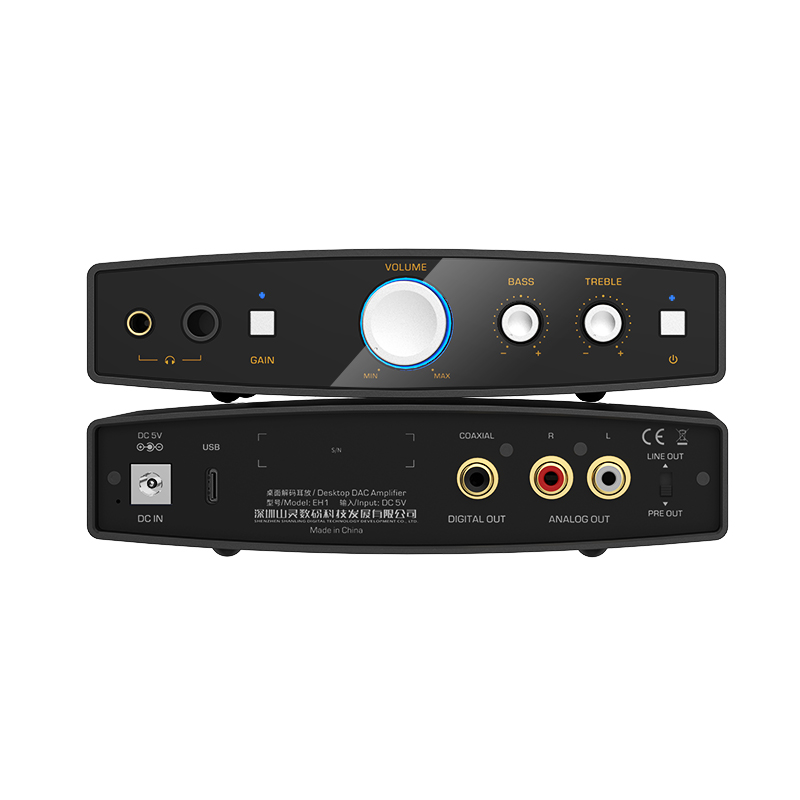

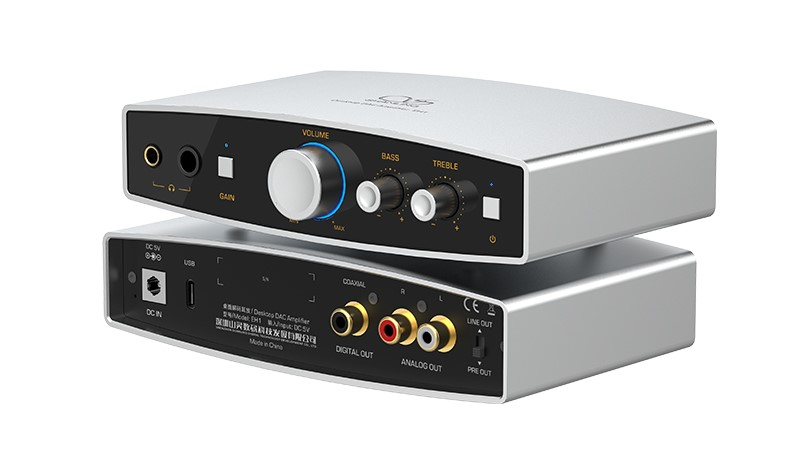

Shanling EH1 Desktop DAC Amplifier
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
Shanling EH1 is probably the simplest device we released in recent memory. No screens, no complicated systems, just a simple curved aluminium body, two headphone outputs and few wheels and buttons. Powered by either USB-C or 5V DC, its Cirrus Logic DAC and SGM amplifiers provide fast and clean sound, that can be easily adjusted with the dedicated Treble & Bass controls. Then add to it SPDIF coaxial Out and Line-Out/Pre-Out to get a great sounding and powerful little package.
Shanling EH1 Key Features
- Cirrus Logic CS43198 DAC
- Dual SGM8262 Headphone Amplifiers
- Up to 1015 mW @ 32 Ohm Output Power
- Treble (+-10dB) & Bass (+-6dB) Tone Control
- Hi-Res 32 bit / 768 kHz & DSD512
- USB-C Digital Input
- 6.35mm & 4.4mm Headphone Outputs
- RCA Output with switchable Line-out / Pre-out mode
- SPDIF Coaxial Digital Output
- Power by USB C or 5V DC Power
- New Curved Design, Aluminium Construction
Specification:
Size: 156X90X36.5mm
Weight: 392.5g
6.35mm Single-Ended Headphone Out:
Output Power:
High Gain: 250mW@32Ω
High Gain (DC Power): 399mW@32Ω
Frequency Response: 20Hz-40kHz (-1.5dB)
THD+N: 0.007% (A-Weight@1Vrms High Gain@32Ω)
Dynamic Range: 119dB
Channel Separation: 75dB
Signal-to-Noise Ratio: 119dB (A-Weight High Gain)
Noise: 110dB
Output Impedance: 0.4Ω
4.4mm Balanced Headphone Out:
Output Power:
Low Gain: 250mW@32Ω
High Gain: 980mW@32Ω
High Gain (DC Power): 1015mW@32Ω
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.008% (A-Weight@1Vrms High Gain@32Ω)
Dynamic Range: 119dB
Channel Separation: 99dB
Signal-to-Noise Ratio: 119dB (A-Weight High Gain)
Noise: 104dB
Output Impedance: 0.8Ω
RCA Out (Line Out):
Output Level: 2.38V
Frequency Response: 20Hz-40kHz (-1.2dB)
THD+N: 0.0007% (A-Weight High Gain)
Dynamic Range: 123dB
Channel Separation: 114dB
Signal-to-Noise Ratio: 122dB (A-Weight High Gain)
Noise: 116dB
