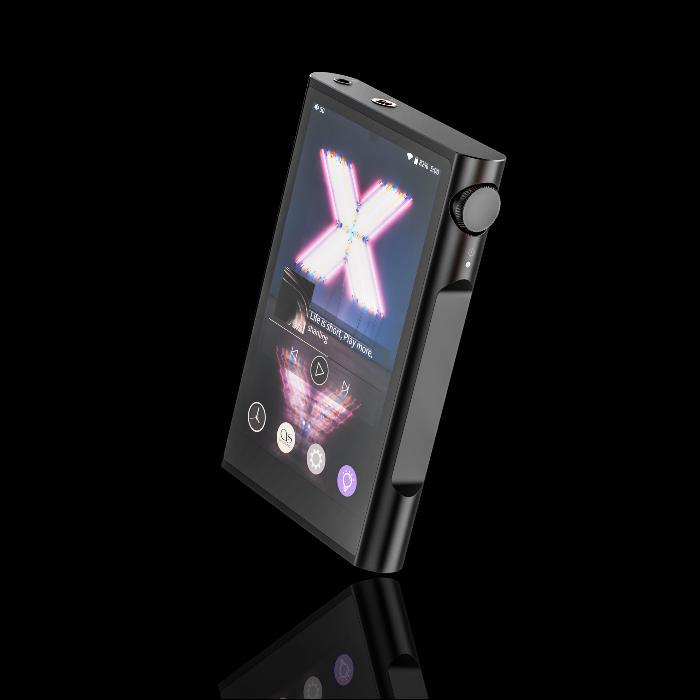

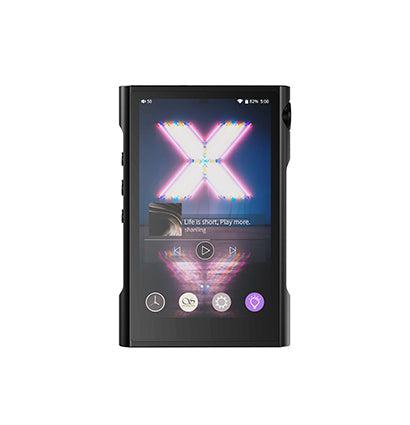

Shanling M3X Portable Player
Dual ES9219C ES9219C - Efficient and Great Sounding
M3X is the first portable player to utilize a brand new generation of an extremely efficient Sabre DAC/AMP from ESS. This provides you with the traditional Shanling's Hi-Fi sound, while assuring an even better battery life and adding a hardware support MQA.
Two-way Bluetooth and USB DAC
Connect M3X to your Bluetooth headphones or speakers and enjoy great sound, thanks to the LDAC support.
Features
- Qualcomm Snapdragon 430
- Open Android OS
- 2GB RAM + 32GB ROM + MicroSD slot
- FPGA technology
- KDS Oscillators
- DSD 256 - 32bit/384kHZ
- Single or Dual DAC mode
- Dual ES9219C DAC/AMP
- 240mW@32ohm output
- MQA Support
- output power: Up to 240mW @ 32Ohm (Bal)
- 4.2-inch HD screen
- 23 hours battery life
Specifications
• Dimensions: 109 x 72 x 15.9 mm
• System: Android 7.1 (with customised Audio processing)
• Output power: 240mW @32Ω (balanced)
• Screen: 4.2 inch 768 x 1280 touch screen
• Weight: approx 168 g
• Channel separation: 121 dB (single ended) / 115 dB (balanced)
• DAC Model: 2 x ESS ES9219C
• Recommended headphone impedance: 8-300 ohms
• Battery Life time: up to 23 hours (single ended) / 19 hours (balanced)
• Frequency response: 20Hz~40kHz ( -0.5 dB )
• Signal to Noise Ratio: 114 dB (A-weighting)
• Battery capacity: 3200 mAh lithium battery
• Storage: 32GB + up to 2TB Micro SD card (purchased separately)
• Dynamic Range: 121 dB
• Output port: 3.5mm (single ended) / 4.4mm (balanced)
• Sampling rate: up to 384kHz / 32 bit, DSD64 & DSD128 & DSD256
• Bluetooth Codecs: LDAC, SBC (two-way) and apt-X HD (transmit)
• USB: Bi-directional, connect to offboard DAC (output) or use as sound device for computer or tablet/phone (input)
• Wi-Fi standard: 2.4G / 5G networks
• Wi-Fi features: DLNA / OTA Firmware Updates / File Transfer
• Add custom apps for other services eg Tidal, Deezer, Bubble UPNP etc
• Japan Audio Society Hi-Res and Hi-Res Wireless certified
