Using precise CNC machines, creating the whole main chassis from a single piece of aircraft-grade aluminium, with a complex wave pattern on the sides, all in an elegant Titanium finish.

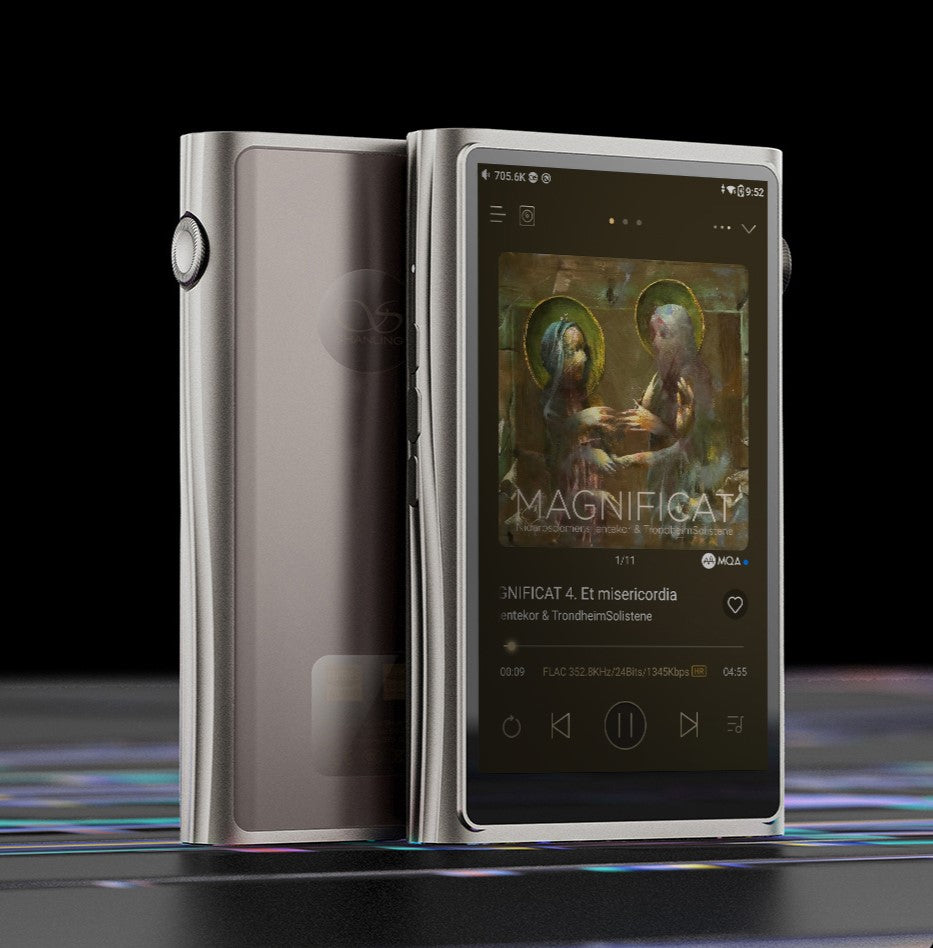

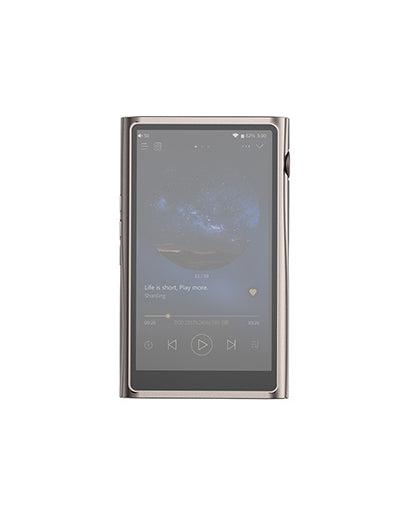

The M7 player features the same 5-inch Full-HD screen as Shanling's older M8, but in a sleeker “Wave” design body, measuring 129 x 78 x 20 mm at 312g. On the inside, it adopts advancements from the M9, including the single-piece aluminium inner body and the single-board integrated acoustic design.
Audio circuit of the M7 is based around ES9038PRO, the Flagship DAC Sabre line.
Previously adapted for the Shanling top of the line CD Player CD3.2 (21)
• Dimensions: 128 x 78 x 20 mm
• System: Android 10 (with customised Audio processing)
• Output power: 900mW @32Ω (balanced)
• Screen: 5inch 1920 x 1080 IPS touch screen
• Output impedance: < 1 Ohm • Weight: approximate 312 g
• Channel separation: 75 dB (single ended) / 115dB (balanced)
• DAC Model: ESS ES9038Pro
• Recommended headphone impedance: 8-300 ohms
• Battery Life time: up to 10 hours (single ended) / 8.5 hours (balanced)
• Frequency response: 20Hz~40kHz ( 0.1 dB )
• Distortion: 0.0007%
• Charging time: 2 hours (Qualcomm Quick Charge 3.0)
• Signal to Noise Ratio: 128 dB (A-weighting)
• Battery capacity: 7000 mAh lithium battery
• Storage: 128GB + up to 2TB Micro SD card (purchased separately)
• Dynamic Range: 126 dB (single ended) / 128 dB (balanced)
• Output port: 3.5mm (single ended) / 4.4mm (balanced)
• Sampling rate: up to 384kHz / 32 bit, DSD64, DSD128, DSD256, DSD512
• Bluetooth Codecs: LDAC, SBC (two-way) and apt-X HD (transmit)
• USB: Bi-directional, connect to offboard DAC (output) or use as sound device for computer or tablet/phone (input)
• Wi-Fi standard: 2.4G / 5G networks, Sync Link/DLNA/Airplay/OTA Updates • Wi-Fi features: DLNA / Airplay / OTA Firmware Updates / File Transfer
• Add custom apps for other services eg Tidal, Deezer, Bubble UPNP etc
• Japan Audio Society Hi-Res and Hi-Res Wireless certified
