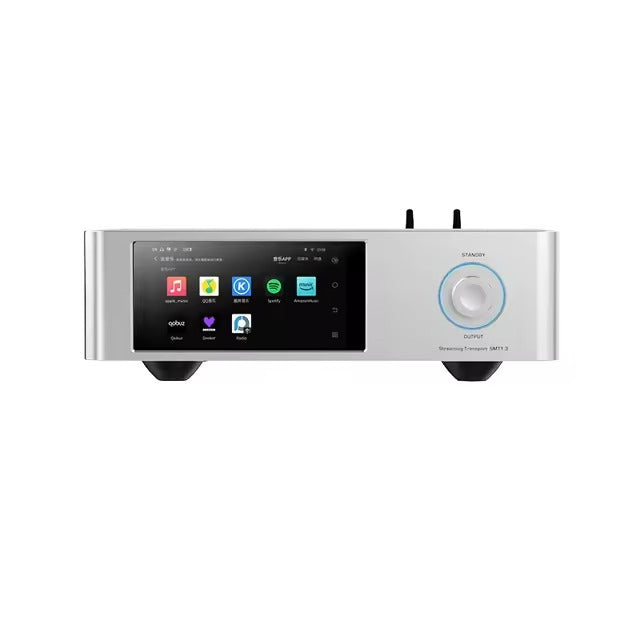

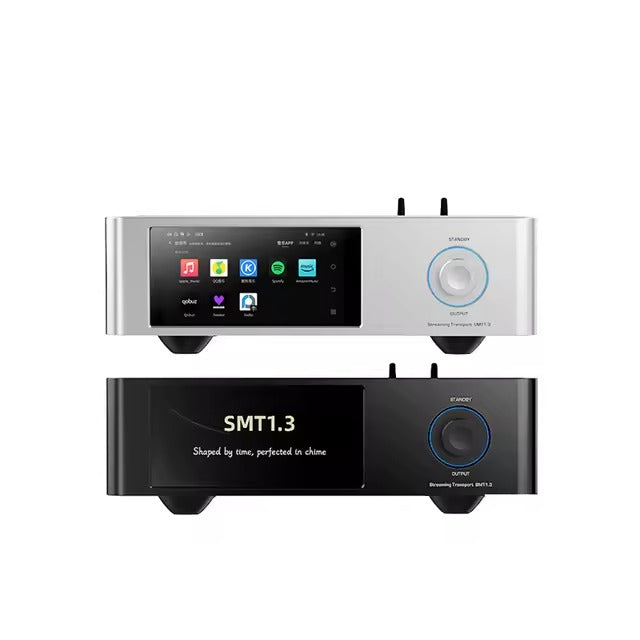

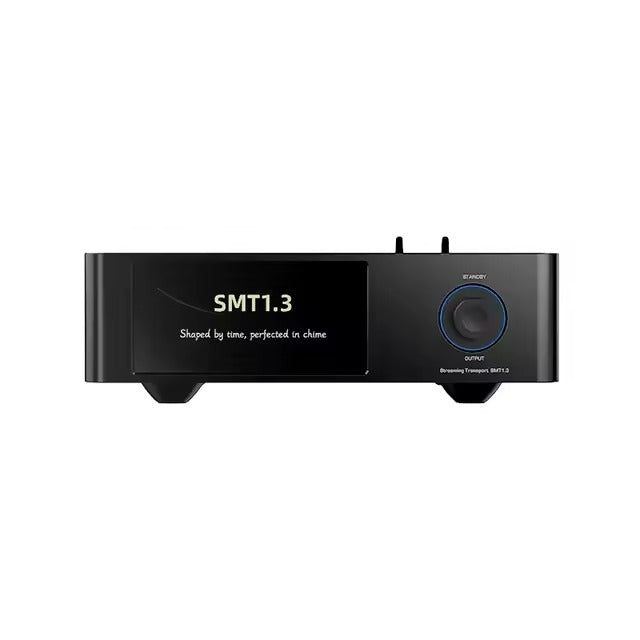

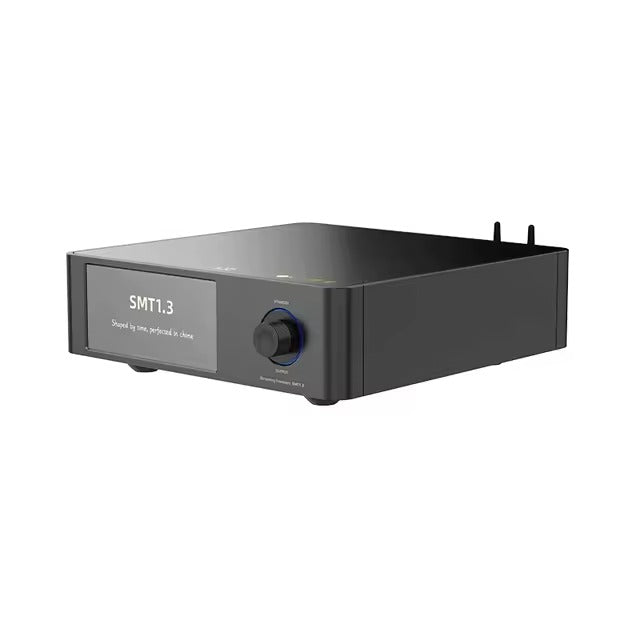

Shanling SM1.3 High-End Hi-Fi Streamer

Introducing Shanling SM1.3

Welcome to the new generation of Shanling streamers.

Brand New In-House Developed System | Upgraded Rockchip CPU | Highly Customized User Interface | Newly Developed Companion app for iOS and Android | Flagship AKM AK4499EX DAC with AK4191 Modulator | Dual Transformer Split Power Supply | Built-In Dedicated Headphone Amplifier | M.2 SSD Drive Slot | Hi-Res 32 bit / 768 kHz, DSSD512 & MQA

Brand-New Shanling Streaming System

Utilizing an upgraded 64-bit ARM Cortex CPU, the system of SM1.3 was developed from the ground up for the new generation of Shanling Streamers. Deeply customized closed Android 12 system, built with the high standards set by other Hi-Fi streamers and closely following the feedback of our customers.

Freshly designed UI focuses on simpler and faster access to all levels of the system, with further optimized main menu, settings and playback controls. Reduced number of elements and clear labelling leads to a cleaner-looking system that’s swift to navigate through. Fully operated by 5.8-inch 1080p Touch Screen or through our new Eddict Controller App.

Updated Streaming

With Streaming apps directly at hand, you can enjoy Spotify, Tidal, Qobuz, Apple Music, Apple Classical, Amazon Music, Presto Music or KKBox. And with our new system for app updates, your streaming will always be up-to-date.

Alongside NAS, Samba, DLNA & Airplay 2 support for a deeper integration into many streaming environments.

High-End Sound Performance

Following the high standards of sound quality set by our SCD1.3 SACD Player, SM1.3 utilizes the same flagship AKM AK4499EX & AK4191 system at its center. Highly detailed, with a vast and precise soundstage, yet adding a bit of warmth and smoothness, for the best natural sounding tuning.

Offering RCA and XLR outputs, running either in pure line-out mode or acting as a top-quality pre-amplifier, SM1.3 serves as an excellent DAC for any speaker setup. And for headphone users, our dedicated 6.35mm TPA6120 headphone output provides a simple solution suited for a wide range of audiophile full-size headphones.

Hi-Fi Grade Power Supply - Dual 31W Toroidal Transformers

By using two linear transformers, we are creating a special system of power division between the Streamer and Audio sections of the SM1.3, eliminating any harmful interferences between the two halves of the device.

Linear power supply is especially crucial for the analog section of the SM1.3, providing cleaner and more stable power than one can get from the switching power supply. As a dedicated Hi-Fi Streamer, this improved power supply is so important for true high-fidelity sound.

Advanced Digital Transport – FPGA Powered I2S

Apart from its functionality as DAC, SM1.3 will also shine as digital transport thanks to its advanced I2S output. By featuring a dedicated FPGA circuit, the device can easily adjust its I2S pinout, for assured compatibility with pretty much all DACs on the market.

SM1.3 also offers our bi-perfect USB Audio output, alongside standard coaxial and optical SPDIF.

Specification

Dimensions (including feet): 280mm * 280mm * 110mm
Weight: 6.4kg
Screen: 5.8-inch 1080P Sharp Touch Screen
Processor: Rockchip ARM CPU
DAC System: AKM AK4191EQ + AK4499EX DAC Chip
Storage: 64 GB Internal Memory + SSD M.2 Slot

External Drive Capacity: up to 2TB

Power Supply: 220 or 110V Region Locked

Bluetooth Version: 5.2
Bluetooth Codecs: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
Dual-Band WiFi 6: 2.4G / 5G

Supported Audio Formats: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Supports CUE.

Hi-Res support: 768kHz / 32bit DSD512

Technical Parameters

RCA Output:
Output Level: 2.36V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 118dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 118dB

XLR Output:
Output Level: 4.72V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 121dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 121dB

Headphone Output:
Output Power:
Low Gain: 19mW@32Ω
Medium Gain: 180mW@32Ω
High Gain: 1015mW@32Ω
High Gain: 132mW@300Ω
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0013%@32Ω
Dynamic Range: 117dB@32Ω
Channel Separation: 70dB@32Ω
Signal-to-Noise Ratio: 117dB@32Ω
Noise: 111dB
Output Impedance: 4.7Ω

Digital Ports Specifications
Coaxial Input: PCM192kHz / 24bit
Optical Input: PCM192kHz / 24bit
USB Input: PCM768kHz / 32bit, DSD512

Coaxial Output: PCM192kHz / 24bit
Optical Output: PCM192kHz / 24bit
USB Output: PCM768kHz / 32bit, DSD512
I²S Output: PCM768kHz, DSD512
