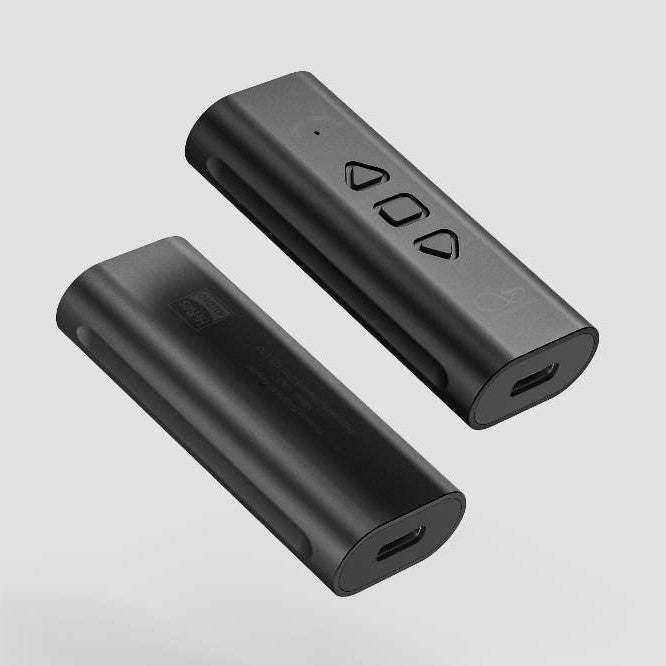

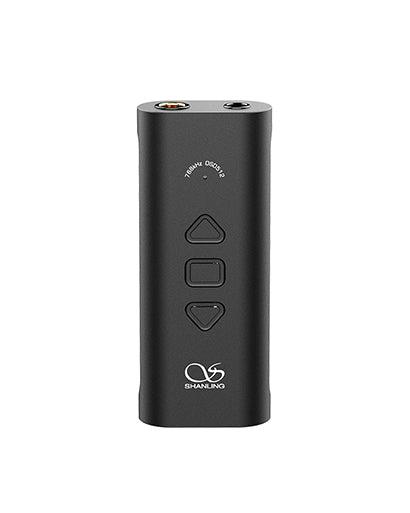

Shanling UA3 Portable DAC/AMP
Next Generation of AKM DACs
Brand new AK4493SEQ DAC finally brings the beloved AKM sound into the UA line. Enjoy the Shanling house sound in its fullest, with a natural, warmer and smoother tuning, pushed to a higher level of technical performance with this new generation of DACs
Key Features
- Brand new AKM AK4493SEQ DAC
- Dual Ricore RT6863 Headphone amplifier
- Hardware Volume Control
- 3.5mm Single-ended & 4.4mm Balanced Outputs
- Standby Mode
- Up to 211mW @ 32 Ohm Output power
- Compatible with Android, Windows, Mac and iOS.
- Special lightning cable needed for use with iOS
- UAC2.0 and UAC1.0 mode compatible, for use with Nintendo Switch and other gaming systems or older devices.
- Hi-Res support up to 32/768 and DSD512
- Universal USB-C Connector
- Compatible with Eddict Player app
Specifications
Powered by phone or tablet |
Dimension: 60 x 25 x 13 mm |
Output power: 210mW @ 32 Ohm (balanced) |
DAC Chip: AKM4493SEQ |
Amplifier: Dual Ricore RT6863 Amps |
Weight: approx 20g |
Channel separation: 110 dB (balanced) |
Distortion: 0.0003% |
Dynamic Range: 120 dB @32 Ohm (A-weighting) |
Signal to Noise Ratio: 120 dB (A-weighting) |
Output port: 3.5mm (single ended) and 4.4mm (balanced) |
USB Input: Type-C |
USB DAC Input: up to 768K 32bit / DSD up to DSD512 |
Companion app available |
