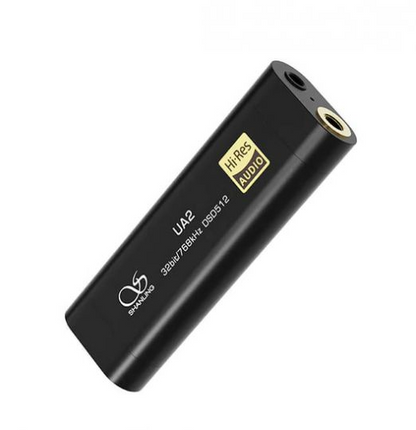

Shanling UA2 Headphone DAC Amplifier
Portable USB DAC/AMP
Pick your Output
UA2 can be used with any standard headphones with the 3.5mm jack. And all Audiophiles will appreciate its industry standard Balanced 2.5mm jack.
Zero Delay
Thanks to the USB connection, UA2 can work with any smartphone and its apps without any additional delay. Simply enjoy movies without any audio sync issues and keep your game at the top level with immediate reactions.
Exchange cables
With a simple USB-C connector, you can easily switch between different USB cable for phones, standard USB cable for a desktop use with computers and even cable iOS devices.
LED Indicator
Displaying currently used sampling rate, confirming you are playing true DSD and making sure that you are connected to the gaming console (Red light, UAC1.0 mode).
Key Features
- Advanced model of UA line
- Interchangeable cables, using USB-C connector
- Special mode offering compatibility with Nintendo Switch
- 3.5mm Single ended & 2.5mm Balanced output
- ESS ES9038Q2M DAC & Ricore RT6863 amplifier
- Up to 195mW@32 output power
- Hi-Res support up to PCM 32/768 and DSD512
- Advanced settings available in companion app
Specifications
• Powered by phone or tablet
• Dimensions: 54 x 18 x 9 mm
• Output power: 195mW @ 32 Ohm (balanced)
• Audio Chip: ESS ES9038Q
• Output impedance: 0.25 Ohm
• Weight: approx 12.6 g (without cable)
• Channel separation: 109 dB
• Distortion: 0.0008%
• Dynamic Range: 120 dB @32 Ohm (A-weighting)
• Signal to Noise Ratio: 116 dB (A-weighting)
• Output port: 3.5mm (single ended) and 2.5mm (balanced)
• USB Input: Type-C
• USB DAC Input: up to 768K 32bit / DSD up to DSD512
