Thin-Line In-Wall and In-Ceiling Bandpass Subwoofer

Overview
Sonance is pleased to introduce the new BPS6 Thin Line bandpass subwoofer designed for challenging install applications. We recognize that many home interiors are faced with space limitations and mounting restrictions within walls and ceilings, leaving clients with limited options for quality audio. The new Sonance BPS6 TL is the perfect solution to add performance audio to any room without impeding on the design of the space.

Flexible Application
Sonance leads in design and performance. We believe in continually challenging industry standards and developing products that solve for a need. Many home interiors are faced with space limitations and mounting restrictions within walls and ceilings, leaving clients with limited options for quality audio. In our quest to develop an in-wall and in-ceiling subwoofer that is flexible for limited spaces, we've set the bar for flexibility while engineering a subwoofer that outperforms anything like it. Sonance is pleased to introduce the new Thin- Line in-wall and in-ceiling subwoofer, BPS6 TL.

Installation
The new BPS6 TL is compatible with both Sonance Architectural Series and Visual Performance Series products. Engineered for new-construction, the BPS6 TL fits into a standard 2 x 4 stud bay, great for shallow depth surfaces. When installed into a wall or ceiling, the only visual impact is a 3" diameter round or square grille to match other Sonance in-ceiling speakers and most lighting designs.

Performance

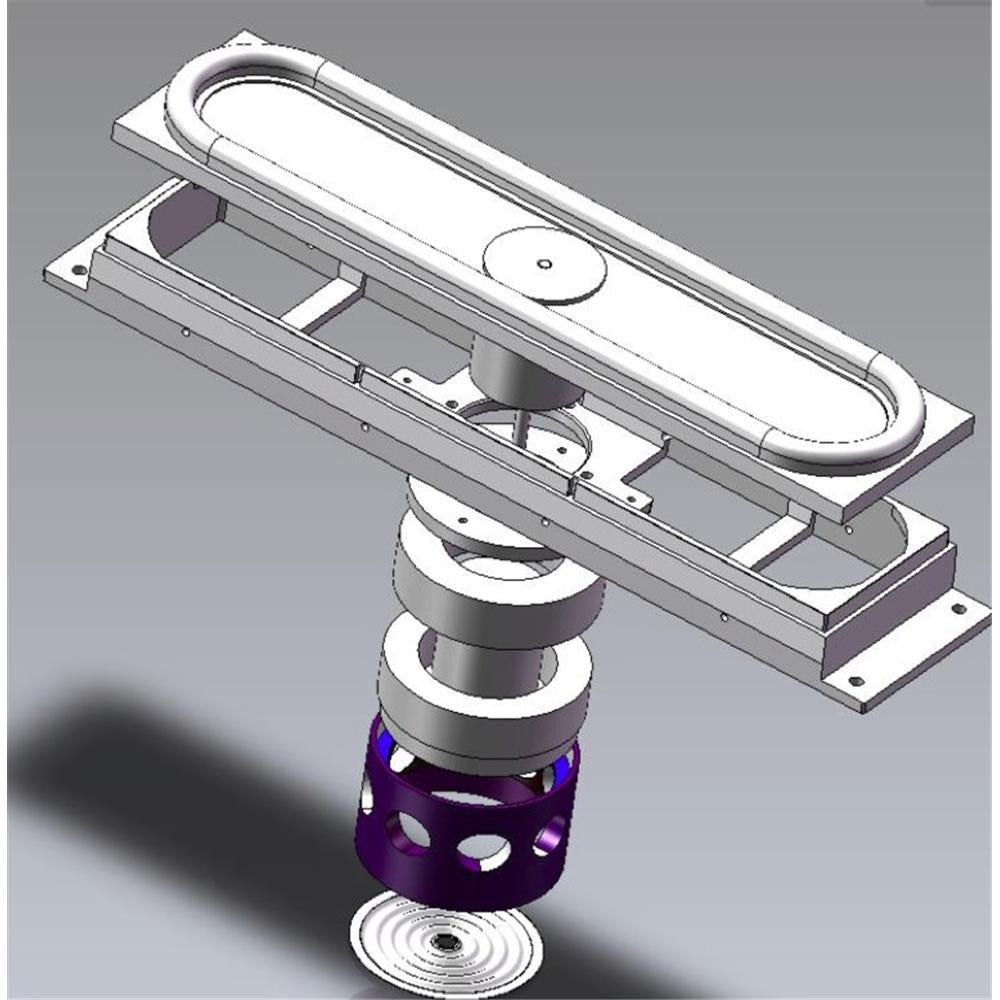

Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance.

Key Features

Aesthetics

• Designed to visually disappear among surrounding downlight fixtures
• Low profile paintable grille
• Round or square adapter to match the geometry of architectural elements within the room

Performance

• Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
• Improved low frequency performance over past bandpass subwoofers

Installation

• One-piece paintable grille
• Fits easily into a 2 x 4 stud bay with its 3 3/8” mounting depth
• Flexible install applications with in-wall and in-ceiling accessories

Dimensions
BPS6 TL SUBWOOFER

• Width: 11” (279mm)
• Depth: 3 3/8” (86mm)
• Length: 39 3/8” (1000mm)

BPS6 TL PORT TUBE

• Diameter: 3” (76mm)
• Length: 15” (381mm)

Specifications

• BPS6 TL: In-Wall & In-Ceiling Thin-line Subwoofer
• SKU: 93324
• Unit of Measure: Each
• Woofer: 13” (330mm) x 3” (76mm) Laminated Carbon Fiber Cone with a rubber surround, dual voice coil
• Frequency Response: 38Hz - 125Hz ±3dB
• Impedance: 6 Ohms nominal, 4 Ohms minimum
• Power Handling: 50 Watts minimum; 150 Watts maximum
• Sensitivity: 87dB @ 2.83V / 1 meter
• Dimensions: 11” x 3 3/8” x 39 3/8” (W x D x L) (279mm x 86mm x 1000mm)
• Shipping Weight: 40 lbs (18.68kg) each
• Port Tube Dimensions (Dia x L): 3” x 15” (76mm x 381mm)
