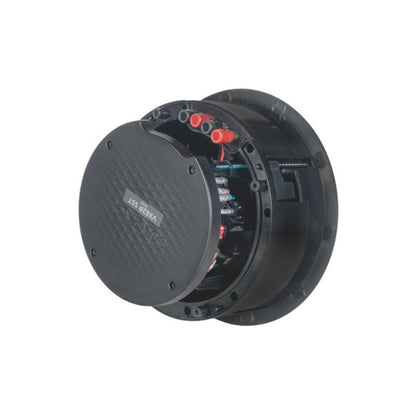

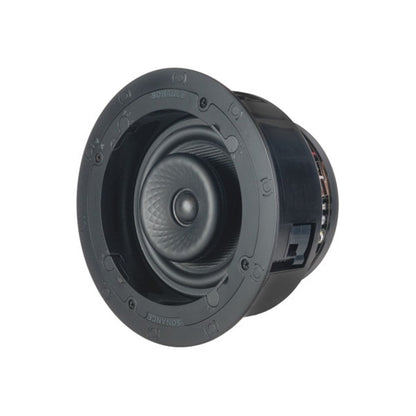

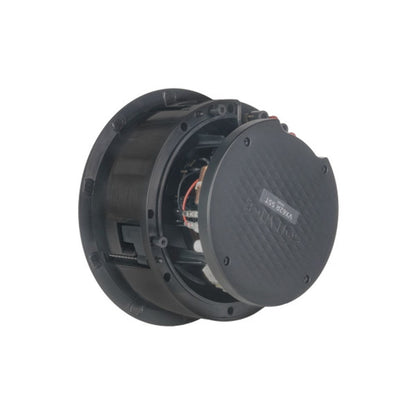

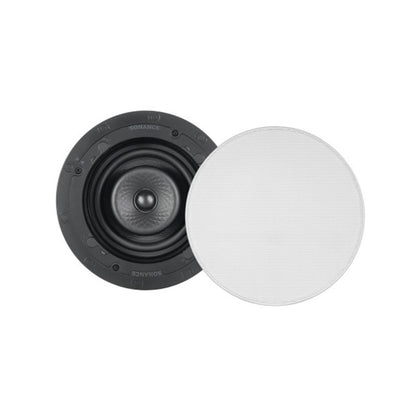

VX62R SST 6" ROUND SINGLE STEREO SPEAKER W/ WHITE MICRO TRIM GRILLE (1 EACH)

Expertly engineered for superior performance, finish, installation, and above all, experience. Visual Experience Series includes the all-new Sonance VX and James VXQ architectural speakers, leveraging the latest technological advances to reimagine driver, tweeter, and crossover design. Sonance Visual Experience (VX) leverages four decades of speaker design and innovation success to inspire and reimagine speaker technology for the future.

We are dedicated to delivering solutions to weave music into the fabric of daily life and we know that it is most powerful when it is strategically comfortable to enjoy and meticulously designed to blend into the architecture. These foundational beliefs are what drove the design for Sonance VX series. The first loudspeaker to be engineered by simulation and machine learning, the new series features balanced coverage, low distortion, and smooth response for comfortable, natural sound reproduction. Each VX model comes standard with a Sonance Micro Trim grille with the option to upgrade to the all-new Trimless Grille design.

Features

• Grille Options - Micro Trim, Trimless, or TRUFIG Mounted Trimless grille styles
• Flexible Finish - Grille painting or laser printing grille service available
• Waveguide Design - Engineered for maximum coverage and fidelity to create detailed, comfortable, consistent listening
• Sonance CDX Crossover Design - Warmth and detail at all volumes
• Standard One Stage or Optional Two Stage Installation Design - Two stage process allows preconstruction wiring and space reservation that completes with a simple snap-in of the speaker module
• Optional TRUFIG Finish and Installation - Reliable, repeatable process for precision alignment and placement with smooth, level finish to blend into the surface

Specifications

• SKU: 93683
• Product Description Long: VX62R SST 6" ROUND SINGLE STEREO SPEAKER W/ WHITE MICRO TRIM GRILLE (1 EACH)
• Product Brand: SONANCE
• Product Category: Visual Experience
• Product Sub Category: SST
• Product Super Category: In-Ceiling
• Installation Location: In-Ceiling
• Speaker Aesthetic: Micro-Trim
• Colour | Finish: White
• Performance Level: 2
• Speaker Shape: Round
• Speaker Size: 6"
• Type: Speaker
• Colour: White
• Frequency Response: 45Hz - 20kHz +/- 3dB
• Impedance: 8 Ohms nominal; 6 Ohms minimum
• Power Handling: 5 watts minimum to 125 watts maximum
• Sensitivity: 89dB SPL
• Speaker Tweeter: 1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber, dual voice coil
• Speaker Woofer:6.5" (165mm) textured polypropylene cone, rubber surround, pivoting, dual voice coil
• Warranty: LIMITED LIFETIME
• Specialty Application: Single Stereo

Dimensions

• Cut-Out Dimensions (Diameter): 8.25" (210mm)
• Product Dimensions - Micro Trim Grille (WxH): 9.62" (244.4mm)
• Product Dimensions - Square Micro Trim Grille (WxH): 9.62" x 9.62" (244.4mm x 244.4mm)
• Product Dimensions - Square Trimless Grille (WxH): 9.28" x 9.28" (235.6mm x 235.6mm)
• Product Dimensions - Trimless Grille (WxH): 9.28" (235.6mm)
• Mounting Depth - Speaker Only: 4.92" (125.0mm)
• Mounting Depth with Retrofit Enclosure: 5.75" (146.1mm)
