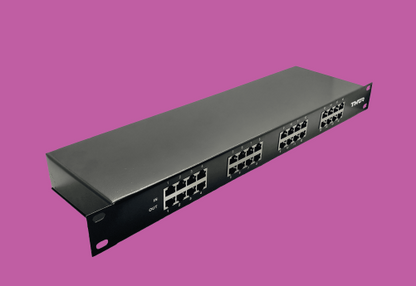

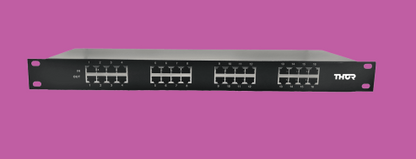

Thor RJ45/16 – 16 Way Network Surge Protection
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
16 WAY HIGH SPEED NETWORK PROTECTION
What causes spikes and surges in network cabling?
- Power cables crossing network cables.
- Equipment induced transients
and surges. - Earth Potential Rise – this is where lightning strikes nearby and energises the surrounding earth. This energised area can cause surges to travel through, up, into and around walls and frames
of structures. Network cabling is often housed in wall cavities and this surge then injects itself into the network cabling travelling through the cable and damaging connected equipment.
The RJ45-16 is designed to protect devices connected through network cabling on a Direct Current (DC) supply. The device does not filter (this product is not connected to AC power). It offers spike and surge protection to ensure data transfer speed is maintained. The product is relying on a solid earth connection to maximise the efficiency of the protection circuit capability. The earth connection is critical to ensure that when a dangerous high voltage spike or surge is detected the RJ45-16 is able to divert this threatening voltage down to earth in the first instance. If the surge is too great to divert all the excess energy back
to earth then the RJ45-16 protection circuit will absorb the residual surge. The RJ45-16 is designed to sacrifice itself if it is unable to absorb the surge and in doing so protect the connected equipment. By sacrificing itself it can prevent the connected equipment from damage and save on downtime associated costs. Replacement of the RJ45-16 protection Rack unit is simple and very quick.
Technical Smarts
- Product Dimensions: 490mm(W) x 125mm(L) x 45mm(D) | Nominal voltage Un(V) DC 48V | Nominal discharge current (in) (8/20ų | Max. discharge current (in) (8/20ųS 10kA | Voltage protection level (UP) @1KV/us: UP : ≤ 45V (Line-Line), ≤ 600V (Line-PE) | Max transfer speed 1000MB/s | Response time <1000 picoseconds (ps) | Connection input RJ45 | Connection output RJ45 | 6.8V Clamping on Data Pins (1,2,3 &6) & 53V Clamping on POE Pins (4,5,7 & 8) | Model No. RJ45-S.
