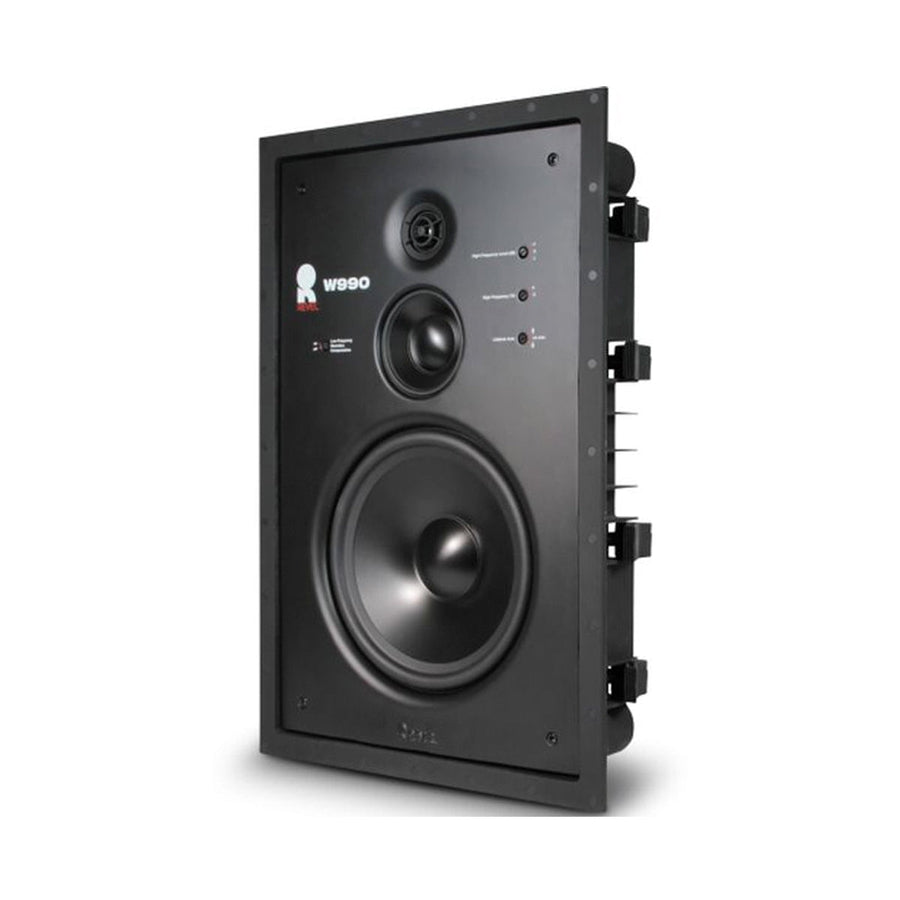

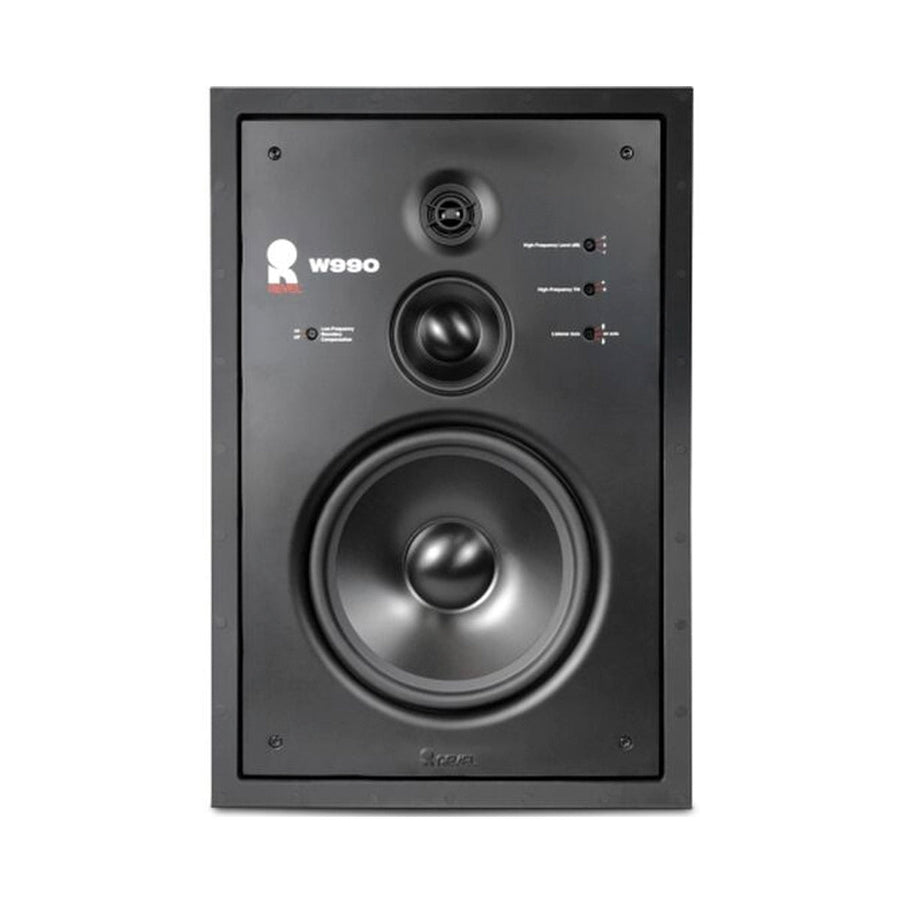

Revel W990 In-Wall Loudspeaker

No reviews

Regular price$2,999.00
10 interest free payments from $299.90 with




The W990 features Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.

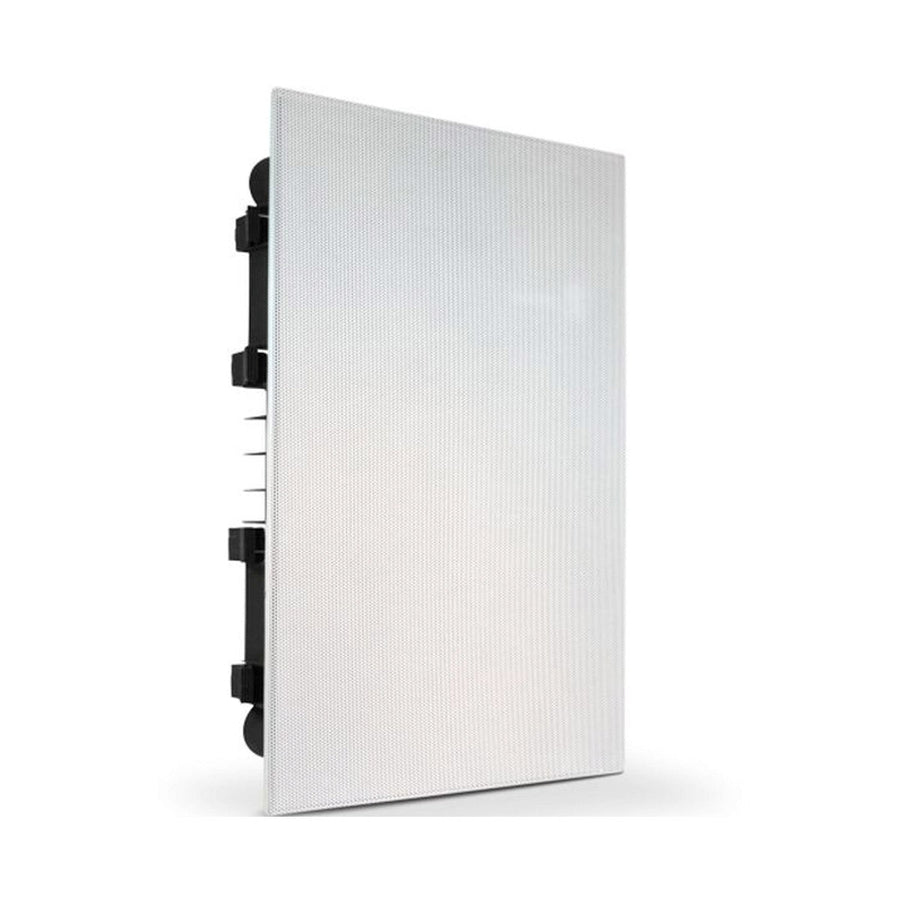

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the wal and accommodates a wide variety of wall thicknesses and construction types. For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look.

All eleven in-wall loudspeaker models include square grilles to provide a perfect match for existing wall fixtures and lighting. With this new in-wall loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.



  • Long-throw woofers with cast aluminum frames, MCC (Micro Ceramic Composite) cones and rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

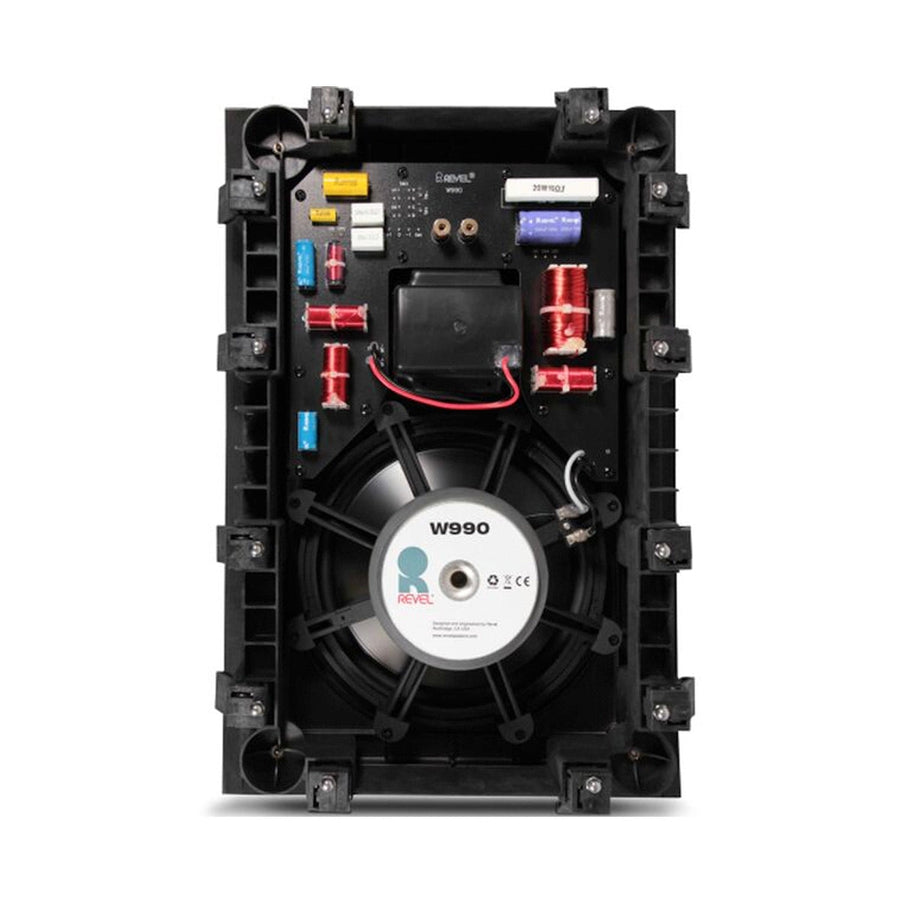

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
  • Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
  • Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
  • High-frequency tilt and listener axis controls help compensate for less-than-ideal speaker placement.



  • Description: 9" In-Wall Loudspeaker
  • High-frequency Driver Components: 1" Aluminium-Dome, High-Output Tweeter with Waveguide
  • Mid-frequency Driver Components: 3.5" Micro-Ceramic Composite (MCC) Cone Midrange
  • Low-frequency Driver Components: 9" Micro-Ceramic Composite (MCC) Cone, CastAluminium Frame, High-Output Woofer
  • Sensitivity: 89dB @ 2.83V, 1 m
  • Recommended Amplifier Power: 10-200 Watts
  • Cutout Dimensions: 486mm x 318mm
  • Grille Finished Dimension: 523mm x 353mm
  • Mounting Depth: 94 mm
  • Net weight: 7.7 kg
