WiiM Ultra + Vibelink Amp Music Streamer & Integrated Amp Bundle

Unleash the Power of Pure Sound

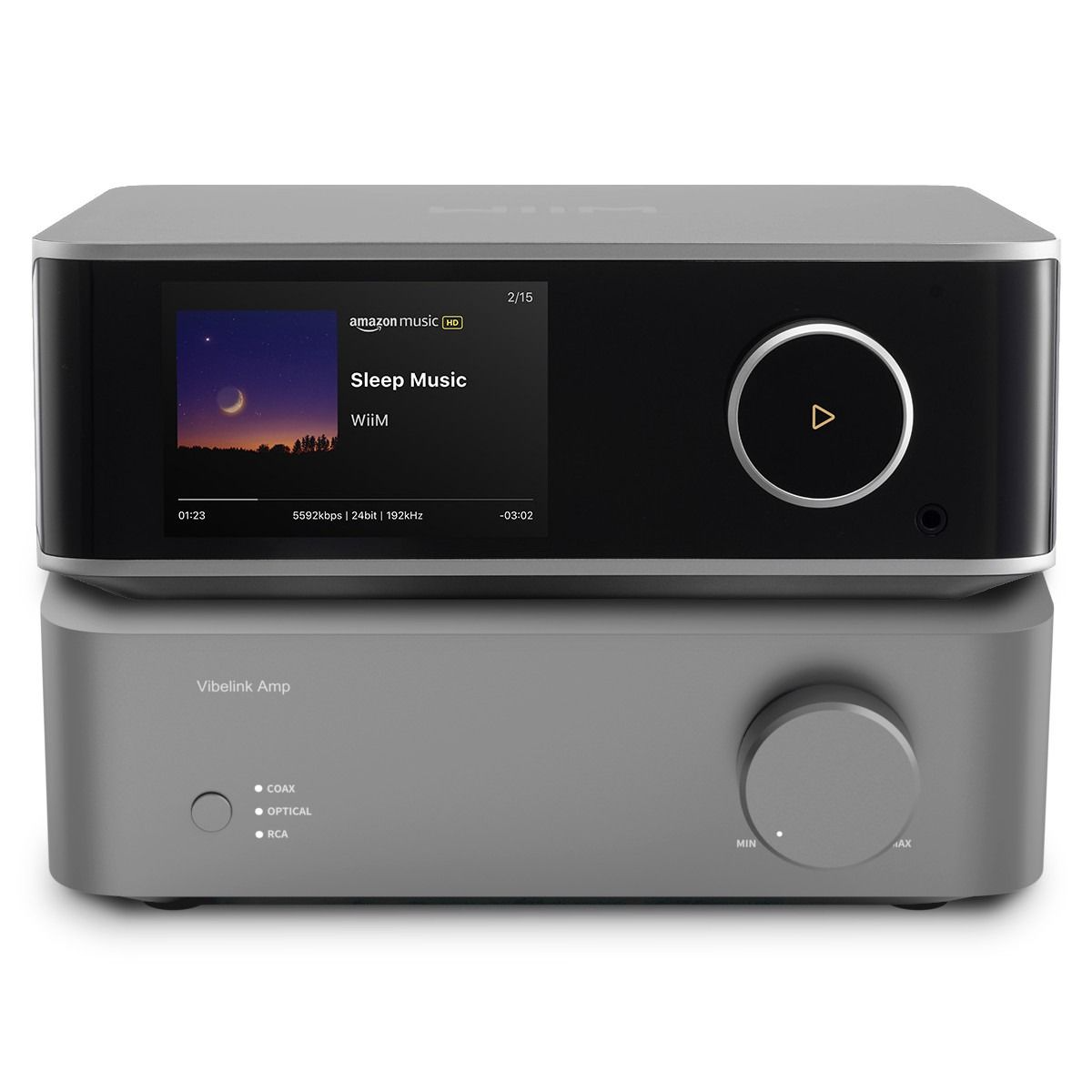

Experience exceptional audio with this package featuring the WiiM Ultra music streamer & digital hub, with the WiiM Vibelink Amp integrated amplifier. This compact package is a fantastic beginning to your home Hi-Fi journey, or open up new possibilities for a seasoned listener.

Both WiiM devices feature a sleek aluminium-encased design, with the WiiM Ultra including a glass front with touchscreen display and a headphone output.

WiiM Ultra Wireless Audio Streamer & Digital Hub

Touch Display
Glass-covered 3.5" vibrant touchscreen display

Controls
Volume knob, play/pause, setup, and more

LED
4 Colour RGBW LED indicates the device status

Audio Input
HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz

Audio Output
RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bitWireless to another BT, DLNA receiver

Performance Line out
• Maximum output: 2.1V RMS
• SNR: 121 dB (A-wt)
• THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
• FR curve:+/-0.05 dB

Performance Headphone out
• 300 ohms: SNR (119 dB), THD+N (-99 dB)
• 32 ohms: SNR (119 dB), THD+N (-92 dB)

EQ
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ

Subwoofer Output
• Comprehensive bass management
• Adjustable crossover frequency, level, phase, and latency.

Power Supply
100-240V AC input, 50/60 Hz, 0.5A Max

Network
• Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands
• 10M/100 Mbps LAN

External Storage
• Access personal media library and use it as a media server for other WiiM and DLNA devices
• Support FAT32, NTFS, and EXT4 file systems

Bluetooth
Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote

Supported Streaming Protocols
Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready

Dimensions
211 mm x 200 mm x 72 mm

Weight
1.42 kg

WiiM Vibelink Amp Integrated Amplifier

Power & Amplification

Output Power
100W per channel at 8Ω (stereo)

Amplifier Technology
Class-D with PFFB (Post-Filter Feedback) technology

Total Harmonic Distortion (THD+N)
≤0.005%

Signal-to-Noise Ratio (SNR)
≥110dB

Frequency Response
20Hz – 20kHz ± 0.5dB

Impedance Range
3 - 8 ohms

Audio Processing

Premium DAC
ESS 9039Q2M high-performance DAC

Bit-Perfect Playback
Supports up to 192kHz/24-bit audio

Dynamic Range
≥120dB for high-resolution sound

Pure Analog Input
No ADC conversion, maintaining signal integrity

Supported Audio Formats
PCM up to 192kHz/24-bit (through digital sources)

Input & Output Options

Analog Inputs
1x RCA Stereo (Line-In, pure analogue signal path)

Digital Inputs
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit

Speaker Outputs
Gold-plated binding posts (supports banana plugs or bare wire connections)

Trigger & Power Management
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Control Interfaces

Volume Knob
Adjusts volume

LED Indicator
Three 4-color RGBW LED indicates source input and device status

Build & Design

Chassis
Premium unibody aluminium for durability & heat dissipation

Thermal Management
Copper heat pipe, large aluminium heatsink, unibody aluminium case, and precision PID thermal control

Cooling System
Passive, silent operation

Dimensions and Weight

Dimensions (W x H x D)
200 x 63 x 212.5 mm (including volume knob)

Weight
2.05 kg

Power input
100-240V, 50/60Hz AC, 3A Max

Package Contents

• Use Guide
• Power Cable
• RCA Cable
• Optical Cable
• Banana Plugs x 4
