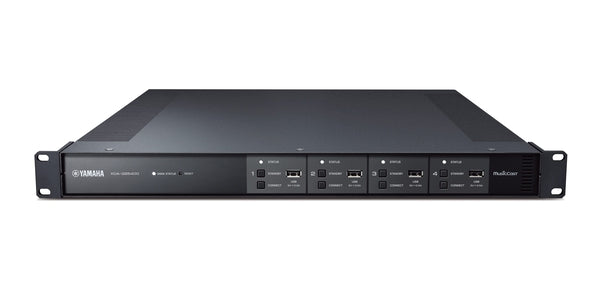

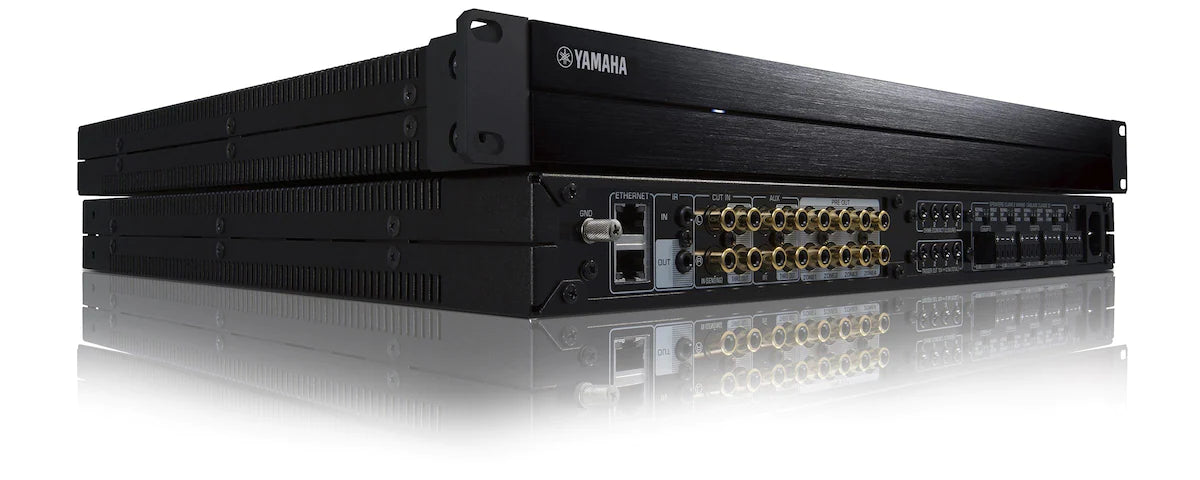

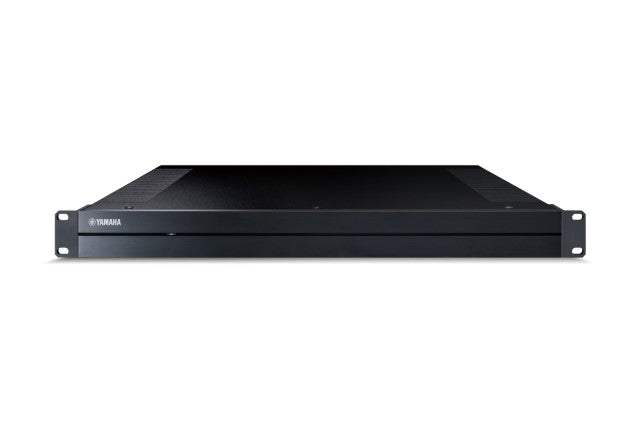

Specially designed for custom integration of whole-home audio systems, the “QS” (Quad Streamer) provides four zones of audio streaming and eight channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. Expandable and extremely flexible, the QS works with the MusicCast multi-room audio system, allowing it to be linked with home theatre AV receivers, soundbars and Hi-Fi gear in a wide variety of configurations.
Whole Home Audio: Redefined
Designed from the ground up for custom installation, the “QS” represents the ultimate integrated solution for filling every room in a home with extraordinary sound.
A Family Like No Other
As a member of the MusicCast family, the QS integrates seamlessly with Yamaha AV receivers, sound bars and more. Now everything – from a surround sound home theatre to a bedroom TV system to in-ceiling speakers in the kitchen – can all work beautifully together.
Stream It All
Access all of your favourite music, including built-in streaming services and music libraries on smartphones, tablets and network-attached storage devices.
(Streaming service availability varies by region and may change or be discontinued without notice.)
Plays Nicely with Everything
Want to hear TV sound or vinyl records throughout the home? Link to a MusicCast receiver, sound bar or turntable to access audio from virtually any source.
The QS supports IP control by 3rd-party control systems used in many of today’s most advanced smart homes.
There’s an (Amazing) App for It
It’s also easy to set up and control with the free MusicCast app, which offers unique personalisation features including the ability to assign custom images to rooms, and to rename, rearrange and hide sources.
|Network Section||File Format||MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit|
|Ethernet||Yes (2 terminals)|
|Audio Specifications||Channel||8 channel (2 channel x 4)|
|Minimum Speaker load Capability||4 ohm|

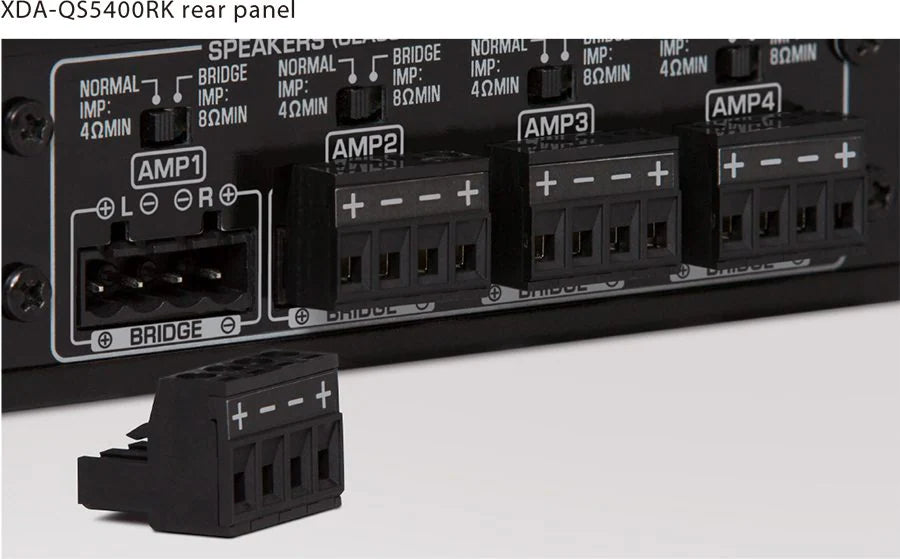

|Speaker Output Terminal||4 (Euroblock)|
|Audio Input Terminal||RCA: 2 (CUT IN, AUX), USB: 4|
|Audio Output Terminal||RCA (2-ch through out): 2 (CUT IN, AUX)|
|Trigger In / Out||0 / 4|
|Remote In / Out||1 / 1|
|Rated Output Power (1 kHz, 0.9% THD, 2ch driven)||Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W|
|Rated Output Power (1 kHz, 0.9% THD, 1ch driven)||Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W|
|Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)||Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W|
|Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)||Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W|
|Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)||Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W|
|Maximum Effective Output Power||[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W|
|Total Harmonic Distortion||[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%|
|Frequency Response||[1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz|
|Signal to Noise Ratio||[PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB|
|Rated Output Level / Output Impedance||[PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm|
|Maximum Output Level||[PRE OUT L / R, 0.9% THD] 4.0 V|
|Maximum Input Signal||[PRE OUT L / R, 0.9% THD] 2.4 V|
|Gain||[SP OUT 1 V Input] 25.8 dB|
|Input Sensitivity||[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V|
|Monaural Downmix||Yes (stereo playback or monaural downmix selectable)|
|Compressed Music Enhancer||Yes|
|Volume Adaptive EQ||Yes|
|Volume Control||Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB|
|EQ Characteristics||[Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz|
|General||Power Consumption||130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W|
|Standby Power Consumption||Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W|
|Power Management (Auto Power Standby)||5 / 20 min, 2 / 4 / 8 / 12 hours selectable|
|Dimension (W × H × D) mm||[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”|
|Weight||6.3 kg; 13.9 lbs.|
