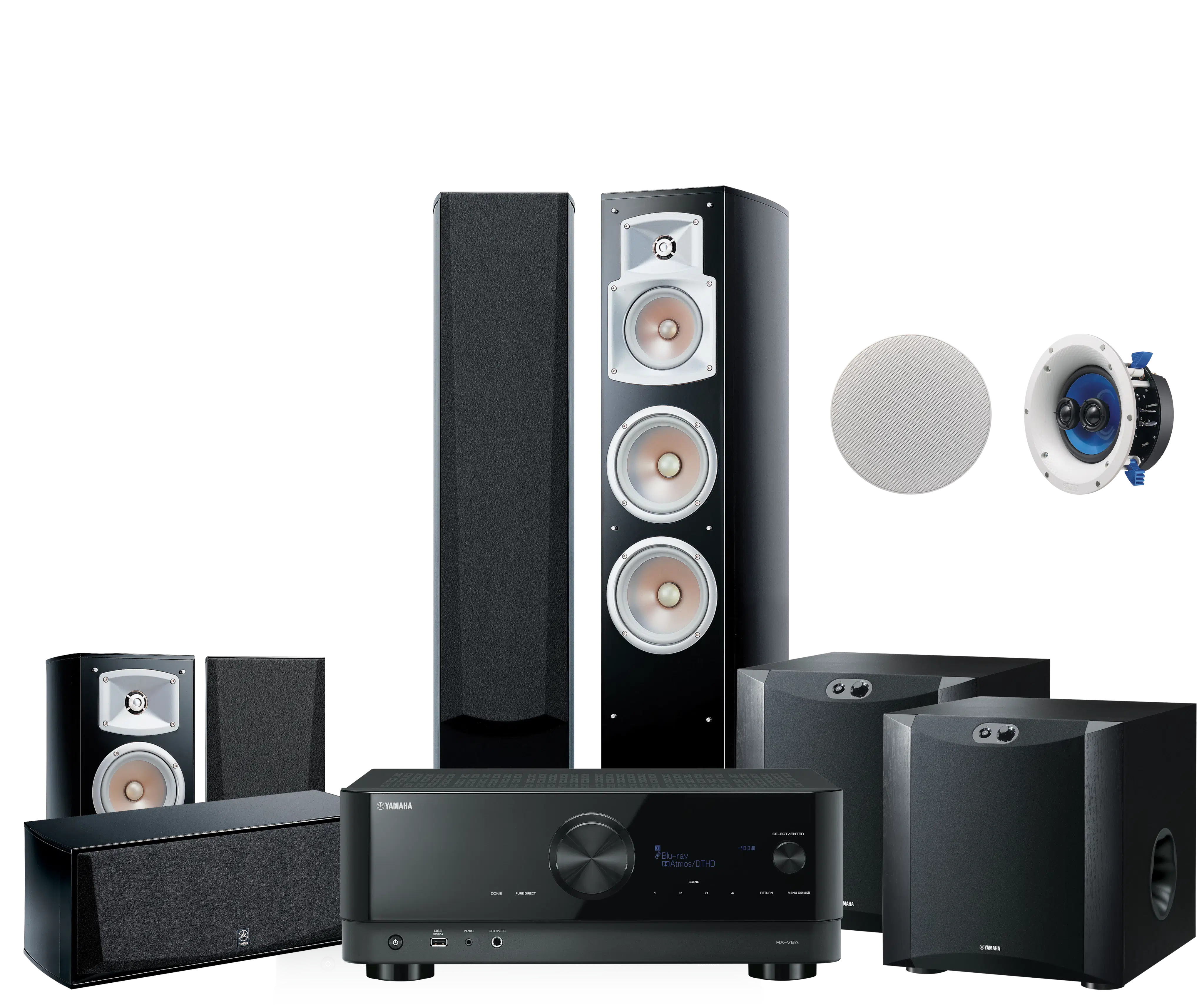

The Yamaha YHT-6A 5.2.2 HT Pack is a high-quality home theater system that includes five speakers, two subwoofers, and advanced audio technology. It delivers immersive sound and a cinematic experience for movie and music lovers.
Advanced operation, flexible configuration options and superior performance. The YHT-6A delivers the ultimate home cinema experience with added smart home features.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio – including Dolby Surround upmixer for legacy content.
*This function is available via future update.

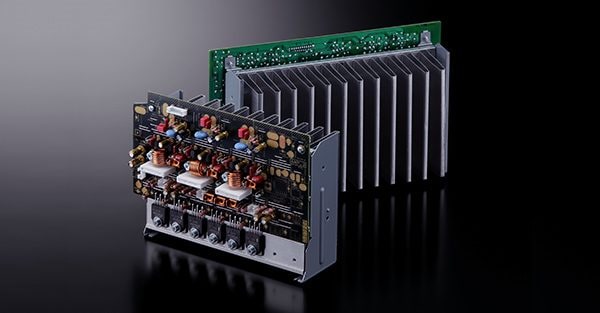

It would contribute a precise signal transmission, especially suitable for high resolution audio signal. Generally high slew rate amplifier causes unstable signal transmission, Yamaha’s newly design circuit achieves high slew rate with stable signal transmission.
Touch or voice control – the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive.
*Availability of voice command control via Amazon Alexa and Google Assistant varies by region.
*A third party device is required to initiate voice commands.

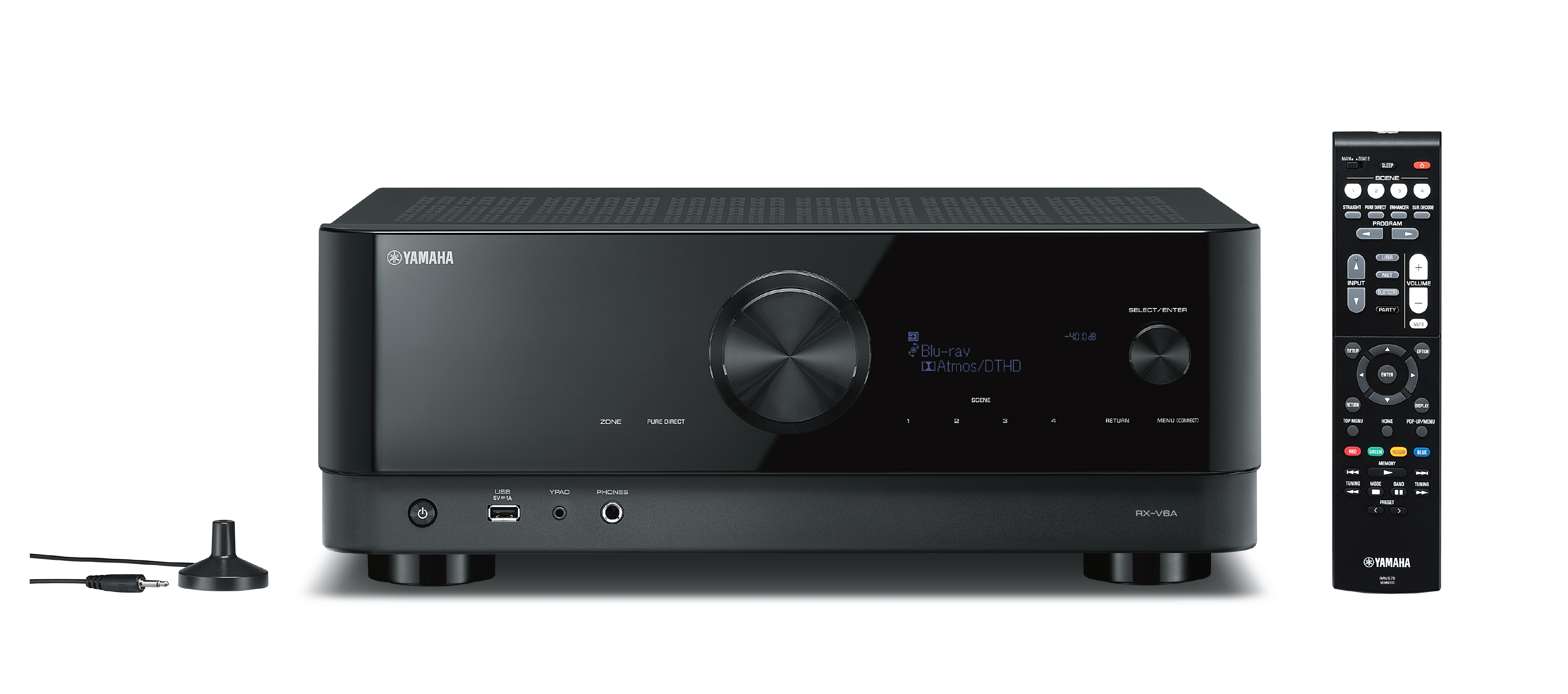

| AV Receiver RX-V6A | ||
|
Amplifier Section
|
Channel | 7.2 |
| Rated Output Power (1kHz, 1ch driven) | 125 W (8 ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) | 150 W (8 ohms, 10% THD) | |
| High Slew Rate Amplifier | Yes | |
|
Surround Sound Processing
|
Surround:AI | N/A |
| CINEMA DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | Yes | |
| Dialogue Lift | Yes | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby Atmos | Yes | |
| Dolby Atmos Height Virtualizer | Yes | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | Yes | |
| DTS:X | Yes | |
| DTS-HD Master Audio | Yes | |
|
Audio Features
|
File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO multi-point measurement | Yes | |
| YPAO Volume | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| A.R.T. Wedge | N/A | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5102A | |
|
Video Features
|
HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 8K60B, 4K120AB, 24GBPS *HDMI1-3 | |
| HDMI Up-scaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10+ | Yes | |
| VRR/ALLM/QMS/QFT | Yes (via future update) | |
| Video adjustment | N/A | |
|

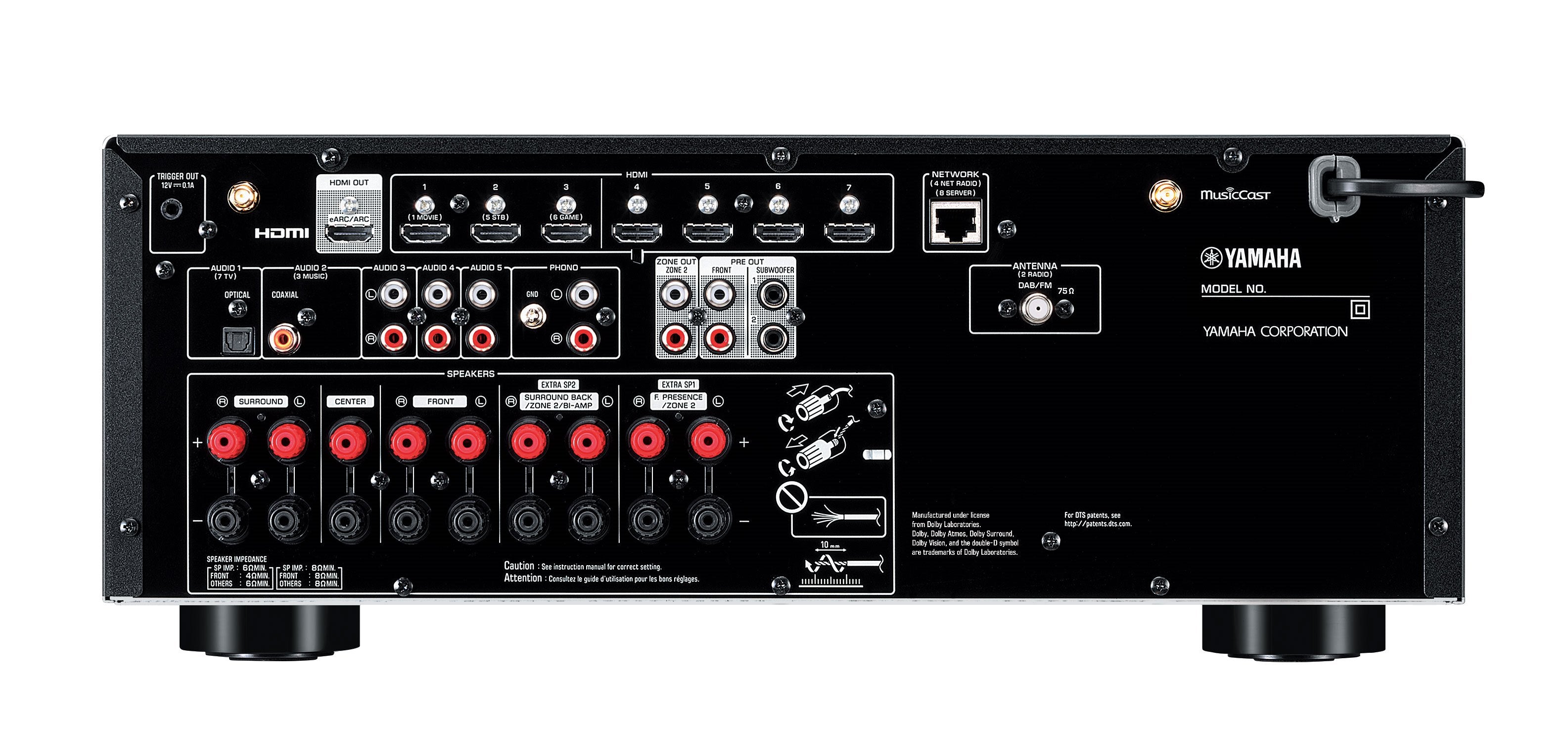

Connectivity
|
MusicCast Surround | Yes |
| HDMI Input/Output | 7 / 1 | |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Front AV Input | USB | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 1 / 0 | |
| Analog Audio Input/Output | 4 / 0 | |
| Phono Input | Yes | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |
| Composite Video Input/Output | N/A | |
| Preout | 2.2-ch | |
| Headphone Output | 1 | |
|
Tuner Section
|
FM/AM Tuner | Yes (Availability varies by region.) |
| DAB Tuner | Yes (Availability varies by region.) | |
|
User Interface
|
On-screen display | Graphical User Interface |
| SCENE | Yes (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | |
| Remote Control Unit | Yes | |
|
Zone Control
|
Zone 2 Audio Output | Preout |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | Zone 2 | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| +12V Trigger Output | 1 | |
| Remote (IR) Input/Output | N/A | |
| Party Mode | Yes | |
|
General
|
Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 W x 171 H x 377 D mm (with antenna up:435W x 245H x 377D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D) | |
| Weight | 9.8 kg; 21.6 lbs. | |
