Debut Carbon RecordMaster Hires

Pre-fitted with Ortofon 2M Red Cartridge

The Pro-Ject Debut Carbon RecordMaster HiRes brings you all the benefits of the ever-popular Debut Carbon Esprit SB with the added benefit of on-board phono stage and the ability to record your vinyl collection to your computer in high-resolution DSD audio quality.

Create Hi-Res Audio Recordings

The internal A/D converter on the Pro-Ject Debut Carbon RecordMaster Hires supports the conversion of analogue audio to DSD 11.2 MHz digital audio. Using a PC application called Vinyl Studio Lite (supplied on CD in the box) you are able to rip, edit and store tracks from your vinyl records to your computer in stunning DSD quality. Simply connect your Pro-Ject Debut Carbon RecordMaster HiRes turntable to your PC via USB and turn your precious vinyl collection into High-Resolution Audio.

Acrylic Platter

More than just an eye-catching aesthetic feature, the translucent acrylic platter of the Pro-Ject Debut Carbon RecordMaster Hires is a perfect companion to vinyl. The acrylic platter dampens the effects of unwanted vibrations and helps ensure smooth, accurate speed.

Speed Control for all Records

In-built Speed Control allows you to play all formats of records on the Pro-Ject Debut Carbon RecordMaster Hires. The common 33⅓ & 45 RPM speeds are toggled with an effortless click of the button. For rare 78 RPM Shellac records it’s a simple belt change (included in the box) and the addition of an Ortofon 2M 78 stylus upgrade.

Sub-Platter & Suspended Motor

The ultra-quiet DC-driven AC generator motor of the Pro-Ject Debut Carbon RecordMaster Hires is mounted to the plinth of the turntable utilising shock-absorbing TPE-damping grommets. Inhibiting the vibration of the motor from ever entering the plinth or the audio signal. This motor then propels a belt-driven, precision-made subplatter for ultimate speed accuracy.

Manual turntable excluding cartridge.

Arm = PT-1706
Counterweight = 4-12g
Drive = belt
Motor = DC 12V
Speed range = 33.33/45 RPM
Speed change = switch
Active arm length = 250mm
Weight of the arm = 600g
Effective mass of the arm = 10g
Overhang = 15mm
Offset angle = 19
Anti-skating = variable at the beginning and end of the disc
Height adjustment (VTA) = yes
Length adjustment of the arm = yes
Level adjustment of the guide = yes
Level adjustment of the base = yes
Platter diameter/height/weight = 310mm x 40mm x 2kg

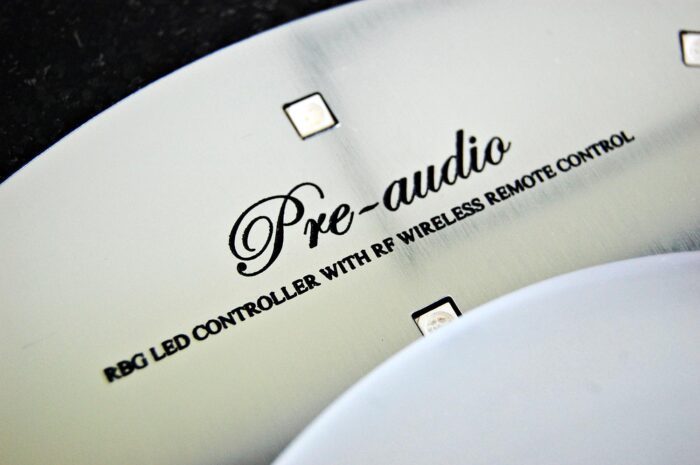

LED lights in the plinth = RGB
Dimensions = 350 x 450 x 250mm
Weight with wooden plinth = 25 kg
Weight with granite plinth = 50 kg
Power supply = 240V / 50Hz
Power consumption = 4W

Manual turntable with Nagaoka MP-110 moving magnet cartridge.

Arm = PT-1706
Counterweight = 4-12g
Drive = belt
Motor = DC 12V
Speed range = 33.33/45 RPM
Speed change = switch
Active arm length = 250mm
Weight of the arm = 600g
Effective mass of the arm = 10g
Overhang = 15mm
Offset angle = 19
Anti-skating = variable at the beginning and end of the disc
Height adjustment (VTA) = yes
Length adjustment of the arm = yes
Level adjustment of the guide = yes
Level adjustment of the base = yes
Platter diameter/height/weight = 310mm x 40mm x 2kg
LED lights in the plinth = RGB
Dimensions = 350 x 450 x 250mm
Weight with wooden plinth = 25 kg
Weight with granite plinth = 50 kg
Power supply = 240V / 50Hz
Power consumption = 4W

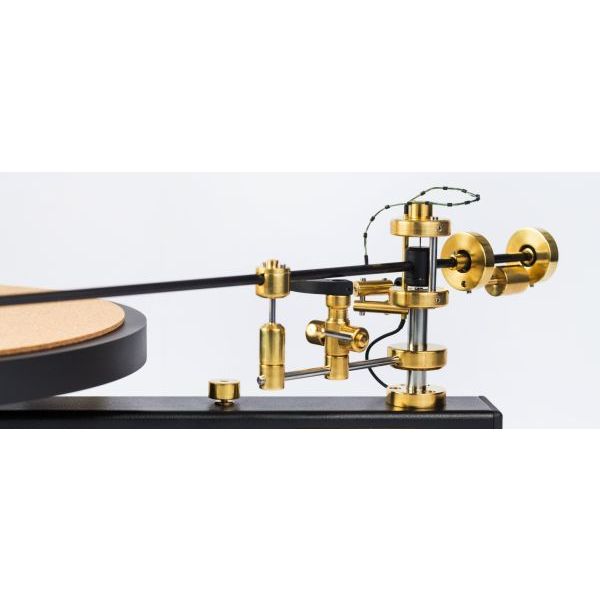

Manual turntable with T-shaped plinth. Excludes cartridge.

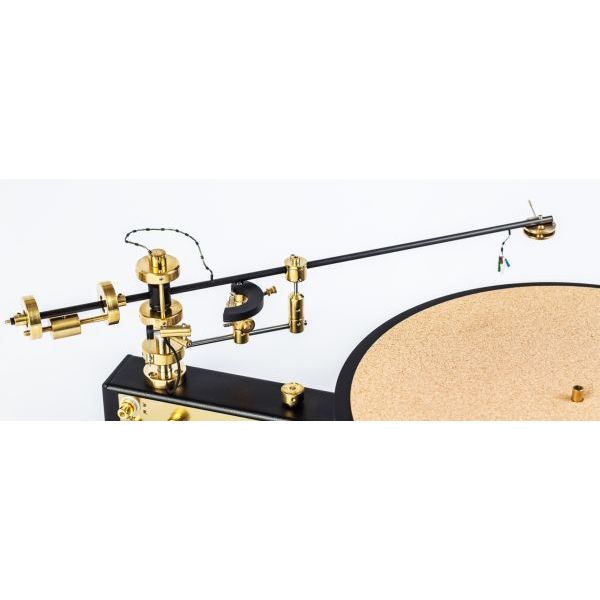

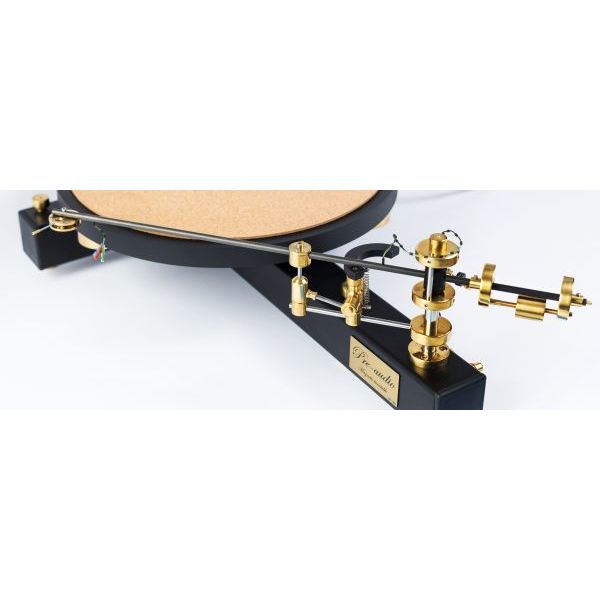

The base of the MT-1602 Magnetic turntable is made from stainless steel square profiles. Applied design minimized the impact of vibrations from the environment. The T-shaped base has three adjustable feet to easily level the turntable.

The tonearm is made from stainless steel and brass (polished to a high gloss). The bearing arm is suspended in a magnetic field, providing maximum isolation from the rest of the turntable and eliminating any friction elements. The inertia of this arm is very large.

Centripetal force in such arms is overcome by adjusting the weight. The mechanism has been designed to precisely adjust the strength to overcomes skating. By appropriate adjustment we get variable strength at the beginning and the end of the plate, allowing the needle to run freely and without distortion at any position on the disc. The insert is also isolated from the tonearm with a special holder. This holder is made from two rings connected together with a rubber spring element.

Tonearm = Magnetic Tonearm
Model = MT-1602 – 12”
Optional counterweight = for cartridges 4 – 12g
Downforce range = 5 – 30mN
Drive = belt to sub-platter
Motor = synchronous AC
RCA, Ground = jack gold plated
Speed range = 33,33 / 45 r.p.m.
Speed Variance = +/- 0,6%
Wow & Flutter = +/- 0,15%
Signal to Noise Ratio = -68dB
Speed change = manual
The length of the active arm = 300mm
Overhang = 15mm
Offset angle = 19
Effective mass = 10g
Total mass = 600g
Anti skating = variable at the beginning and end of the disc
Arm Height Adjustment (VTA) = + / – 15mm
Base Height Adjustment = +/- 5mm
Platter weight / diameter / height = 2kg / 310 / 30
Dimensions (mm) = 485 x 310 x 200
Weight = 7kg
Power supply = 240V / 50Hz
Power consumption = 2W
Colour = Black

Manual turntable with T-shaped plinth. Includes Nagaoka MP-110 moving magnet cartridge.

The base of the MT-1602 Magnetic turntable is made from stainless steel square profiles. Applied design minimized the impact of vibrations from the environment. The T-shaped base has three adjustable feet to easily level the turntable.

The tonearm is made from stainless steel and brass (polished to a high gloss). The bearing arm is suspended in a magnetic field, providing maximum isolation from the rest of the turntable and eliminating any friction elements. The inertia of this arm is very large.

Centripetal force in such arms is overcome by adjusting the weight. The mechanism has been designed to precisely adjust the strength to overcomes skating. By appropriate adjustment we get variable strength at the beginning and the end of the plate, allowing the needle to run freely and without distortion at any position on the disc. The insert is also isolated from the tonearm with a special holder. This holder is made from two rings connected together with a rubber spring element.

Tonearm = Magnetic Tonearm
Model = MT-1602 – 12”
Optional counterweight = for cartridges 4 – 12g
Downforce range = 5 – 30mN
Drive = belt to sub-platter
Motor = synchronous AC
RCA, Ground = jack gold plated
Speed range = 33,33 / 45 r.p.m.
Speed Variance = +/- 0,6%
Wow & Flutter = +/- 0,15%
Signal to Noise Ratio = -68dB
Speed change = manual
The length of the active arm = 300mm
Overhang = 15mm
Offset angle = 19
Effective mass = 10g
Total mass = 600g
Anti skating = variable at the beginning and end of the disc
Arm Height Adjustment (VTA) = + / – 15mm
Base Height Adjustment = +/- 5mm
Platter weight / diameter / height = 2kg / 310 / 30
Dimensions (mm) = 485 x 310 x 200
Weight = 7kg
Power supply = 240V / 50Hz
Power consumption = 2W
Colour = Black

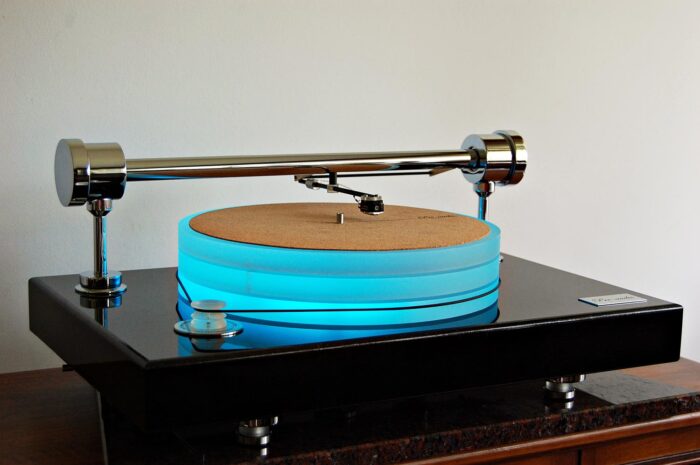

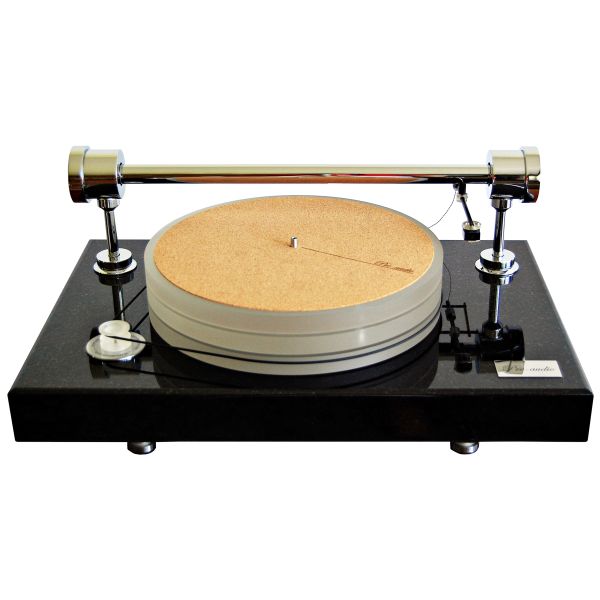

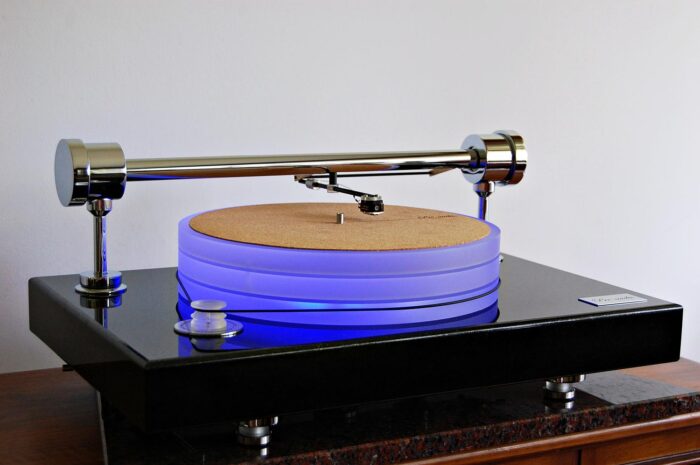

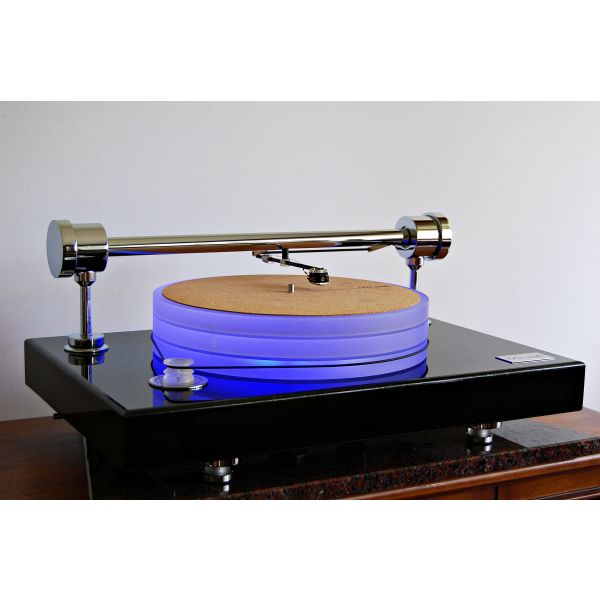

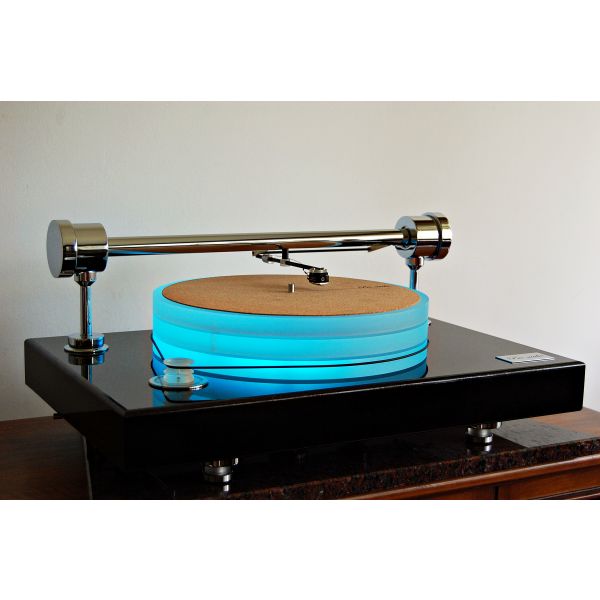

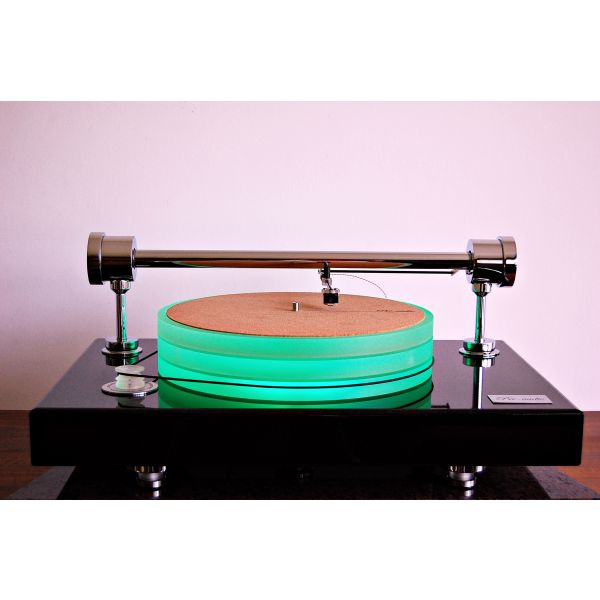

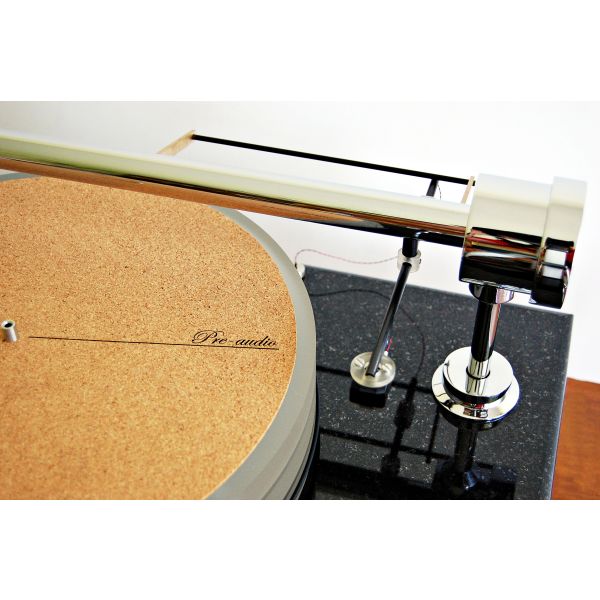

Manual turntable with tangenital tonearm. Excludes cartridge.

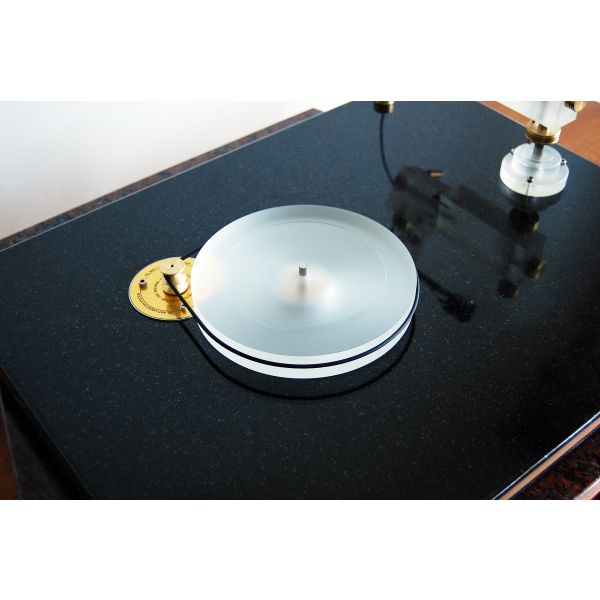

Sub-chassis = Granite

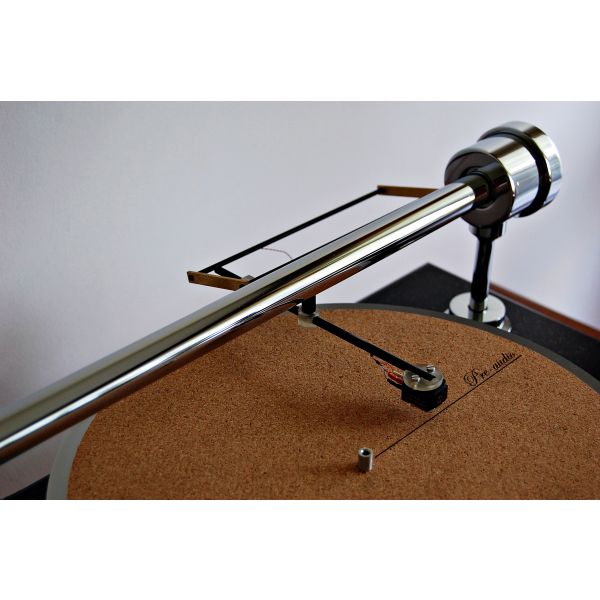

Arm = GL-1102
Downforce range = 5 – 30mN
Optional counterweight = 5 – 10g
Drive = belt
Motor = synchronous AC
RCA, Ground jack = gold plated
Speed range = 33,33 / 45 RPM.
Speed variance = +/- 0.2%
Wow and flutter = +/- 0.01%
Speed change = manual
Tracking error = 0
Anti-skating = 0
Height Adjustment = (VTA) + / – 25mm
Arm Height Adjustment = + / – 30mm
Platter Height Adjustment = + / – 10mm
Platter weight / diameter / height = 5kg / 310 / 70
Dimensions (mm) = 540 x 360
Weight = 60kg
Power supply = 240V / 50Hz
Power consumption = 10W

Manual turntable with tangenital tonearm. Includes Micro Benz Gold moving coil cartridge.

Sub-chassis = Granite
Arm = GL-1102
Downforce range = 5 – 30mN
Optional counterweight = 5 – 10g
Drive = belt
Motor = synchronous AC
RCA, Ground jack = gold plated
Speed range = 33,33 / 45 RPM.
Speed variance = +/- 0.2%
Wow and flutter = +/- 0.01%
Speed change = manual
Tracking error = 0
Anti-skating = 0
Height Adjustment = (VTA) + / – 25mm
Arm Height Adjustment = + / – 30mm
Platter Height Adjustment = + / – 10mm
Platter weight / diameter / height = 5kg / 310 / 70
Dimensions (mm) = 540 x 360
Weight = 60kg
Power supply = 240V / 50Hz
Power consumption = 10W

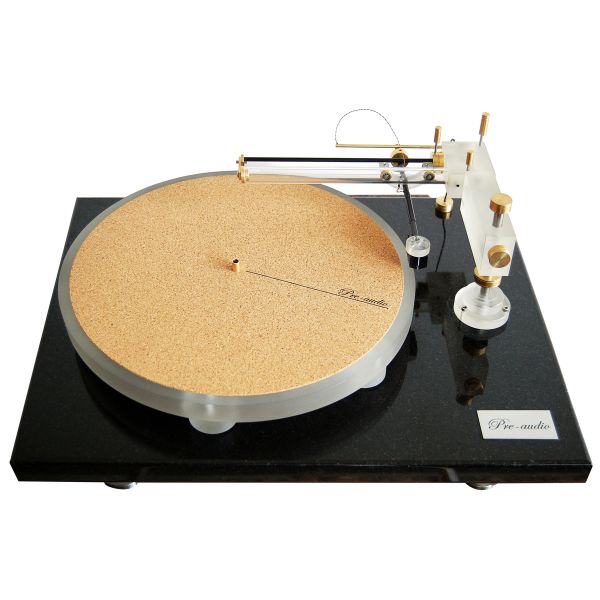

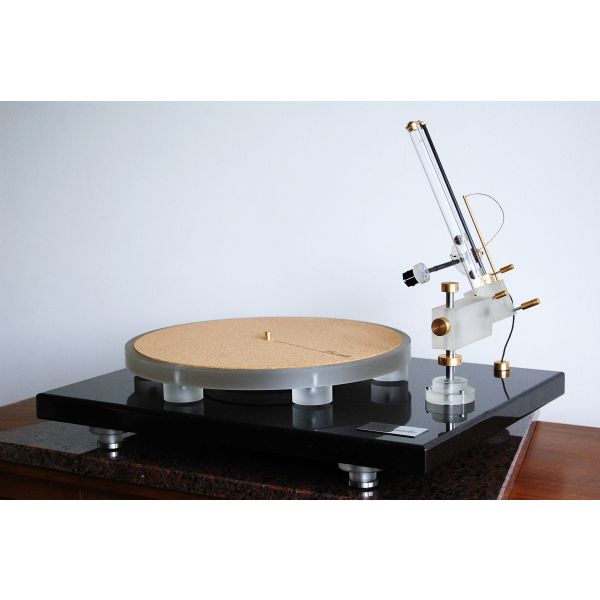

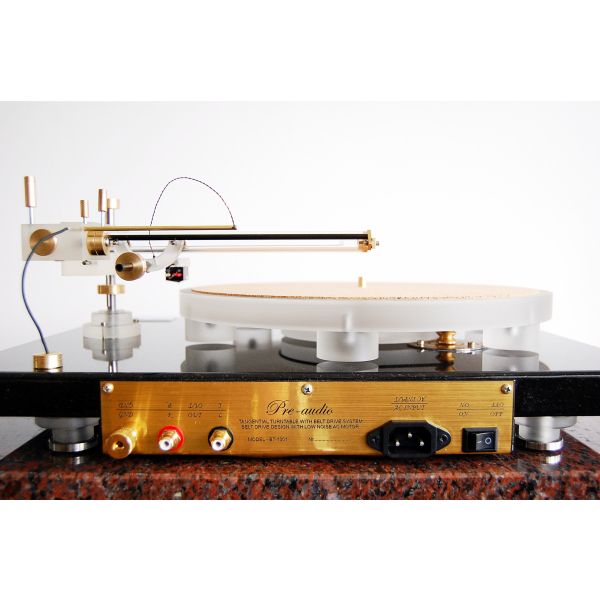

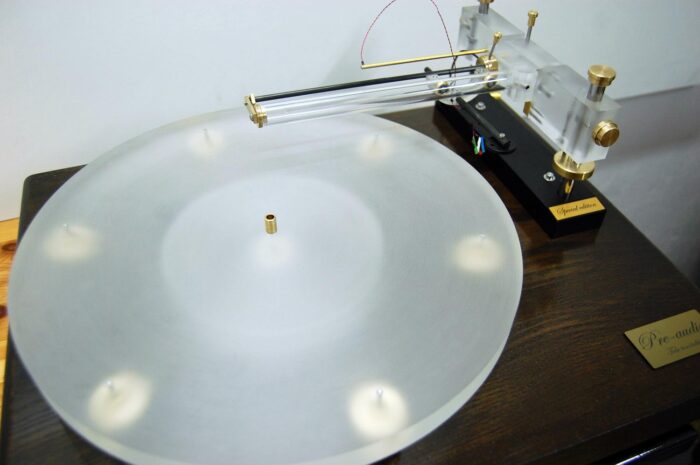

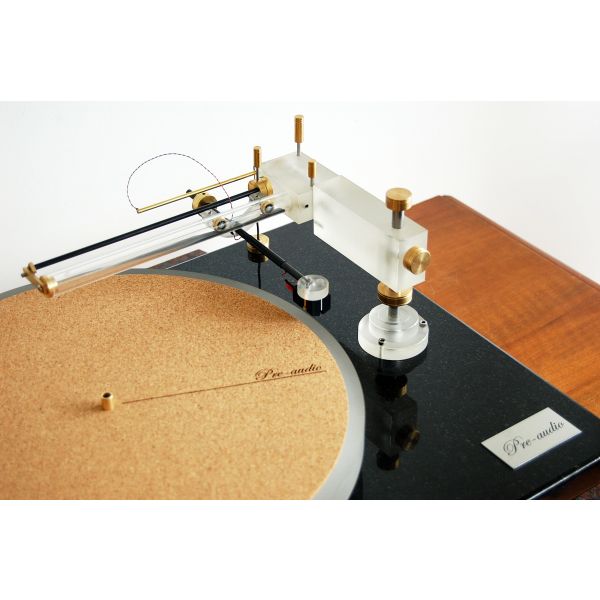

Manual turntable with granite plinth, and high-quality acrylic tangenital tonearm. Excludes cartridge.

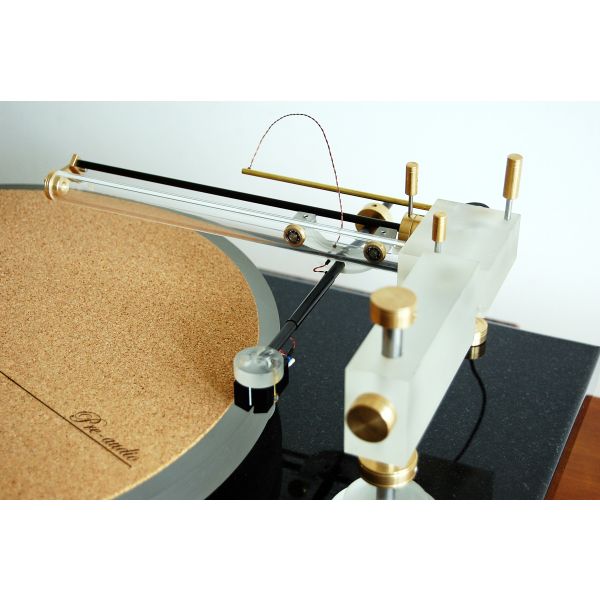

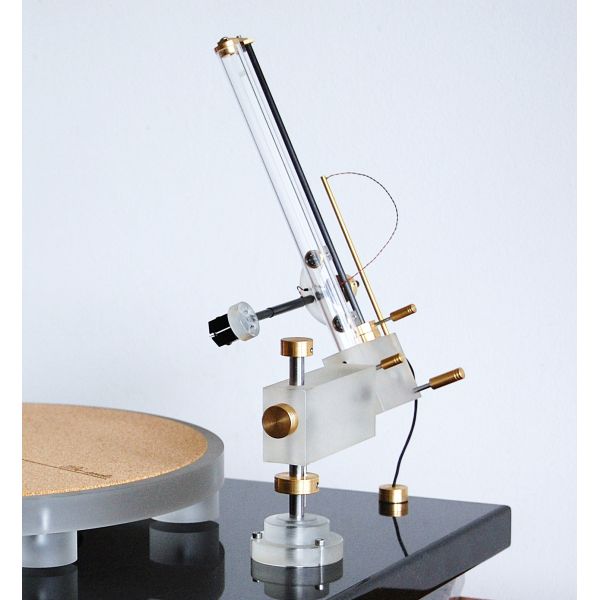

The heart of this model is the tonearm. The arm is made from acrylic and has a full range of adjustment. This allows you to adjust the arm to the majority of cartridges available on the market. The construction of the truck-arm consists of two balanced high-precision ball bearings. The special design minimises any effects from the guide bearings, thus increasing smoothness. Thanks to special components, the arm mechanism does not introduce noise, and positively affects the quality of reading vinyl. The turntable drive is a high-quality synchronous motor. The torque is transmitted via a belt to a sub-platter, on which rests an acrylic platter with six damping weights. The turntable stands on four adjustable aluminium legs for precise leveling. The Granite plinth uses an attractive material to provide mass, for further isolation.

Tonearm = Pre-audio BT-1301/G
Optional counterweight = for cartridge 5 – 10g
Pressure of cartridge = 5 - 30mN
Drive = belt
Motor = synchronous AC
RCA and Ground jack = Gold-plated
Speed range = 33.33 / 45 RPM
Speed deviation = +/- 0.5%
Speed flutter = +/- 0.1%
Signal to Noise ratio = -60dB
Change of speed = manual
Active length of tone arm = 45mm
Total mass = 25g
Effective mass = 25g
Overhang = 0
Offset angle = 0
Tracking error = 0
Anti-skating = 0
Height Adjustment (VTA) = + / – 10mm
Arm Height Adjustment range = +/- 5mm
Platter Height Adjustment = +/- 8mm
Platter weight/diameter/height = 2kg / 310mm / 40mm
Dimensions (mm) = 450 W x 350 D x 170 H
Weight = 18kg
Power supply = 240V / 50Hz
Power consumption = 2W
Colour / material = Star Galaxy / Granite

Manual turntable with granite plinth, and high-quality acrylic tangenital tonearm. Includes Audio Technica AT-120 moving magnet cartridge.

The heart of this model is the tonearm. The arm is made from acrylic and has a full range of adjustment. This allows you to adjust the arm to the majority of cartridges available on the market. The construction of the truck-arm consists of two balanced high-precision ball bearings. The special design minimises any effects from the guide bearings, thus increasing smoothness. Thanks to special components, the arm mechanism does not introduce noise, and positively affects the quality of reading vinyl. The turntable drive is a high-quality synchronous motor. The torque is transmitted via a belt to a sub-platter, on which rests an acrylic platter with six damping weights. The turntable stands on four adjustable aluminium legs for precise leveling. The Granite plinth uses an attractive material to provide mass, for further isolation.

Tonearm = Pre-audio BT-1301/G
Cartridge = Audio Technica AT-120
Optional counterweight = for cartridge 5 – 10g
Pressure of cartridge = 5 – 30mN
Drive = belt
Motor = synchronous AC
RCA and Ground jack = Gold-plated
Speed range = 33.33 / 45 RPM
Speed deviation = +/- 0.5%
Speed flutter = +/- 0.1%
Signal to Noise ratio = -60dB
Change of speed = manual
Active length of tone arm = 45mm
Total mass = 25g
Effective mass = 25g
Overhang = 0
Offset angle = 0
Tracking error = 0
Anti-skating = 0
Height Adjustment (VTA) = + / – 10mm
Arm Height Adjustment range = +/- 5mm
Platter Height Adjustment = +/- 8mm
Platter weight/diameter/height = 2kg / 310mm / 40mm
Dimensions (mm) = 450 W x 350 D x 170 H
Weight = 18kg
Power supply = 240V / 50Hz
Power consumption = 2W
Colour / material = Star Galaxy / Granite

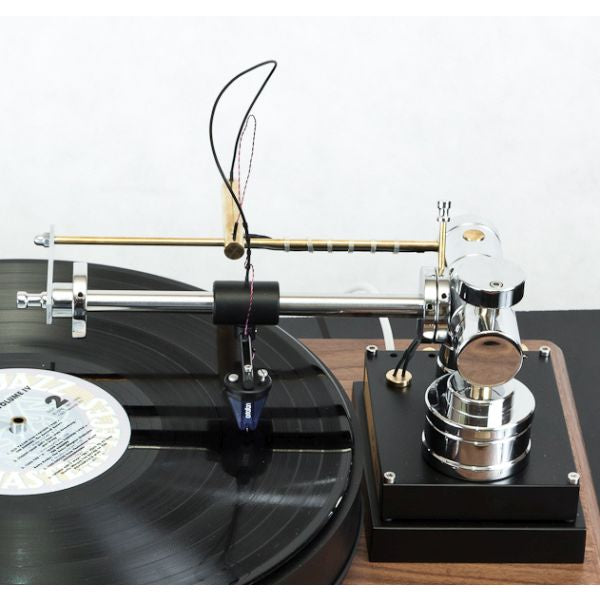

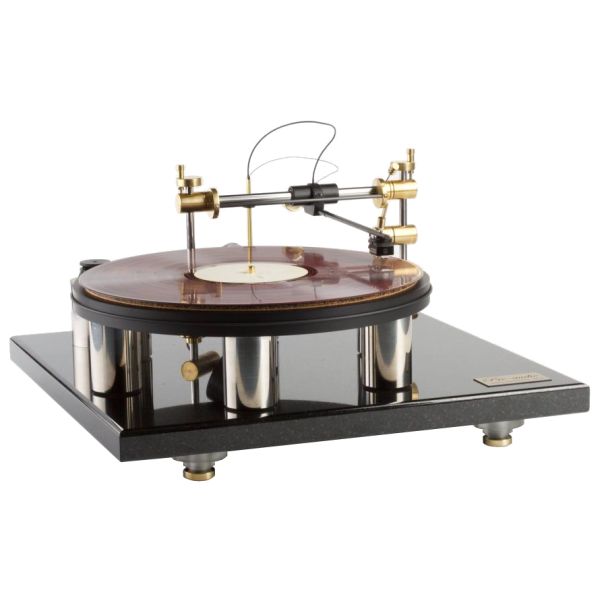

Manual turntable with tangenital air bearing tonearm. Excludes cartridge.

Tonearm = ATM-1401
Counterweight = 4-12g
Drive = 2 x belt
Motor = DC 12V
Speed range = 33,33/45 RPM
Speed change = switch
Active arm length = 200mm
Weight of the arm = 45g
Height adjustment (VTA) = yes
Length adjustment of the arm = yes
Level adjustment of the guide = yes
Level adjustment of the base= yes
Platter diameter/height/weight = 310 x 80 x 6kg
Bearing of the platter = MAGNETIC
Dimensions = 450 x 450 x 200mm
Weight with granite plinth = 35kg
Power supply 240V / 50Hz
Power consumption 8W

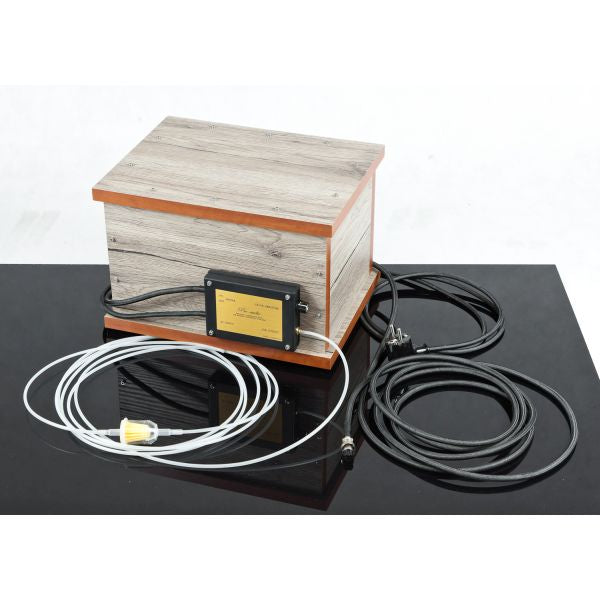

COMPRESSOR:
Pressure = 0-0.045MPa
Noise level = -20dB
Dimensions = 250 x 300 x 150mm
Weight = 5kg

Manual turntable with tangenital air bearing tonearm. Includes Audio Technica AT-33EV moving coil cartridge.

Tonearm = ATM-1401
Counterweight = 4-12g
Drive = 2 x belt
Motor = DC 12V
Speed range = 33,33/45 RPM
Speed change = switch
Active arm length = 200mm
Weight of the arm = 45g
Height adjustment (VTA) = yes
Length adjustment of the arm = yes
Level adjustment of the guide = yes
Level adjustment of the base= yes
Platter diameter/height/weight = 310 x 80 x 6kg
Bearing of the platter = MAGNETIC
Dimensions = 450 x 450 x 200mm
Weight with granite plinth = 35kg
Power supply 240V / 50Hz
Power consumption 8W

COMPRESSOR:
Pressure = 0-0.045MPa
Noise level = -20dB
Dimensions = 250 x 300 x 150mm
Weight = 5kg

DESCRIPTION

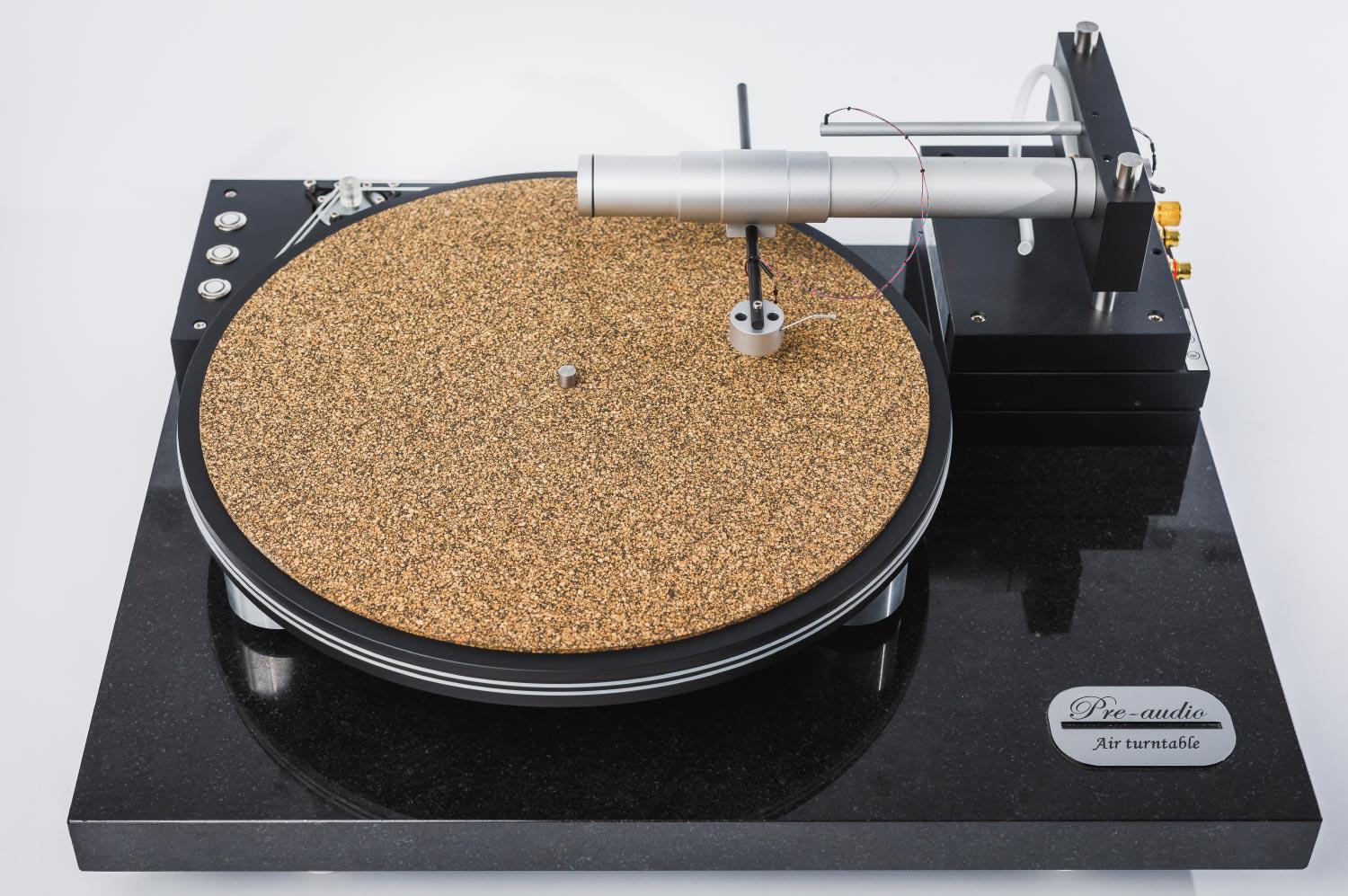

Manual turntable with tangenital air bearing tonearm. Excludes cartridge.

A very low air pressure (0.030MPa) is needed for this turntable to work properly. The pressure is easily produced by a silent compressor, which is an inseparable part of the turntable.

The way the arm is operated on the air cushion is quite simple. Thanks to the pressure from the compressor, the arm bearing is able to detach and levitate in the air along the guide. The pressure to the bearing is provided by a thin silicone hose.

Precise execution of the arm elements and reduction of losses allowed for the use of very low air pressure which reduced the compressor’s noise to absolutely zero.

The arm has a tilting system for easier handling and changing the plate. Thanks to the large calibration option, the arm can support most of the MM / MC cartridges available on the market.

Motor:

A silent DC motor (12V) was used to drive the disc. The motor next to the acrylic plate realizes the drive with two thin silicone straps.

The plate bearing consists of a sleeve made of bronze and a high-gloss polished axis. The whole plate is based on two balls immersed in an oil bath. The bearing is made with high precision so that an oil film is created between the two friction elements.

The turntable can play discs recorded at 33 and 45 r.p.m. The control panel located on the side of the turntable serves the purpose of changing the speed as well as correcting the rotation of the disc. As a standard, a high-quality power supply unit located in the compressor is attached to the turntable. This allowed the compressor to be controlled from the desktop on the turntable.

(Shown with timber plinth. Supplied with Granite plinth.)

SPECIFICATIONS

• OPTIONAL COUNTERWEIGHT CARTRIDGE WEIGHT: 5 – 10g
• PRESSURE OF CARTRIDGE: 5 – 30mN
• DRIVE: belt
• MOTOR: synchronous AC
• RCA, GROUND JACK: gold plated
• SPEED RANGE: 33,33 / 45 RPM
• SPEED DEVIATION: +/- 0,5%
• SPEED FLUTTER: +/- 0,1%
• SIGNAL TO NOISE RATIO: -60dB
• SPEED CHANGE: manual
• THE LENGTH OF THE ACTIVE ARM: 40mm
• MASS OF THE ARM: 30g
• TRACKING ERROR: 0
• ANTI-SKATING: 0
• HEIGHT ADJUSTMENT (VTA): + / – 10mm
• ARM HEIGHT ADJUSTMENT RANGE: +/- 5
• PLATTER HEIGHT ADJUSTMENT: +/- 8mm
• PLATTER WEIGHT / DIAMETER / HEIGHT: 3kg / 310 / 40
• DIMENSIONS (MM): 450 x 350 x 180
• POWER SUPPLY: 240V / 50Hz
• POWER CONSUMPTION: 2W
• WEIGHT: 25 kg
• PLINTH MATERIAL: Granite

COMPRESSOR

• PRESSURE: 0.035MPa
• POWER CONSUMPTION: 8W
• NOISE: 20dB
• DIMENSIONS (MM): 250 x 300 x 150

DESCRIPTION

Manual turntable with tangenital air bearing tonearm. Includes Denon DL-110 moving coil cartridge.

(Shown with timber plinth. Supplied with Granite plinth.)

SPECIFICATIONS

• OPTIONAL COUNTERWEIGHT CARTRIDGE WEIGHT: 5 – 10g
• PRESSURE OF CARTRIDGE: 5 – 30mN
• DRIVE: belt
• MOTOR: synchronous AC
• RCA, GROUND JACK: gold plated
• SPEED RANGE: 33,33 / 45 RPM
• SPEED DEVIATION: +/- 0,5%
• SPEED FLUTTER: +/- 0,1%
• SIGNAL TO NOISE RATIO: -60dB
• SPEED CHANGE: manual
• THE LENGTH OF THE ACTIVE ARM: 40mm
• MASS OF THE ARM: 30g
• TRACKING ERROR: 0
• ANTI-SKATING: 0
• HEIGHT ADJUSTMENT (VTA): + / – 10mm
• ARM HEIGHT ADJUSTMENT RANGE: +/- 5
• PLATTER HEIGHT ADJUSTMENT: +/- 8mm
• PLATTER WEIGHT / DIAMETER / HEIGHT: 3kg / 310 / 40
• DIMENSIONS (MM): 450 x 350 x 180
• POWER SUPPLY: 240V / 50Hz
• POWER CONSUMPTION: 2W
• WEIGHT: 25 kg
• PLINTH MATERIAL: Granite

COMPRESSOR

• PRESSURE: 0.035MPa
• POWER CONSUMPTION: 8W
• NOISE: 20dB
• DIMENSIONS (MM): 250 x 300 x 150

SPECIFICATIONS

• COUNTERWEIGHT: 4-12g
• ACTIVE ARM LENGTH: 200mm
• WEIGHT OF THE ARM: 30g
• EFFECTIVE MASS OF THE ARM: 10g
• OVERHANG: 15mm
• OFFSET ANGLE: 19
• ANTI-SKATING: variable at the beginning and end of the disc
• HEIGHT ADJUSTMENT (VTA): yes
• LENGTH ADJUSTMENT OF THE ARM: yes
• LEVEL ADJUSTMENT OF THE GUIDE: yes

DESCRIPTION

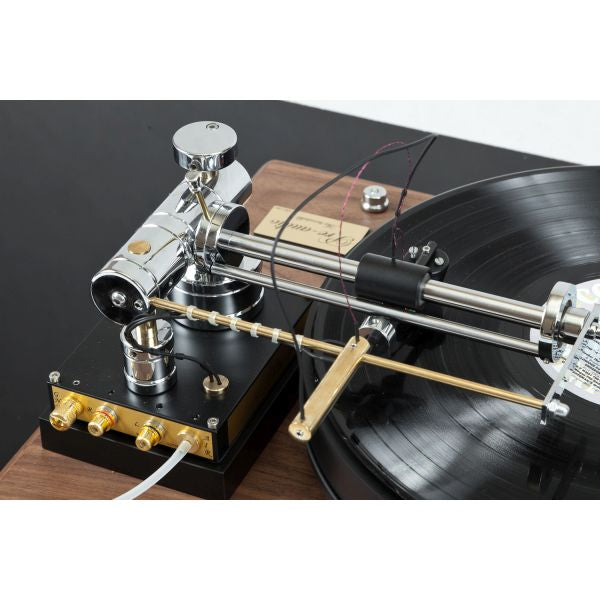

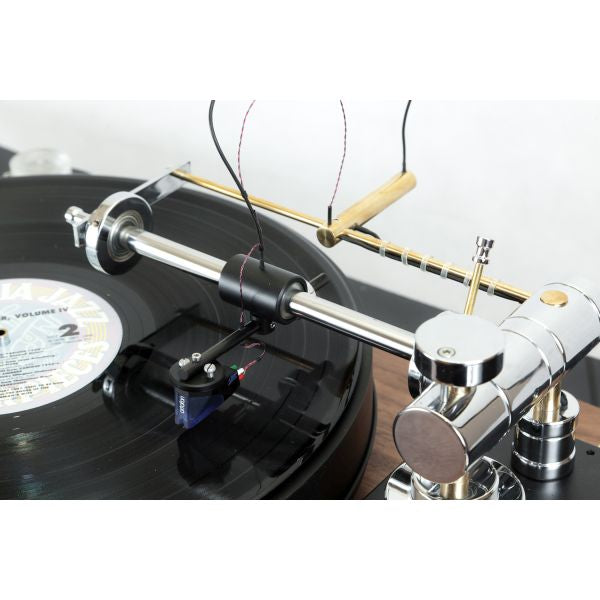

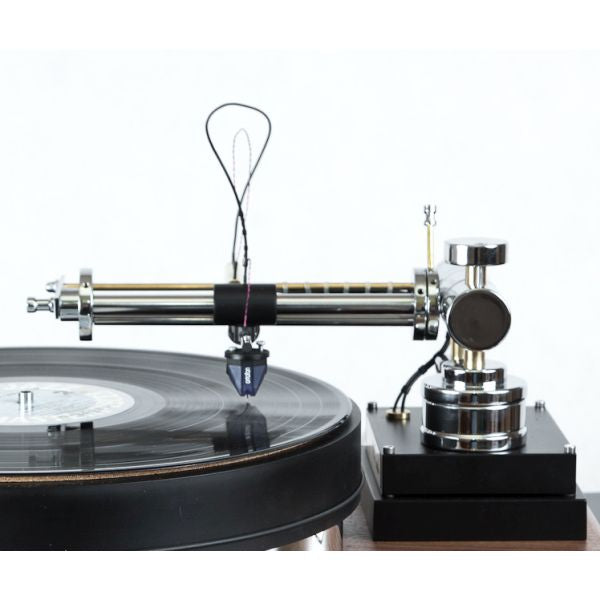

The tonearm is made from stainless steel and brass (polished to a high gloss). The bearing arm is suspended in a magnetic field, providing maximum isolation from the rest of the turntable and eliminating any friction elements. The inertia of this arm is very large.

Centripetal force in such arms is overcome by adjusting the weight. The mechanism has been designed to precisely adjust the strength to overcomes skating. By appropriate adjustment we get variable strength at the beginning and the end of the plate, allowing the needle to run freely and without distortion at any position on the disc.

SPECIFICATIONS

• COUNTERWEIGHT: 4-12g
• ACTIVE ARM LENGTH: 300mm
• WEIGHT OF THE ARM: 600g
• EFFECTIVE MASS OF THE ARM: 10g
• OVERHANG: 15mm
• OFFSET ANGLE: 19
• ANTI-SKATING: variable at the beginning and end of the disc
• HEIGHT ADJUSTMENT (VTA): yes
• LENGTH ADJUSTMENT OF THE ARM: yes
• LEVEL ADJUSTMENT OF THE GUIDE: yes

DESCRIPTION

Tangenital tonearm with air bearing. Includes compressor.

SPECIFICATIONS

• TRACKING ERROR: 0
• ANTI-SKATING: 0
• HEIGHT ADJUSTMENT: (VTA) + / – 25mm
• ARM HEIGHT ADJUSTMENT: + / – 30mm
• DOWNFORCE RANGE: 5 – 30mN
• OPTIONAL COUNTERWEIGHT: 5 – 10g

DESCRIPTION

Tangenital tonearm.

The BT-1301SEG tonearm is made from acrylic and has a full range of adjustment. This allows you to adjust the arm to the majority of cartridges available on the market. The construction of the truck-arm consists of two balanced high-precision ball bearings. The special design minimises any effects from the guide bearings, thus increasing smoothness. Thanks to special components, the arm mechanism does not introduce noise, and positively affects the quality of reading vinyl.

DESCRIPTION

Tangenital tonearm with air bearing. Includes compressor.

This hand crafted, high-end and audiophile-grade tangential turntable arm with air bearing includes a compressor. Supports both MM and MC cartridges for wide range of analogue sound quality. Get quality from your record collection of 45s and LPs.

SPECIFICATIONS

• COUNTERWEIGHT: 4-12g
• WEIGHT OF THE ARM: 45g
• ANTI-SKATING: variable at the beginning and end of the disc
• HEIGHT ADJUSTMENT (VTA): yes
• LENGTH ADJUSTMENT OF THE ARM: yes
• LEVEL ADJUSTMENT OF THE GUIDE: yes

DESCRIPTION

Tangenital tonearm with air bearing. Includes compressor.

A very low air pressure level (0.035MPa) is needed for the tonearm to work properly. This pressure is produced by a silent compressor. The way the arm is operated on the air cushion is quite simple. Thanks to the pressure from the compressor, the arm bearing is able to detach and levitate in the air along the guide. The pressure to the bearing is provided by a thin silicone hose. Precise execution of the arm elements and reduction of losses allowed for the use of very low air pressure which reduces the compressor's noise to a very low level. The arm has a tilting system for easier handling and changing the record. Thanks to the wide calibration range, the arm can support most MM / MC cartridges available on the market.

SPECIFICATIONS

• THE LENGTH OF THE ACTIVE ARM: 40mm
• MASS OF THE ARM: 30g
• TRACKING ERROR: 0
• ANTI-SKATING: 0
• HEIGHT ADJUSTMENT (VTA): + / – 10mm
• ARM HEIGHT ADJUSTMENT RANGE: +/- 5

COMPRESSOR:

• PRESSURE: 0-0.035MPa
• NOISE LEVEL: -20dB
• DIMENSIONS: 250 x 300 x 150mm
• WEIGHT: 5kg

DESCRIPTION

Tube phono pre-amplifier, supplied with Tesla tubes.

This handcrafted, high-end and audiophile-grade phono stage offers both MM and MC vacuum tube amplification. For the best record players and turntables, get the most from your LPs and 45s with this pure Class A phono preamplifier.

SPECIFICATIONS

• INPUT: MC (0.3V / 33?).  Noise (line) = 55dB
• INPUT: MM (2.5mV / 47k?).  Noise (line) = 45dB
• FREQUENCY RESPONSE: 15Hz – 150kHz
• HARMONIC DISTORTION: < 0.04%
• SIGNAL-TO-NOISE RATIO: 68dB
• ELECTRON TUBES: 4x ECC88, 2x ECC83S
• POWER SUPPLY: 240V / 50 Hz
• POWER CONSUMPTION: 40 Watt
• DIMENSIONS (MM): 285 x 225 x 40 + tubes
• WEIGHT: 5 kg
• COLOUR: Black/silver
