Regular price $11,999.00 Sale price$8,999.00 Save $3,000.00
/
10 interest free payments from $899.90 with


DESCRIPTION

The set includes:
Turntable with equipment
User manual
Warranty
Invoice
Transport box

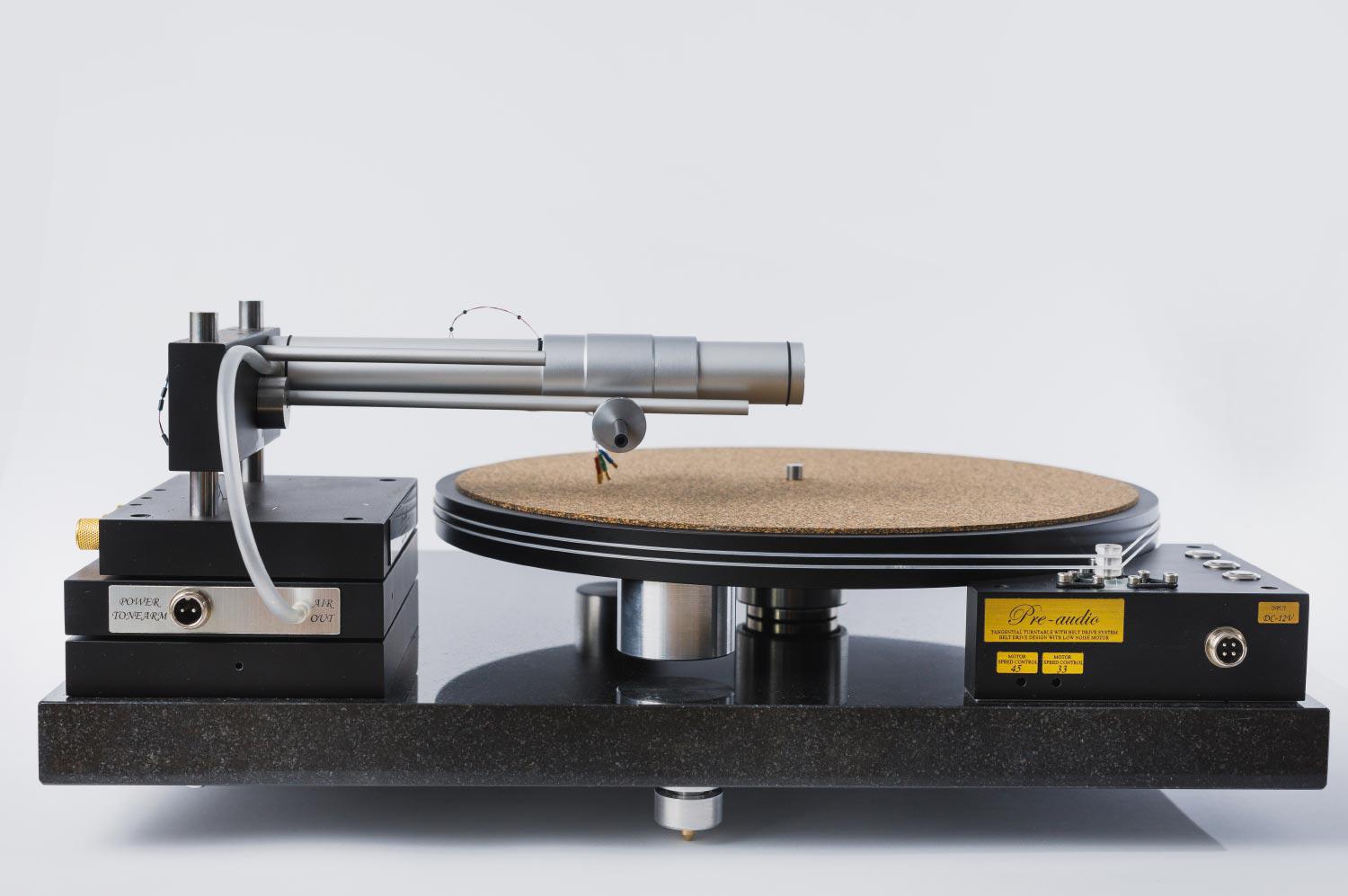

Tonearm:

A very low air pressure (0.030MPa) is needed for this turntable to work properly. The pressure is easily produced by a silent compressor, which is an inseparable part of the turntable.

The way the arm is operated on the air cushion is quite simple. Thanks to the pressure from the compressor, the arm bearing can detach and levitate in the air alongside the guide.

Due to the wide range of calibration options, the arm can support most MM /MC cartridges available on the market.

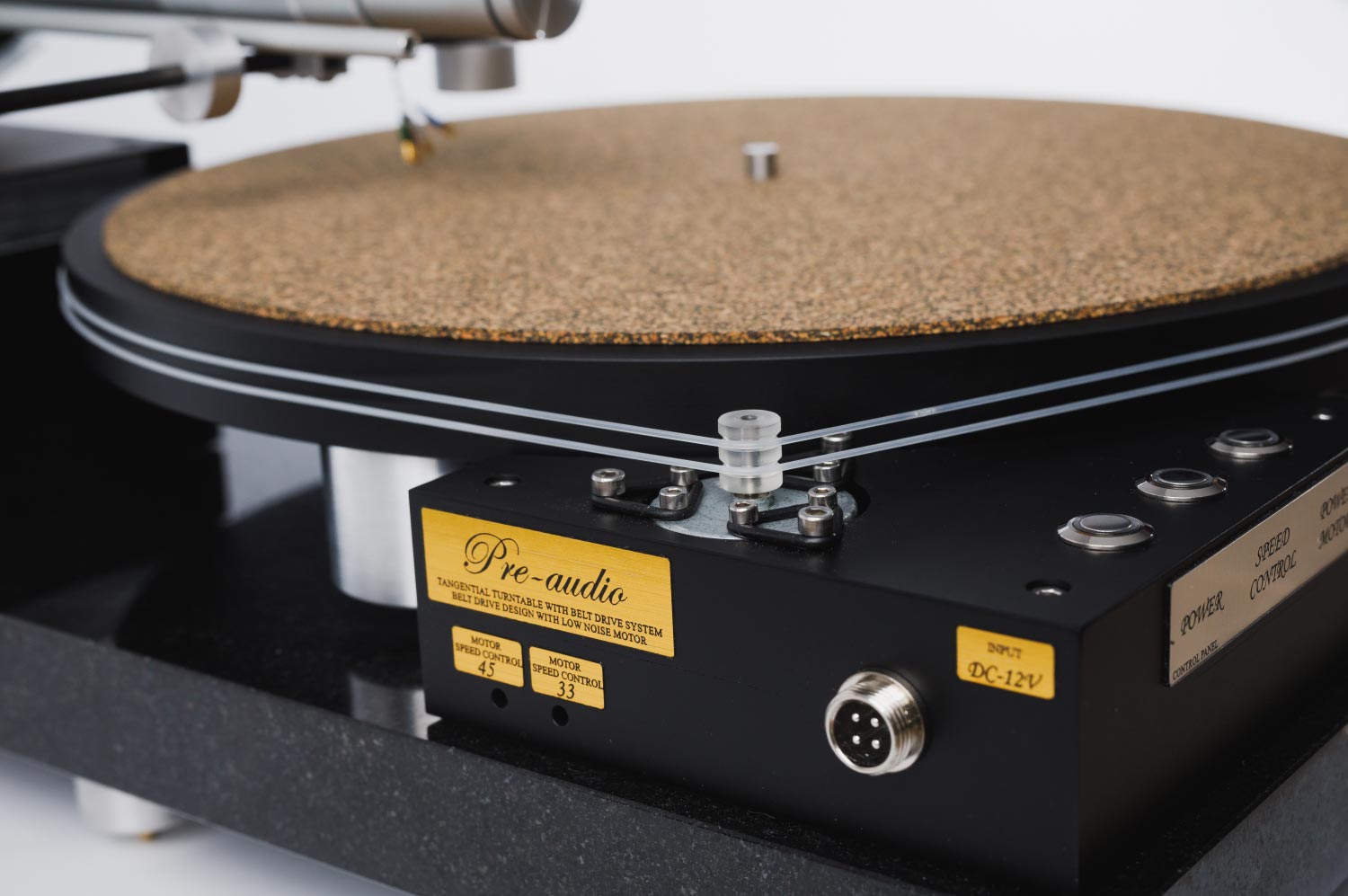

Motor:

A very quiet DC motor (12V) is used to drive the platter. The motor, which is located next to the acrylic platter, transmits the torque using two thin silicon belts.

The platter bearing consists of a sleeve made of bronze and a high-gloss polished axis. The whole platter is resting on two balls immersed in an oil bath. The bearing is made with such a high precision that an oil film is created between the two friction elements, further reducing friction and bearing noise.

It is possible to choose a magnetic platter bearing that is using very strong neodymium magnets.

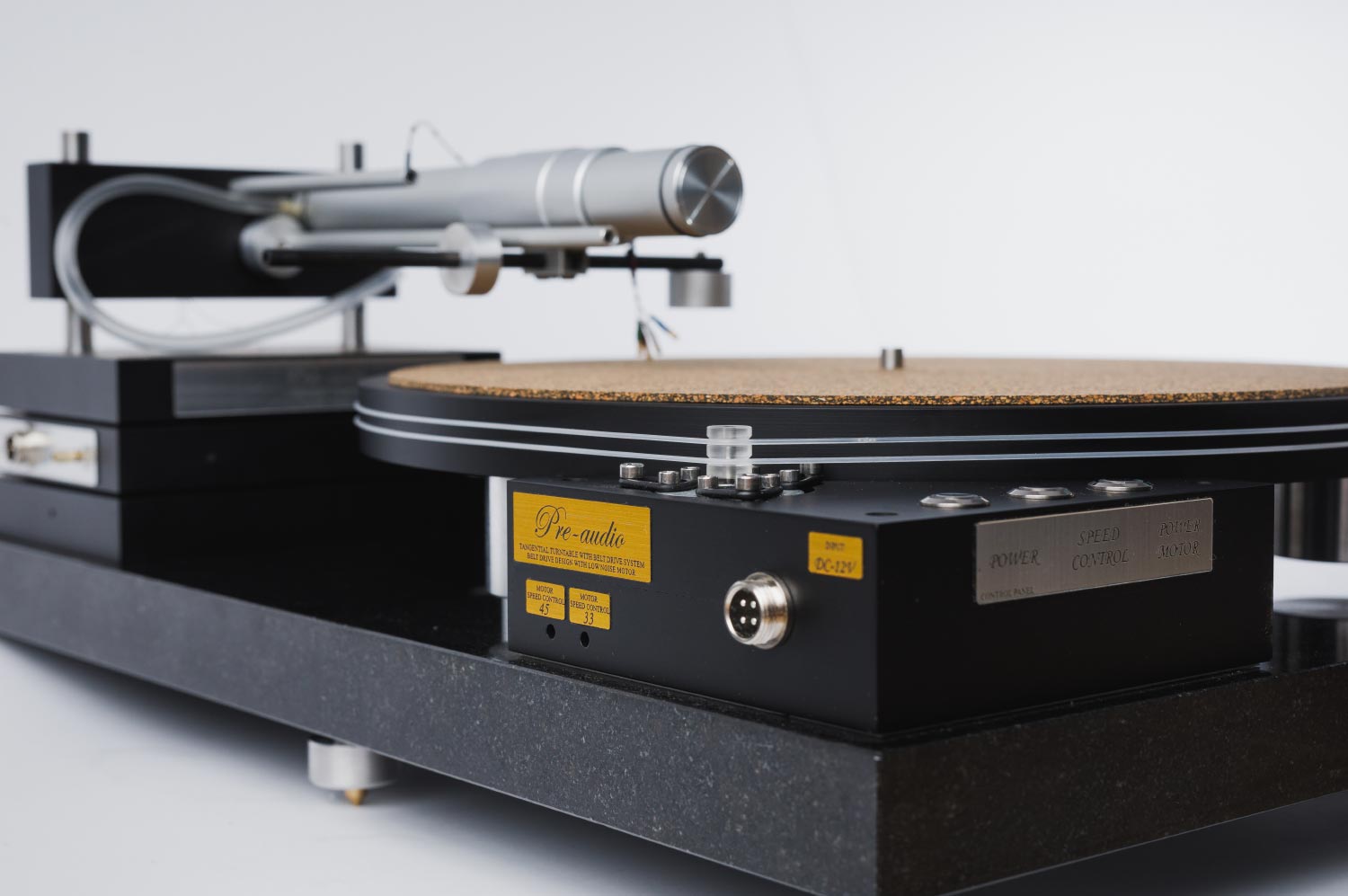

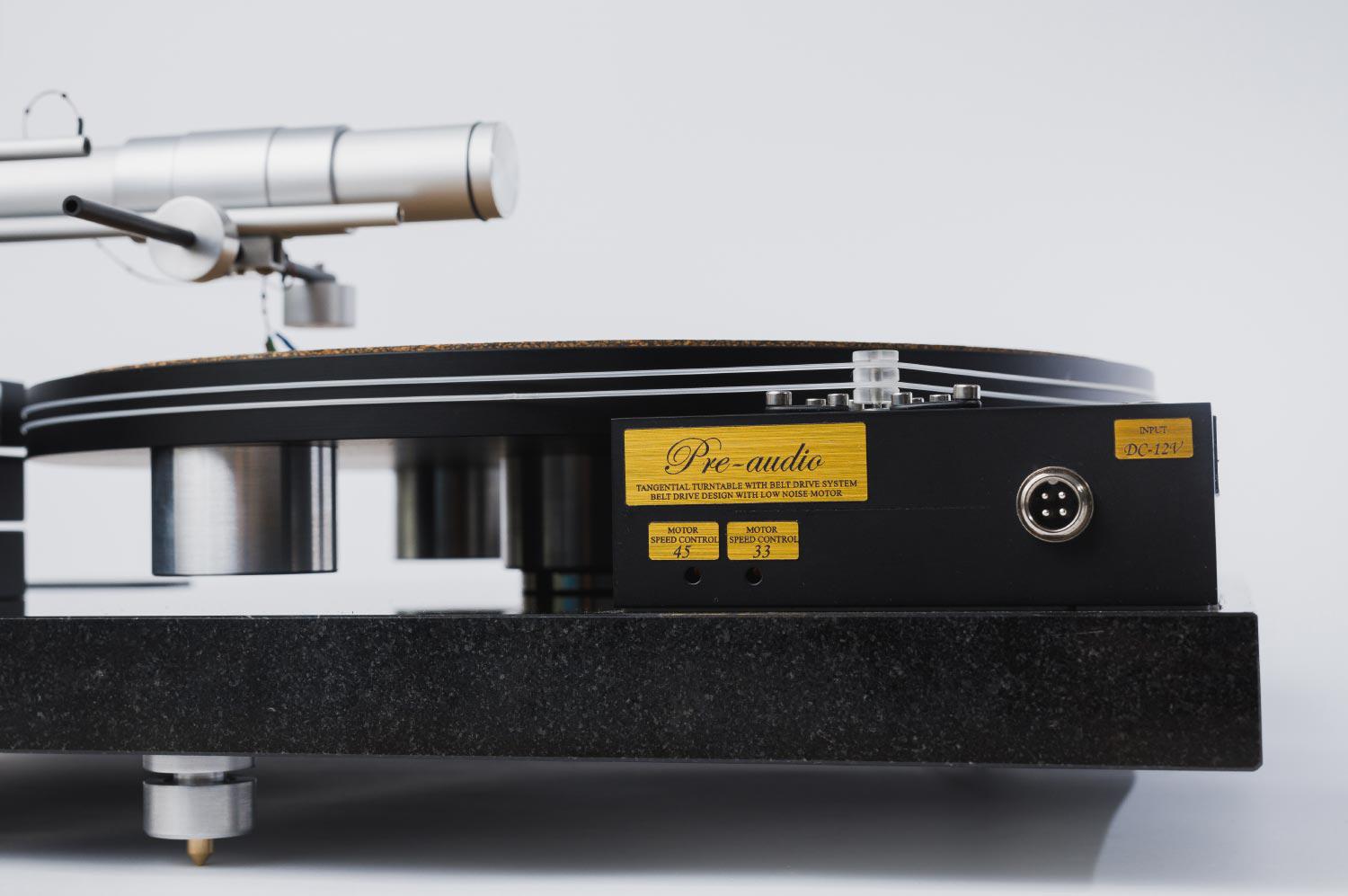

The turntable can play discs recorded at 33 and 45 RPM. The control panel located on the side of the turntable changes speeds and fine-adjusts the rotation of the disc. As a standard, a high-quality power supply unit, located in the compressor, is coming with the turntable. This allows for the compressor to be controlled from the panel on the turntable.



SPECIFICATIONS

Optional counterweight: cartridge weight 5 – 10g
Pressure of cartridge: 5 – 30mN
Drive: belt
Motor: synchronic AC

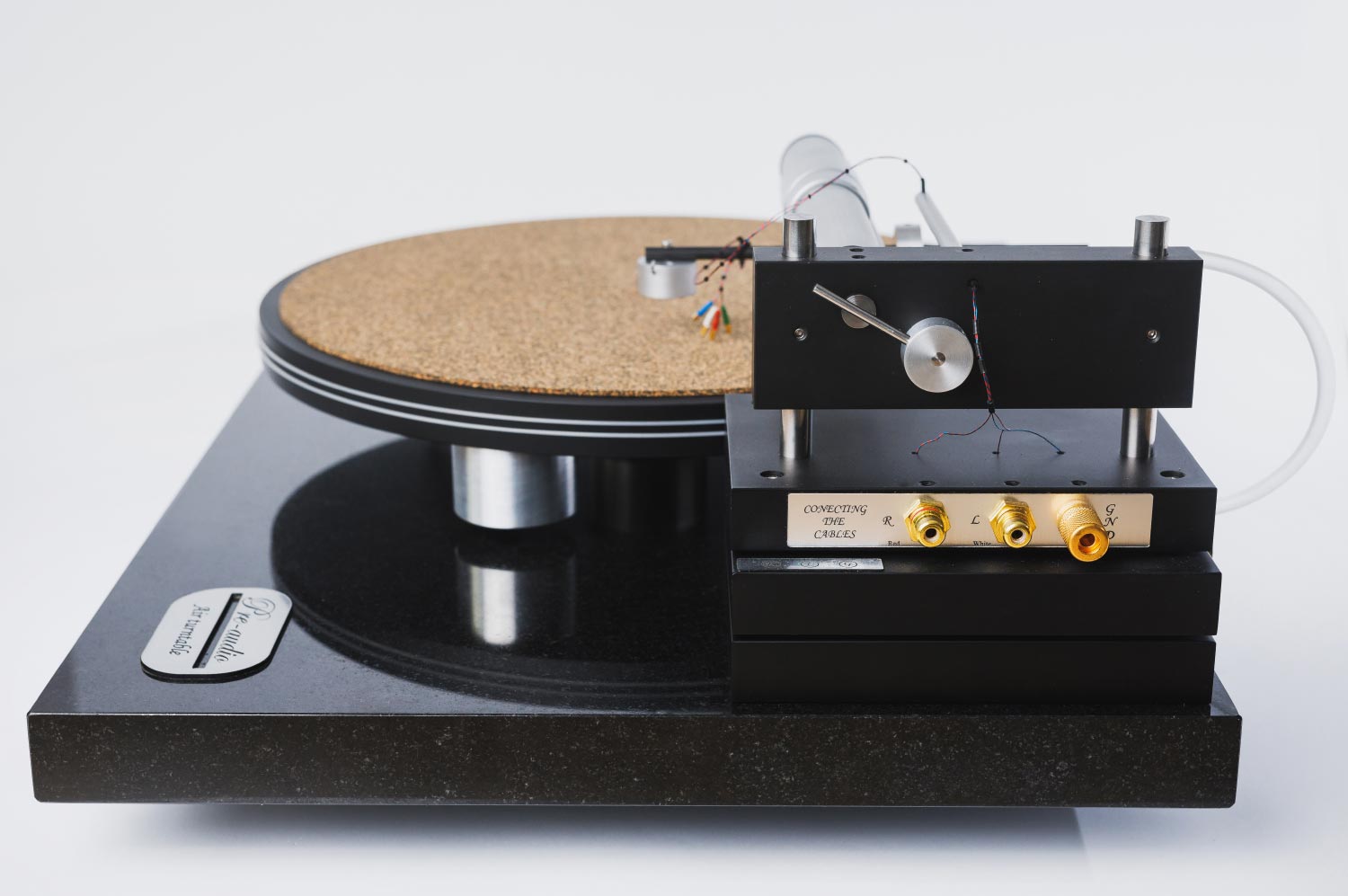

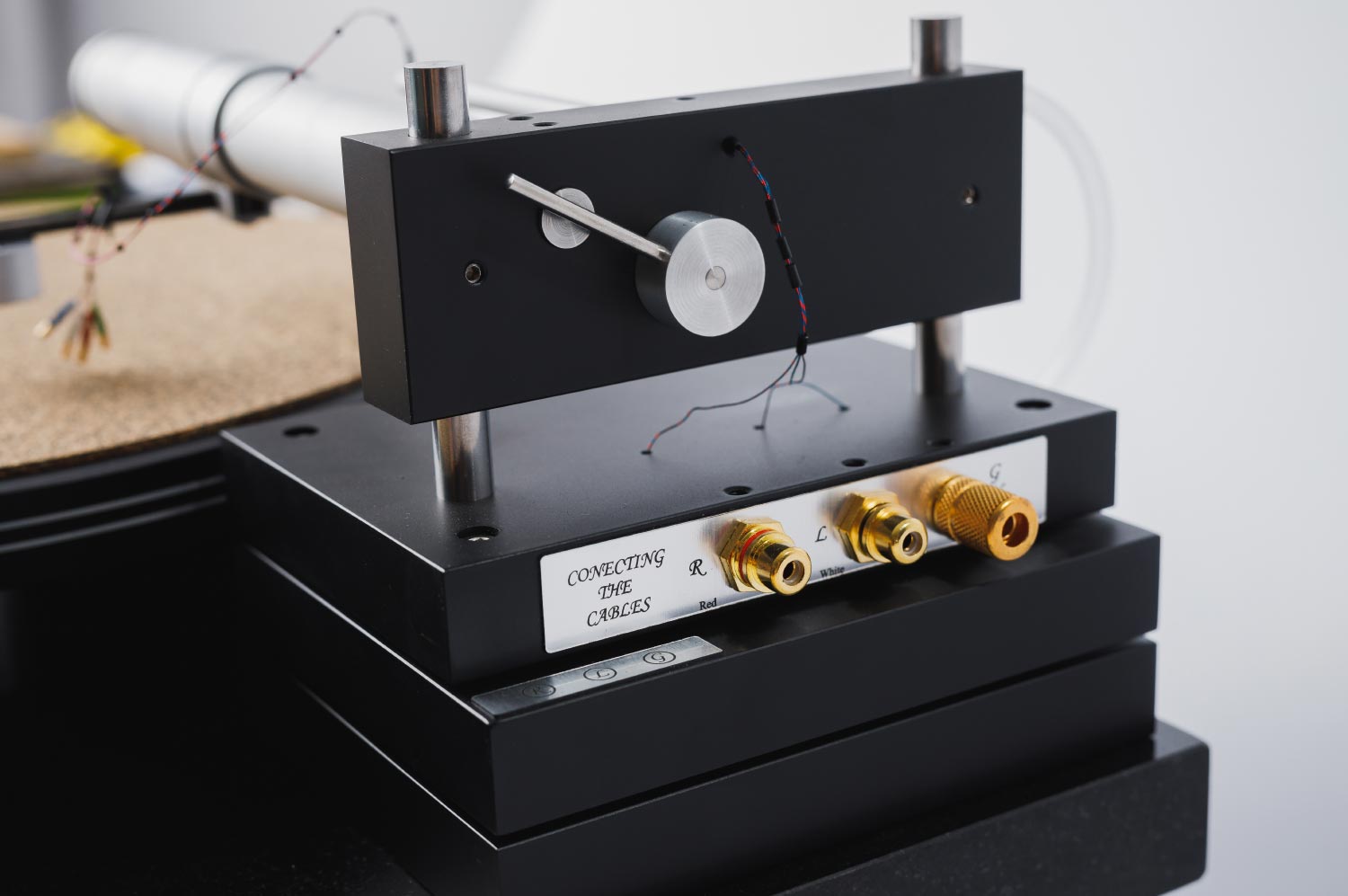

Gilt RCA, GND jack: gold plating
Speed range: 33,33 / 45,11 r.p.m.
Speed deviation: +/- 0,5%
Speed flutter: +/- 0,1%
Signal to noise ratio S/N: -60dB
Spead change: manual
The length of the active arm: 40mm
Mass of the arm: 30g
Tracking error: 0
Anti-skating: 0
Height Adjustment (VTA): + / – 10mm
Arm Height Adjustment range: +/- 5
Platter Height Adjustment: +/- 8mm
Platter weight/ diameter / height: 3kg / 310 / 40
Dimensions: 450 x 350 x 180
Weight: 20kg
Power supply: 110V-240V / 50Hz-0Hz
Power consumption: 2W
