| Weight | 1 kg |
|---|---|
| Dimensions | 6.5 × 6 × 9.8 cm |

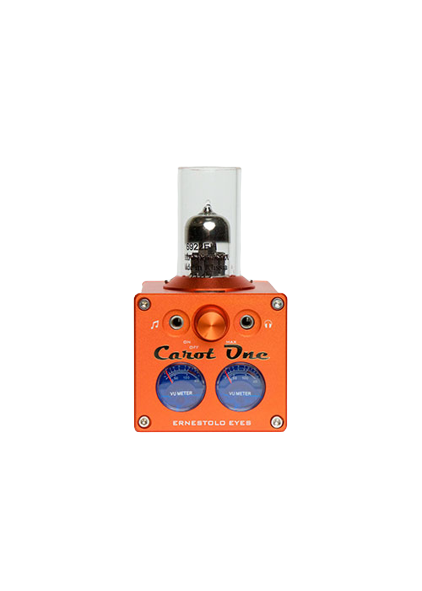

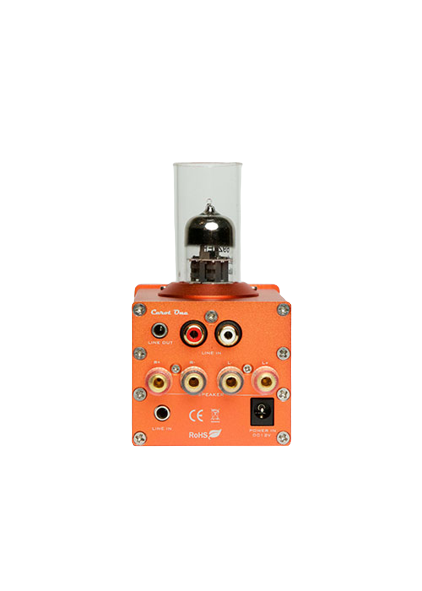

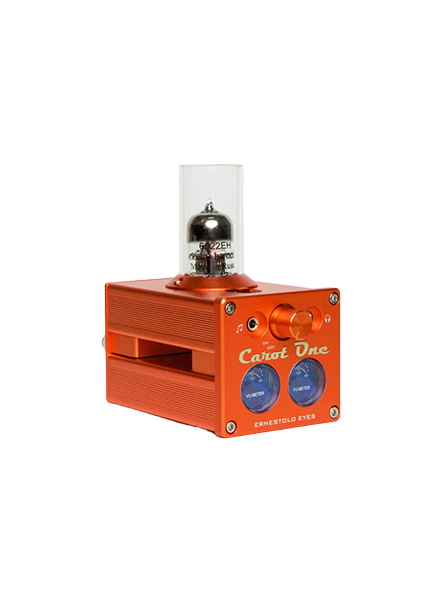

Carot One Ernestolo Eyes Integrated Tube Amplifier
$1,179.00
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
Version with Vu Meter of ERNESTOLO Tube Amplifier: with the Tube preamplifier section which contributes to the reproduction of the sweeter and more silky medium and high frequencies, and with a solid state Power Amplifier section tested for several years. The speaker connectors are gold plated. With a fashion design (metallescent orange colour) and with very small sizes that make it the smallest Hi-End valve amplifier in the world.
Product Description
- Only 65mm x 60mm x 98mm
- 6 watts + 6 watts 8 Ohm RMS
- 9 watts + 9 watts 6 Ohm RMS
- 11 watts+11 watts 4 Ohm RMS
Front panel jacks for headphones and iPod/iPhone/ input, rear panel connection for line level input
An ideal match for quality loudspeakers with efficiencies of 86-88 dB or more
Spectacular audio performance!
For excellent performances we recommend the COCAINE speakers
| T-Amp IC Tripath | TA2024 |
|---|---|
| Output Power | 2x15W, 2x6W |
| Signal-to-Noise Ratio (SNR) | 98dB |
| Dynamic Range | 98dB |
| IHF IM Distortion | 0.10% @ 1W, 4ohm |
| THD+Noise Audiophile Quality | 0.03% @ 9W 4ohm, 0.1% @ 11W 4ohm, 0.1% @ 9W 6 ohm, 0.1% @ 6W 8ohm |
| High Power | 10% @ 15W 4ohm, 10% @ 10W 4ohm |
| Power Efficiency | 81% @ 15W 4ohm, 90% @ 10W 8ohm |
| Audio Input | IN RCA (Left/Right) x 1 |
| Power Socket | (5.5mm/2.1mm) x 1 |
| Speaker OUT | RJ45 x1 |
| Other Volume & Knob Power | ON/OFF switch x |
| Power Indicator | (Blue LED) x1 |
| Power Supply | DC 12V-13.2V (max.)5 A |
| Signal-to-Noise Ratio (SNR) Headphone | 92dB |
| Power Output | 3.0 Watts per channel on 33 Ohms |
| Frequency | 15 Hz – 100 kHz -1dB |
| Input Impedance | 10k Ohms |
| Vacuum Tube | 6DJ8/6922 series or 12AU7 series, (exchangeable) |
| THD + Noise | 0.05% @ 10k ohm 0.15% @ 33 ohm |
| CD Audio Input IN RCA | (Left/Right) x 1 [3Vpp max.] |
| Power Socket Amplifier Unit | (5.5mm/2.1mm) x 1 |
| Audio Output OUT | 3.5mm x 1 |
| Headphone OUT | (3.5mm) x 1 |
| Knob Audio | power switch x 1 |
| Power Indicator Amplifier Uniti | (Blue LED under Tube Socket) x1 |
| Volume Knob | x1 |
| Power Supply Amplifier Uniti | DC 12V-13V (max.) 5A |
| Dimensions | (W)76mm x (H)60mm x (D)100mm |
| AC Input Universal | AC 100V-240V/50-60Hz |
| DC Output | DC 12V 5A (48W) |
| DC Plug | DC 2.1mm |
| Ripple & Noise | <= 25mV |
| Overvoltage Protection | 115%-150% |
| Overload Protection | 105%-150% |
| AC Adapter Dimensions | (L)78mm x (W)50mm x (H)33mm |
| Accessories | +12V power supply x 1, 2.1MM Power bifurcation line x 1, 3.5MM jumper cable x 1, Over-load Protection 105%-150%, Tube x1, User Guide x 1 |
