NAD C 368 INTEGRATED HYBRID DIGITAL DAC & STEREO AMPLIFIER C 368 at Audio Influence
NAD C368 Amplifier with BluOS 2i Module pre-installed

NAD C368 Amplifier with BluOS 2i Module pre-installed

No reviews

Regular price$2,599.00
/
10 interest free payments from $259.90 with


The NAD C368 Integrated Hybrid Digital DAC Amplifier is a versatile device that allows for easy connectivity to any audio device using Bluetooth aptX® and offers upgrades and customization through NAD’s Modular Design Construction. It features a range of inputs, including USB-A, Ethernet, and Wi-Fi, and supports MQA decoding, making it a powerful and high-quality option for all your audio needs.

NAD Electronics Logo

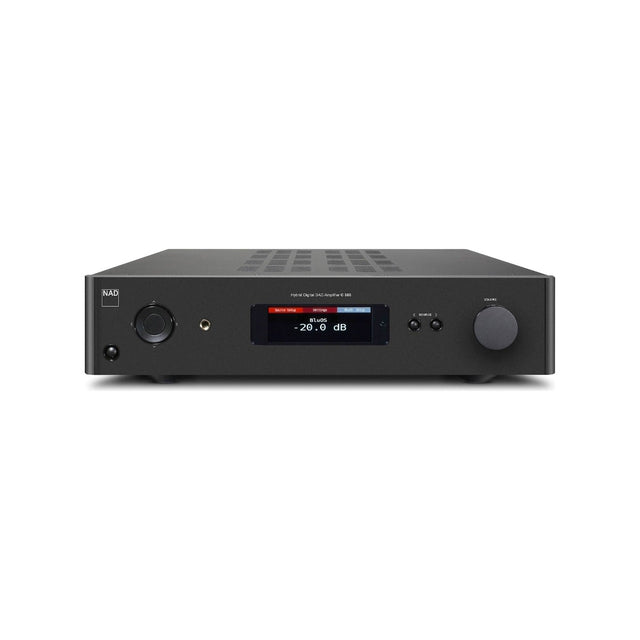

NAD C368 Integrated Hybrid Digital DAC Amplifier

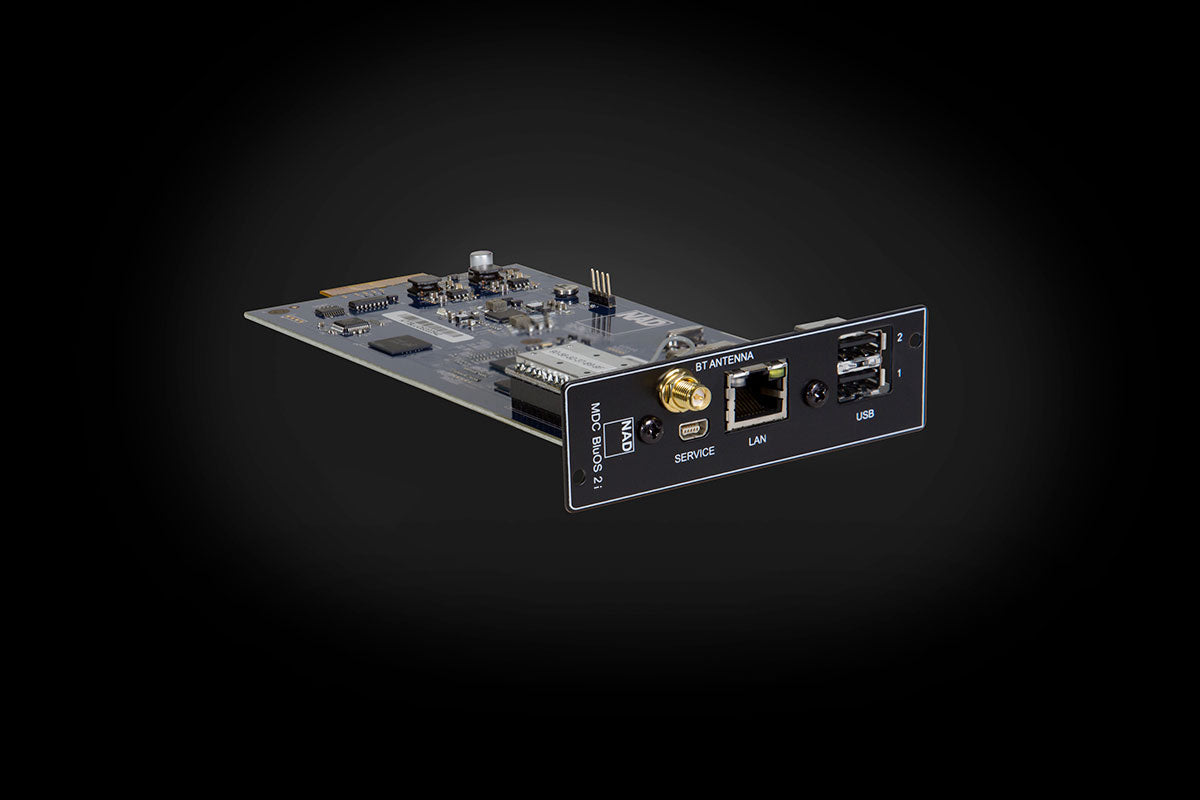

  • with C 368 with 1 x DD BluOS 2i Module Installed

Upgraded Features & Specs -

▪ Play 24/192 music from your home network, wired or wirelessly.

▪ Stream from a wide range of online music services.

▪ Use BluOS Controller app to easily access all your music, and control multi-room playback of other BluOS products.

▪ Supports MQA decoding

▪ Free apps for Android, iOS, Apple Watch, Kindle Fire, Windows, OSX

▪ Inputs: 2 x USB-A, Ethernet, Wi-Fi

▪ Includes: external USB Wi-Fi dongle, USB extender, BT antenna.

The C 368 is a hybrid digital audio converter and stereo amplifier designed to suit all your audio needs. Instantly connect to any audio device using Bluetooth aptX® and use the IR remote or Smartphone control app to make adjustments from anywhere. The C 368 uses NAD’s Modular Design Construction to make upgrades and customization quick and painless, whether you want 4K video capabilities or to connect to the BluOS music management system. This handy device offers the best of both worlds – massive power and stunning audio with minimal noise or distortion.

FEATURES

  • 80W x 2 Continuous power into 8 or 4 Ohms
  • Bluetooth A2DP with aptX supported
  • MM Phono input
  • Analogue line inputs
  • SPDIF coax and optical inputs
  • Speaker A, Speaker B
  • Stereo or Bridge mode configuration
  • Preamp/Subwoofer out
  • Headphone amplifier
  • MDC Slots for future upgrades
  • IR Remote
  • Smartphone Control App
  • 12V Trigger in/out
  • IR in/out
  • RS-232 Serial port for control
  • Control4, Crestron, RTI, URC, AMX, Savant, Elan certified

Preamplifier

Line Input, Pre Out

  • THD (20Hz-20kHz)
  • <0.005% at 2V out
  • Signal/Noise Ratio
  • >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
  • Channel Separation
  • >80dB (1kHz); >70dB (10kHz)
  • Input Impedance (R and C)
  • 22 kilohm + 100pF
  • Maximum Input Signal
  • >4.5Vrms (ref. 0.1% THD)
  • Output Impedance
  • Source Z + 240 Ohm
  • Input Sensitivity
  • 93mV (ref. 500mV out, Volume maximum)
  • Frequency Response
  • ±0.03dB (20Hz-20kHz)
  • Maximum voltage output – IHF load
  • >4.5V (ref. 0.1% THD)
  • Tone Controls
  • Treble: ±7.0dB at 20kHz
    Bass: ±7.0dB at 60Hz
    Balance: -10dB

Phono Input, Pre Out

  • THD (20Hz-20kHz)
  • <0.01% at 2V out
  • Signal to Noise Ratio
  • >84dB (200 Ohm source; A-weighted, ref. 500mV out)
    >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
  • Input Sensitivity
  • 1.44mV (ref. 500mV out, Volume maximum)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Maximum Input Signal at 1kHz
  • >80mVrms (ref. 0.1% THD)

Line Input, Headphone Out

  • THD (20Hz-20kHz)
  • <0.005% at 1V out
  • Signal/Noise Ratio
  • >110dB (32 Ohm loads; A-weighted, ref. 2V out, unity gain)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Channel Separation
  • >60dB at 1kHz
  • Output Impedance
  • 6 Ohms

General Specifications

  • Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
  • >80W (ref. 20-20kHz at rated THD, both channels driven)
  • Continuous Output Power into 8 Ohms (Bridge Mode)
  • 300W (at 20-20kHz at THD 0.03%)
  • THD (20Hz-20kHz)
  • <0.03% (250mW to 80W, 8 Ohms and 4 Ohms)
  • Signal to Noise Ratio
  • >98dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)
  • Clipping Power
  • >95W (at 1kHz 0.1% THD)
  • Clipping Power (Bridge Mode)
  • >315W (at 1kHz 0.1% THD)
  • IHF Dynamic Power
  • 8 Ohms 120W
    4 Ohms 200W
    2 Ohms 250W
  • IHF Dynamic Power (Bridge Mode)
  • 8 Ohms 500W
    4 Ohms 560W
  • Peak Output Current
  • >20A (in 1 Ohm, 1ms)
  • Damping Factor
  • >300 (ref. 8 Ohms, 20Hz and 6.5kHz)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Channel Separation
  • >75dB (1kHz)
    >70dB (10kHz)
  • Input Sensitivity (for 80W in 8 Ohms)
  • Line In: 470mV; Digital In: 21% FS
  • Sample Rate
  • up to 24 bit/192kHz
  • Frequency Band
  • 2.402G-2.480G
  • Maximum Transmit Power (dBm)
  • 7dBm ±2dBm

Power Consumption

  • at Auto Standby ON and Network Standby OFF
  • 0.5 Watts*
  • at Auto Standby ON and Network Standby ON
  • 1.2 Watts**
  • OFF mode (Power switched OFF)
  • 0.1 Watts

    Weight & Dimensions

    • Gross Dimensions (W x H x D)*
    • 435 W x 100 H x 390 D mm
    • Net Weight
    • 7.8kg (17.2lb)
    • Finish: Black

    *Gross dimensions include feet, extended buttons and rear panel terminals
