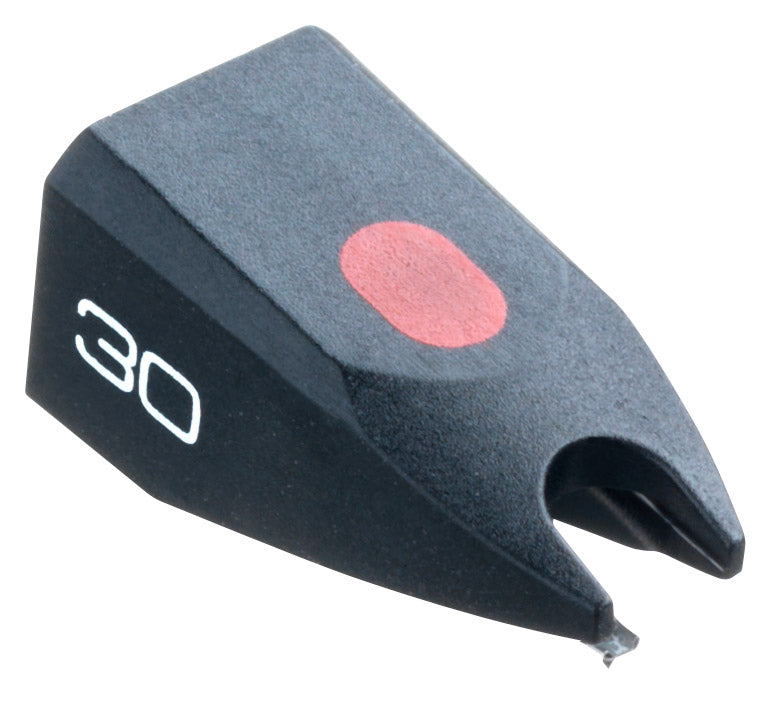

Ortofon Hi-Fi 30 Replacement Stylus

Brand: Ortofon

No reviews

Regular price$479.00
/
10 interest free payments from $47.90 with


En

Technical specifications

Frequency range - 20-29.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 90 µm
Compliance, dynamic, lateral - 25 µm/mN
Stylus type - Nude Fine LIne
Stylus tip radius - r/R 8/40 µm

*) Typical value

Equivalent stylus tip mass - 0,3 mg
Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended - 1.5 g (15 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H
