Plinius Hiato Integrated Stereo Amplifier

Plinius Hiato Integrated Amplifier

With 300 watts per channel the Hiato integrated stereo amplifier is a serious piece of equipment capable of driving big, difficult to drive speakers. It masters complex musical pieces that many dedicated power amps struggle with to give you spine tingling detail in the treble and control over the bass and mid range that is a pure delight.

If you are looking for an integrated amplifier solution in your music system but you don't want to sacrifice the benefits that true, well controlled power can bring then this amplifier is for you.

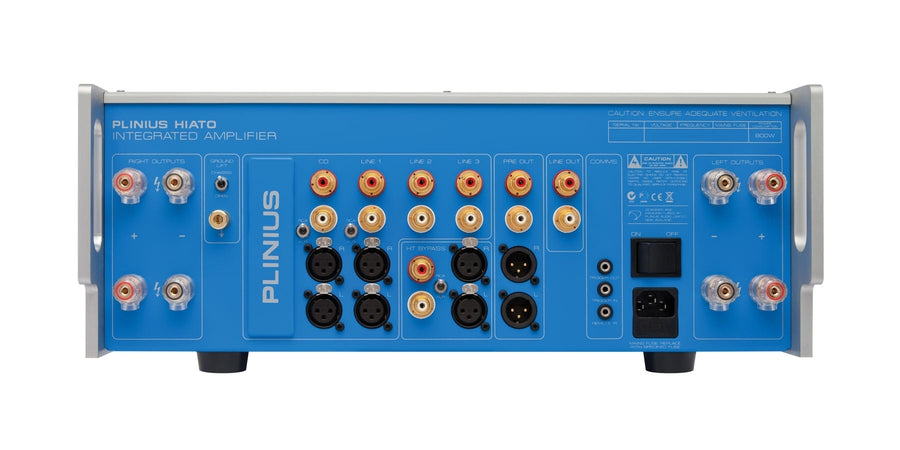

The rear panel layout includes four line level inputs and a user adjustable phono input. High quality WBT RCA connectors are used on all line level and phono inputs with additional balanced XLR inputs for CD and Line 1. It has RCA and XLR HT bypass input, remote IR input and 12V input/output triggers. There are four pairs of output connectors allowing bi-wired speaker applications, line level output for archiving and pre-out for bi-amping. The phono stage is optional.

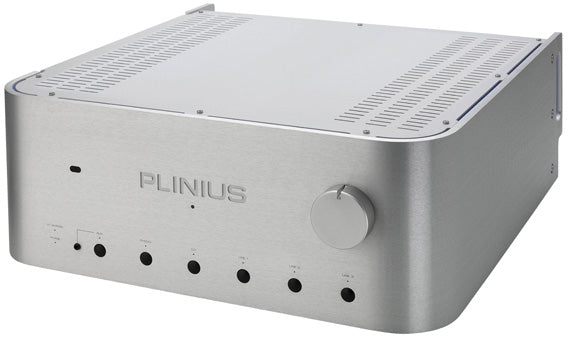

On the front panel a small, unobtrusive 3.5mm jack allows a casual user to connect portable media, and the Hiato's full function remote control also operates the Plinius CD players.

Features

OPTIONAL PHONO STAGE
The preamplifier can be fitted with an optional phono stage based on a scaled version of the Koru design. The Phono has four gain settings and five loading settings to allow for suitable cartridge matching.

REMOTE TRIGGER INPUT AND OUTPUT
Terminals for remote trigger connection allow a processor signal to bypass the preamplifier stage or instigate the power amp to come out of standby.

GROUND LIFT SWITCH
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.

AURICAP CAPACITORS
Audience AV supply the Auricap XO capacitors used in key areas of the circuit. The Auricap was chosen for its superior clarity and dynamic ability.

AURIC WIRING
Audience AV supply the Auric OFC wire used in the input stage of the amplifier. The Auric was chosen for its high workability and natural sound.

LINE OUT
The Line out provides a line level output, carrying the selected source signal. The Line Out allows for the signal to go on to recording equipment, headphone amplifiers or sub-woofer speakers.

RC5 INPUT
The RC5 input allows for connection to wired remote interfaces so it can be used as part of an automated system.

WBT AND NEUTRIK CONNECTORS
High quality WBT RCA and Neutrik XLR input connectors are fitted along with WBT output speaker terminals to ensure low distortion interface between your cables and the amplifier.

SILTECH WIRING
Siltech premium 'G7' silver/gold wire provides a perfect connection between components to give clear, fast and detailed presentation of the music signal.

ALUMINIUM CONSTRUCTION.
The aluminium lid and panels provide a non-magnetic cover to reduce unwanted magnetic fields that can interfere with the sensitive audio signals.

Specifications

POWER
300 watts RMS per channel into 8 ohms
450 watts RMS per channel into 4 ohms
Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion

FREQUENCY RESPONSE
20Hz to 20kHz ±0.2dB
-3dB at 70kHz

DISTORTION
Typically <0.05% THD at rated power
0.1% THD and IM worst case prior to clipping

CURRENT OUTPUT
50A short duration peak per channel
Fuse protected

SLEW RATE
Typically 5µs

HUM & NOISE
90dB below rated output 20Hz to 20kHz unweighted

POWER/CURRENT CONSUMPTION
800W
0.6A (138W) Class AB Idle
0.3A (69W) Standby

OPTIONAL PHONO INPUT
RCA Unbalanced

INPUT CAPACITANCE
100pF

ADJUSTABLE GAIN
50dB, 56dB, 60dB, 66dB

ADJUSTABLE LOAD
47k ohms, 470 ohms, 100 ohms, 47 ohms, 22 ohms

DIMENSIONS
Height: 170mm (7 1/2")
Width: 450mm (17 3/4")
Depth: 455mm (17 3/4")
Weight: 25kg (56lb)
