While the Kaitaki preamplifier mates aesthetically and musically with the Plinius P10 power amplifier this exciting preamplifier is the perfect partner for the Plinius SA103 power amplifier used either as a stereo amplifier or in a monoblock configuration.
Visible controls on the Kaitaki are the rotary volume knob and source selection buttons with all other functions driven from the distinctive Plinius remote control. LED indicators on the front panel display demonstrate the source selected and status of the mute, phase and HT bypass functions.
The Kaitaki will allow the connection of up to 5 source components including both balanced and single ended connection for CD. A processor loop allows integration with a home theatre system and output is available from RCA or XLR connectors. The optional adjustable phono stage model allows enjoyment of vinyl at a sophisticated level without the need to purchase a specialised phono preamplifier.

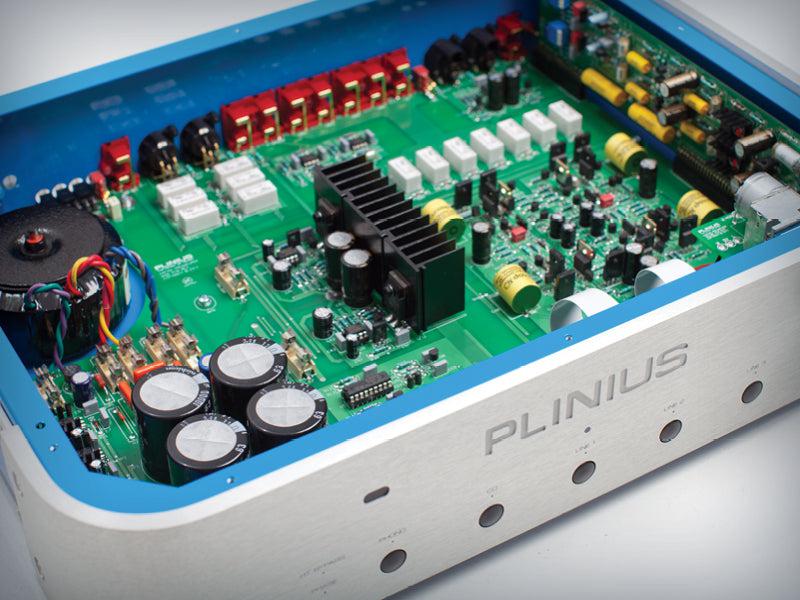

The electronics topography is derived in part from development work done on circuits for our later generation integrated amplifiers and source components, and a power supply with extremely low impedance allows the audio circuitry to deliver its best.
20Hz to 20kHz +/- 0.2dB
<0.05% THD at rated input level
PRE OUT MINIMUM RECOMMENDED LOAD
OUTPUT SOURCE IMPEDANCE
Typically 100 ohms
0.10A (23W) idle/standby
SIGNAL TO NOISE RATIO
-80dB at rated input level, A weighted
INPUT SENSITIVITY FOR RATED OUTPUT
125mV RMS Unbalanced Inputs
62mV RMS Balanced Inputs
RATED PRE OUT LEVEL
500mV RMS into 10k ohms or higher
LINE OUT LEVEL
190mV at 200 ohms
Line Ampilfier: 12dB
47k ohms, 470 ohms, 100 ohms, 47 ohms, 22 ohms
Height: 105mm (4")
Width: 450mm (17.5")
Depth: 400mm (15.75")
Weight: 9kg (20lbs)
Stereo preamplifier, optional phono stage with adjustable - Line
Stereo preamplifier, optional phono stage with adjustable - Phono
